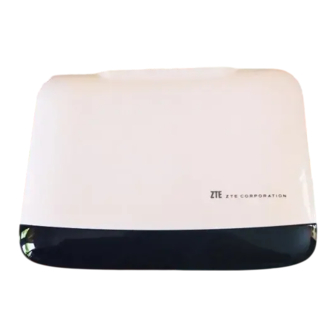

MF613 3G Wireless Router
Fixed Wireless Adapter

User Manual

ZTE CORPORATION
ZTE Plaza, Keji Road South,
Hi-Tech Industrial Park,
Nanshan District, Shenzhen,
P. R. China
518057
Tel: (86) 755 26779999
URL: http://www.zte.com.cn
E-mail: mobile@zte.com.cn

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MF613 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zte MF613

Summary of Contents for Zte MF613

  • Page 1: User Manual

    MF613 3G Wireless Router Fixed Wireless Adapter User Manual ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, P. R. China 518057 Tel: (86) 755 26779999 URL: http://www.zte.com.cn E-mail: mobile@zte.com.cn...
  • Page 2 ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice.

  • Page 3: Welcome

    Internet with LAN or WLAN. Notes: When you only buy the MF613 Fixed Wireless Adapter, if you want to enjoy the Voice and Internet service， you must prepare a USB modem which supports voice and internet service. To get the most from your router and to keep it in the best condition please read this manual carefully.

  • Page 5: Glossary

    Glossary 　 AC: Alternating Current • 　 APN: Access Point Name • 　 DC: Direct Current • 　 DHCP: Dynamic Host Control Protocol • 　 DNS: Domain Name System (or Service or Server) • 　 DoS: Denial of Service • 　...
  • Page 6 　 -PSK: Wi-Fi Protected Access–PreShared Key •...

  • Page 7: Table Of Contents

    Contents WELCOME .......................... 3 Glossary ..........................5 Contents ..........................7 General Information ......................8 Safety Precautions ......................8 Cleaning and Maintaining ....................8 Limited Warranty ......................8 Limitation of Liability ....................... 9 Emergency Call ......................... 9 Getting started ........................10 Parts Supplied .........................

  • Page 8: General Information

    Do not use your router in dangerous environments such as oil terminals or chemical factories where there • are explosive gases or explosive products being processed. Please use original accessories or accessories that are authorized by ZTE. Unauthorized accessories may • affect the router performance, damage the router or cause danger to you.

  • Page 9: Limitation Of Liability

    ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages resulting from or arising out of or in connection with using of this product, whether or not ZTE had been advised, knew or should have known of the possibility of such damages, including, but not limited to lost profits, interruption of business, cost of capital, cost of substitute facilities or product, or any downtime cost.

  • Page 10: Getting Started

    Parts Supplied Parts Quantity 3G Wireless Router *USB Modem External power adapter User manual Certificate of quality *In this manual, the USB Modem is produced by ZTE. Appearance LED Indicator Confidential and Proprietary Information of ZTE CORPORATION 10...

  • Page 11: Interface Description

    2. WPS: WPS button is used to start Wi-Fi Protected Setup authentication process. 3. PHONE: Standard RJ11 connector for Telephone. 4. LAN 1~ LAN 2: Ethernet connections to computer. 5. POWER Socket: Connection to the external power supply. Confidential and Proprietary Information of ZTE CORPORATION 11...

  • Page 12: Installation

    This section will show you how to install the hardware. Inserting the (U)SIM Card Insert the (U)SIM card into the modem(supplied by ZTE). 1. Take down the modem cap, and then the USB connector is visible. 2. Pull the plastic socket above the USB connector out.

  • Page 13: Connecting Phone

    2. Wait 1~2 minutes after turning the router on before you use the service. The RSSI & PWR indicator should be lit on. Notes: When the router is turned off, an incoming caller will hear the prompt like “The number you have dialed is currently unavailable.” Confidential and Proprietary Information of ZTE CORPORATION 13...

  • Page 14: Power Supply

    If the RSSI (Radio Signal Strength Indicator) LED is blinking constantly then try moving the modem to • another location. Please wait 1-2 minutes for the modem to initialize, attach to the network and obtain an IP address. • 14 Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 15: Voice Calls

    When the phone rings, pick up the handset to answer it. If the telephone has hands-free function you can answer the call by pressing the Hands-free button. Press the hands-free button again to end the call. Confidential and Proprietary Information of ZTE CORPORATION 15...

  • Page 16: Internet Access

    Login The router can be connected by RJ45 or by Wi-Fi (the SSID is “ZTE Wireless Network”). By either connection mode, you should set to obtain an IP address automatically in the attribution setting of Internet protocol(TCP/IP).

  • Page 17: Quick Setup

    The Quick Setup helps you to quickly set the basic settings of your router. The following sections describe the steps and parameters of Quick Setup. 1. Read the guide carefully, and then click Next. Confidential and Proprietary Information of ZTE CORPORATION 17...
  • Page 18 MF613 3G Wireless Router User Manual 2. Set the PPP Profile Configuration and then click Next. 3. Set the PPP Authentication and then chick Next. 4. Set the SSID Configuration and then click Next. 18 Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 19 5. Set the Security Configuration and then click Next. 6. Show all the configurations and then click Finish to complete. If you want to modify, please click Back. (The figure is only for your reference as shown below). Confidential and Proprietary Information of ZTE CORPORATION 19...

  • Page 20: Wan Connection

    Click Apply to confirm your configuration, and then the PPP connection status will be shown in the figure. 3G Settings Wireless Info Select 3G Settings > Wireless Info, the 3G wireless information is shown in the following figure: 20 Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 21 Only GSM: Router searches for GSM network only. • Click Apply to confirm your configuration. APN Setting Select 3G Settings > APN Setting, the APN parameters are shown in the following figure: Confidential and Proprietary Information of ZTE CORPORATION 21...

  • Page 22: Router

    2. Input those parameters as shown above. Notes: If you have any problem, please contact with your service provider. 3. Click Save to save this new profile. 4. Click Set default to set this profile as default. Router 22 Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 23: Wi-Fi Settings

    Select Router > DHCP Clients, All of the DHCP clients information will be shown in the following figure. Wi-Fi Settings Station list Select Wi-Fi Setting > Station List, All of the wireless network stations information will be shown in the Confidential and Proprietary Information of ZTE CORPORATION 23...
  • Page 24 The Wireless Distribution System allows the router to communicate with other APs wirelessly. To make it work, please make sure that the router and these APs are in the same channel with the same SSID. 24 Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 25 Unit, and clear by selecting Disable. Auto Block ACK: Block ACK(Acknowledge Number) or not during data transferring. • Decline BA Request: Reject peer BA-Request or not. • Click Apply to confirm your configuration. Advanced Confidential and Proprietary Information of ZTE CORPORATION 25...
  • Page 26 WMM Capable: Enable Wi-Fi Multimedia(WMM) or not. • APSD Capable: Enable APSD or not. • Click Apply to confirm your configuration. Security Select Wi-Fi Setting > Security, the Security parameters and Wireless MAC Filtering parameters are 26 Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 27 WPA-PSK/WPA2-PSK:Apply both the WPS-PSK and WPA2-PSK scheme. • If the Authentication type is Shared or WEPAUTO, or you select Open and set the Encrypt Type as WEP, the WEP parameters are shown in the following figure. Confidential and Proprietary Information of ZTE CORPORATION 27...
  • Page 28 Select Enable , and then click Apply to configure the details. The following figure shows you the current configuration of WPS. Click Reset OOB on this page to restore the default value. 28 Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 29: Firewall

    WPS Status: Show the authentication process of WPS • Firewall MAC/IP/Port Filtering Select Firewall > Mac/Ip/Port Filtering, the Mac/IP/Port Filtering is shown in the following figure: If you select Enable, the filter settings will appear: Confidential and Proprietary Information of ZTE CORPORATION 29...
  • Page 30 Action: Set how to handle the packet if it matches with the rule. • Comment: type comment for the filter settings. • Click Apply to confirm your configuration. The following figure shows you the current MAC/IP/Port filtering rules in system. URL Filtering 30 Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 31 Current Webs URL Filters area. Port Forwarding Select Firewall > Port Forwarding, the port forwarding is shown in the following figure: If you select Enable, the Virtual Server Settings will appear: Confidential and Proprietary Information of ZTE CORPORATION 31...

  • Page 32: Advanced

    Select Firewall > System Security, the system security setting is shown in the following figure: Allow or Deny the remote management function and Enable or Disable ping from WAN filter on requirement, and then click Apply to confirm your configuration.. Advanced Status 32 Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 33 To set new account, type new account and password, and then click Apply to confirm your configuration. Notes: If you change the Account or Password, please make sure that you can remember the new Account or Password. Upgrade Confidential and Proprietary Information of ZTE CORPORATION 33...
  • Page 34 Shutdown Select Advanced > Shutdown, click Shutdown to turn the router off. PIN Manage Select Advanced > PIN Manage, the PIN manage is shown in the following figure: 34 Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 35: Logout

    2. Click OK to log out . Disconnecting from the Internet 1. Select Disconnect Internet from WAN Connection page, if you want to terminate your Internet connection. 2. click Apply to confirm. Confidential and Proprietary Information of ZTE CORPORATION 35...
  • Page 36 MF613 3G Wireless Router User Manual Tips: Turn off the router can also terminate Internet connection. 36 Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 37: Troubleshooting

    Others Symptoms Possible Problems/ Solutions The RSSI signal indicator is always blinking or does not This indicates poor reception. Try moving the router to light. another location near the window. Confidential and Proprietary Information of ZTE CORPORATION 37...

  • Page 38: Technical Parameters

    Output: +12V (DC), 1.2A Dimensions (W×H×D): 163mm×114mm×29mm • ZTE USB Modem (Inner modem) Network: • HSUPA/HSDPA/UMTS/EDGE/GPRS/GSM Data Service: • HSUPA 2Mbps UL HSDPA 7.2Mbps DL MicroSD Slot: up to 4GB • Dimensions (H×W×D): 69mm×26mm×12mm • Confidential and Proprietary Information of ZTE CORPORATION 38...
