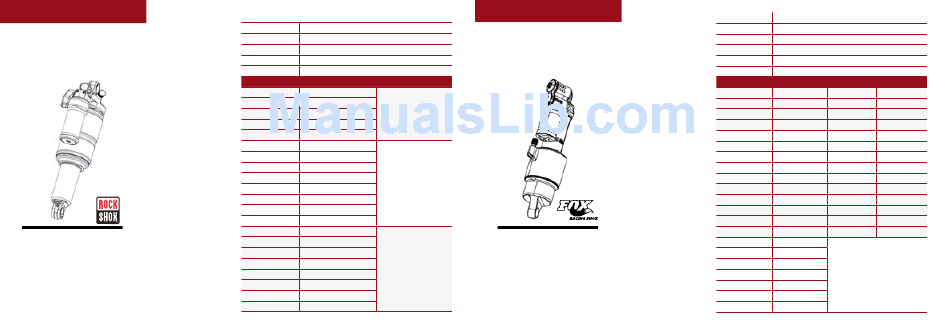

Intense Cycles TRACER CARBON User Manual page 9

shock setup
rock shox monarch Plus r / rt3
216 x 63.5mm
set up and tune
proper set up and tuning can
vary from shock to shock. Please
consult the rockshox manual
included with your bike for complete
information about set up, tuning
and general maintenance or visit
www.sram.com/rockshox/products
1 6 / / t r a c e r c a r b o n u s e r
Travel 165mm
Shock Stoke 63 mm
Shock Sag
30% when sitting on the bike
Fork Sag 15-25% when sitting on the bike
SHOCK: Rock Shox Monarch Plus R
SHOCK: Rock Shox Monarch Plus RT3
RIDER WEIGHT(LBS/KGS) SPRING (PSI)
100 lbs/ 45 kgs 100
110 lbs/ 50 kgs 110
120 lbs/ 54 kgs 120
130 lbs/ 59 kgs 130
140 lbs/ 63.5 kgs 140
150 LBS / 68 KGS
150
160 LBS / 73 KGS 160
170 LBS / 77 KGS 170
180 LBS / 82 KGS
180
190 LBS / 86 KGS 190
200 LBS / 91 KGS 200
210 LBS / 95 KGS 210
220 LBS / 100 KGS 220
230 LBS / 104 KGS 230
240 LBS / 109 KGS 240
250 LBS / 113 KGS
250
260 LBS / 118 KGS 260
270 LBS / 122 KGS 270
280 LBS / 127 KGS
280
290 LBS / 131.5 KGS 290
300 LBS / 136 KGS 300
m a n u a l
shock setup
FOX FLOAT x2 performance elite / x2
216 x 63.5mm
REBOUND (clicks out)
7-6
6-5
set up and tune
proper set up and tuning can vary
from shock to shock. Please
consult the Fox manual included
4-3
with your bike for complete
information about set up, tuning
and general maintenance or visit
www.foxracingshox.com
Travel 165mm
Shock Stoke 63mm
Shock Sag 30% when sitting on the bike
Fork Sag 15-25% when sitting on the bike
SHOCK: FOX Float X2 Performance Elite
SHOCK: FOX Factory Float X2
RIDER WEIGHT(LBS/KGS) SPRING (PSI)
100 lbs/ 45 kgs 120 LSC 20
110 lbs/ 50 kgs 130 HSC 18
120 lbs/ 54 kgs 140 LSR 17
130 lbs/ 59 kgs
150 HSR 15
140 lbs/ 63.5 kgs 160 LSC 18
150 LBS / 68 KGS 170 HSC 16
160 LBS / 73 KGS
180 LSR 14
170 LBS / 77 KGS 190 HSR 12
180 LBS / 82 KGS 200
190 LBS / 86 KGS 210 LSC 17
200 LBS / 91 KGS 220 HSC 14
210 LBS / 95 KGS 230 LSR 13
220 LBS / 100 KGS 240 HSR 10
230 LBS / 104 KGS 250
240 LBS / 109 KGS n/a
250 LBS / 113 KGS n/a
260 LBS / 118 KGS
n/a
270 LBS / 122 KGS n/a n/a
280 LBS / 127 KGS n/a
290 LBS / 131.5 KGS n/a
300 LBS / 136 KGS n/a
I N T E N S E C Y C L E S / / 1 7
