The operating states of the vision system, the IO-Link master and the LAN and fieldbus interface
are displayed using LEDs. The display elements are distributed across the front and the under-
side of the SMARTCAMERA.
Displays on the front
1
Power LED
2
Signal LED

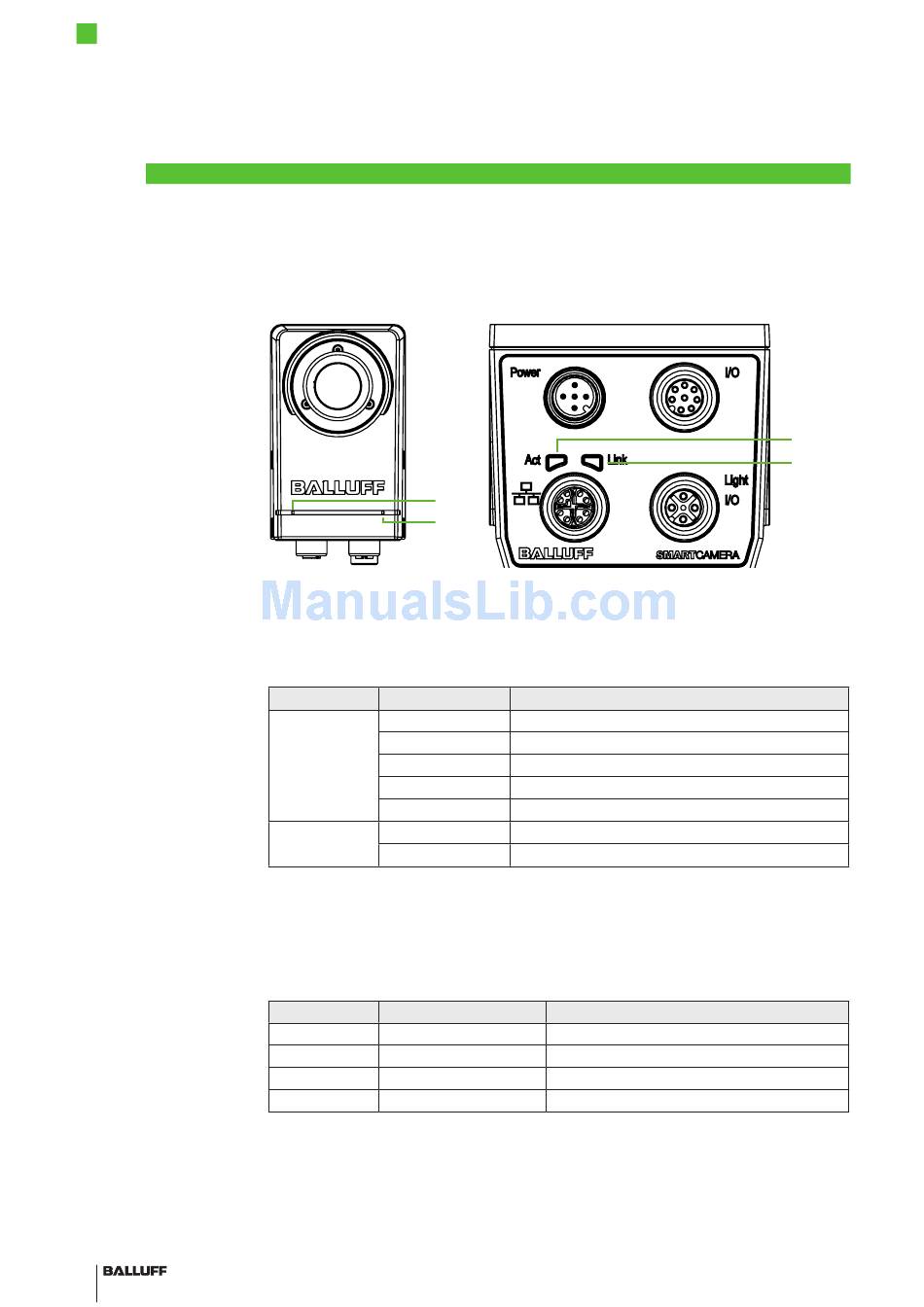

Figure 17: Display elements on the front and at the plug connectors
Displays on the front
LED Display
Power LED Off
Illuminating green
Flashing green
Illuminating red
Flashing red
Signal LED Off
Yellow, lit
The signal LED can indicate the status of any I/O signal in the area of the image analysis. The
configuration of this function is done via the BVS Cockpit web interface. (see chapter "Digital I/O
Interface" on page 26)
Displays at the plug connectors
LAN
LED Display
LAN Link Off
Green
LAN Act Off
Yellow, flashing
The outside of the camera can be cleaned with a soft cloth. Persistent dirt can be removed with
a cloth that is first moistened with a soap solution and wrung out. After wiping off the dirt spots,
wipe the camera with a dry cloth.
Displays at the plug connectors
1
2
3
LAN Act
4
LAN Link
Function
No supply voltage
Inspection is running or waiting for a trigger
Inspection stopped or in configuration mode
Fault
Firmware update active
Signal = 0
Signal = 1
Function
No LAN connection
LAN connection established
No data transfer
Data transmission
