BVS SC-_1280Z00-07-0_0
SMARTCAMERA IO
3
Product Description
3.3

Assembly

10 english
The camera features 12 threads for installation at the location of use. Four threads each at the
rear, the left and the right. This ensures a secure and reliable mounting. The following drawings
describe the exact position of all mounting holes.
Individual threads are also used for fastening optional accessories (see chapter

7.2 "Accessories").

54,8
34,3
18
23,3 17

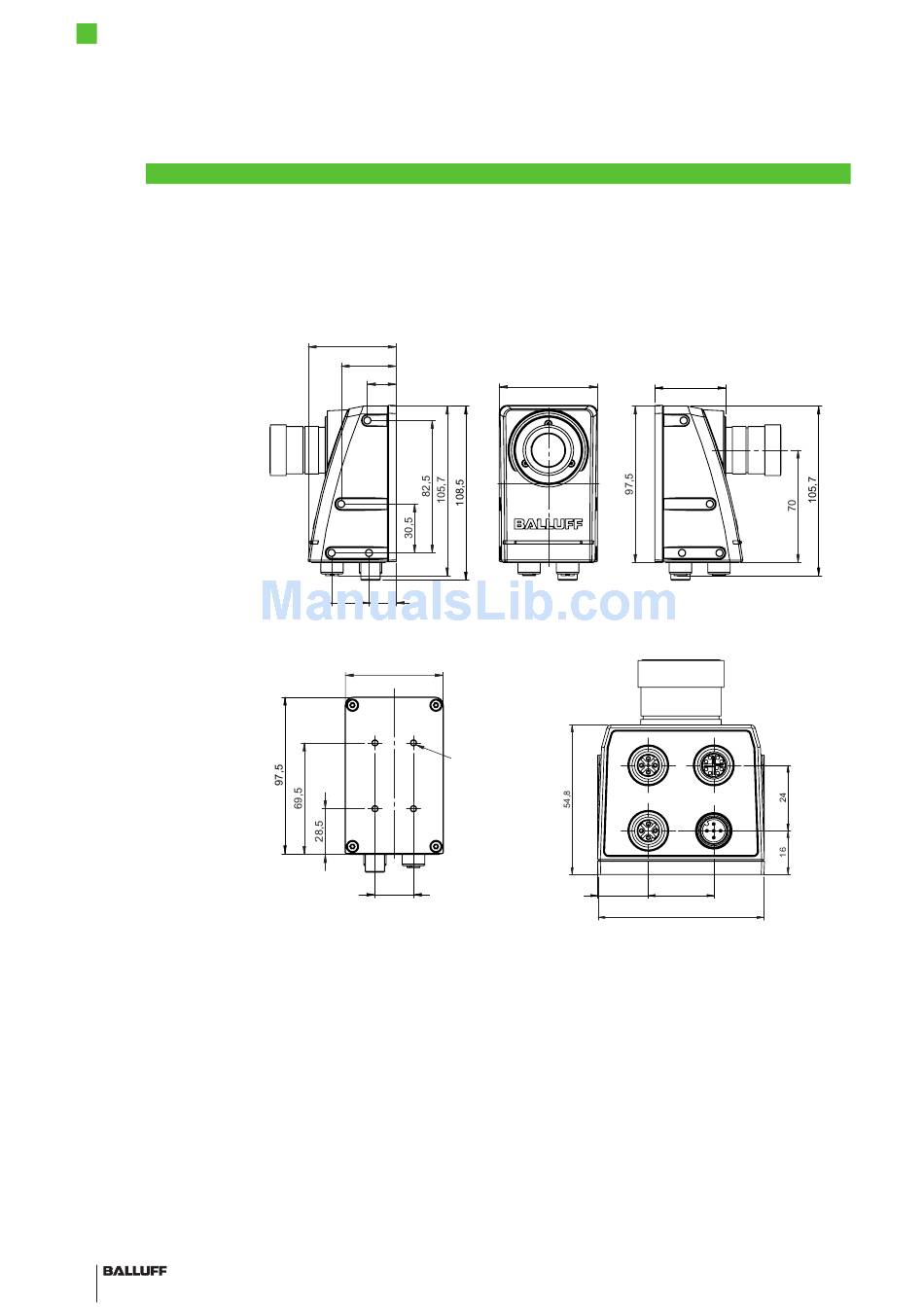

Figure 4: Mechanical connection (dimensions in mm)
60,9
24
Figure 5: Mechanical connection at rear/bottom (dimensions in mm)
The screw connections at the rear plate have an M4 thread. The maximum thread length is 5
mm. The maximum tightening torque is 2 Nm.
The lateral screw connections have an M5 thread. The maximum thread length is 5 mm. The
maximum tightening torque is 2.6 Nm.
61
4 x M4
18,6
44,3
24
60,9
