Connections And Pin Assignment - Balluff SMARTCAMERA IO User Manual

BVS SC-_1280Z00-07-0_0
SMARTCAMERA IO
3
Product Description
3.5 Connections
and Pin
Assignment
Power
12 english
The product variants differ by the existing interfaces.
I/O variant
1
2
3
4

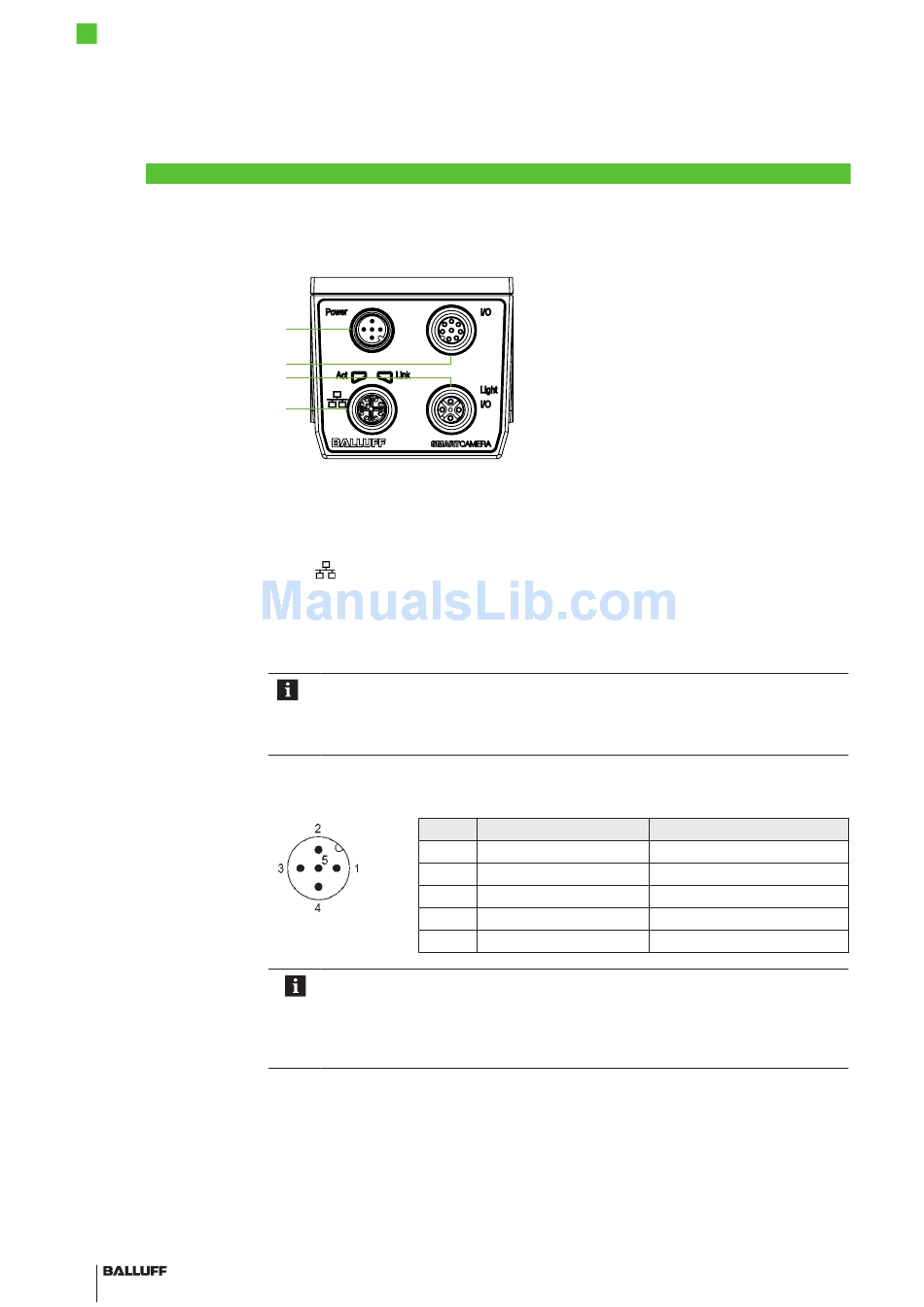

Figure 6: Connections and pin assignment of I/O variant
Connection Function
Power Voltage supply of SMARTCAMERA, two freely configurable I/O signals are also
available.
LAN Integrates the SMARTCAMERA in a local network.
I/O To connect sensors/actuator, 6 galvanically isolated I/O signals are available
I/O Light 2 I/O signals and supply voltage output, e.g. for an external lighting
Information
In order to ensure enclosure rating IP67, unused I/O ports must be closed with cover
caps.
Connected accessories may be operated only with NEC Class 2.
5-pin M12 plug, A-coded
Pin
1
2
3
4
5
Information
The digital sensor inputs correspond to the guideline concerning inputs,
EN 61131-2,Type 3
The maximum load on any output is 100 mA. The total current of the module must
not exceed 4 A per pin.
1
Power
2 I/O
3 I/O Light
4 LAN
Description Function
+24 V Supply voltage
DC
I/O 0 Input/output
GND Ground
I/O 1 Input/output
n. c. Not connected
