Monitor/Defibrillator User Guide for Mobile v4
Last updated: Apr 2016
Purpose
This user guide is designed to provide HealthEMS customers with instructions on how to import ECG
data into HealthEMS Mobile from a monitor/defibrillator. Please refer to the
HealthEMS ECG/EKG
for an up-to-date list of requirements and support materials.
Guide
This document provides links to vendor instructions on how to setup data transmission connections.
Instructions on how to program and configure the monitor/defibrillator for transmitting the case file are
not included in this document. Customers should consult with their monitor/defibrillator vendor and
complete the data transmission setup process prior to using this document for importing the data into
HealthEMS Mobile.
Philips HeartStart MRx

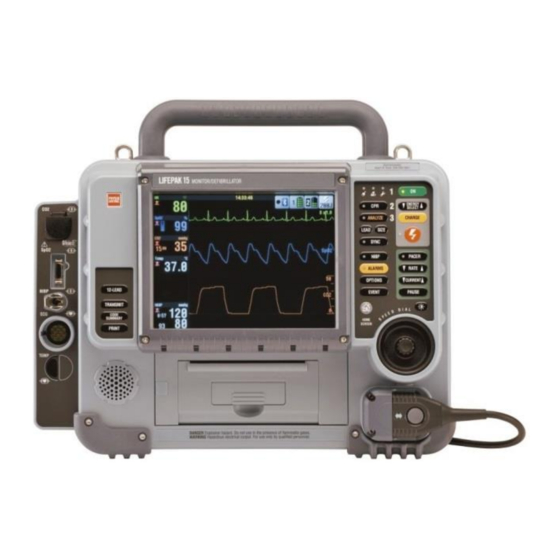

Physio-Control LIFEPAK 15
ZOLL X-Series for EMS
©2016 Physio-Control, Inc. Redmond, WA 98052. All rights reserved. All names herein are trademarks or registered trademarks of their respective owners.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HeartStart MRx and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Physio Control HeartStart MRx

Summary of Contents for Physio Control HeartStart MRx

  • Page 1 Customers should consult with their monitor/defibrillator vendor and complete the data transmission setup process prior to using this document for importing the data into HealthEMS Mobile. Philips HeartStart MRx Physio-Control LIFEPAK 15 ZOLL X-Series for EMS...

  • Page 2: Table Of Contents

    Contents Purpose ................................. 0 Philips ..............................2 Transferring Data via Bluetooth / Wireless Link ....................2 Importing Data into HealthEMS Mobile ......................3 Physio ..............................8 Transferring Data via Bluetooth / Cable ......................8 ™ Installing CODE-STAT 9 SDK ........................9 ®...

  • Page 3: Philips

    Philips Transferring Data via Bluetooth / Wireless Link to open the PDF of Phillip’s instructions for the HeartStart MRx in your browser window. Click HERE Navigate to Chapter 19: Data Transmissions, page 250 of the PDF to find the instructions on how to set up a Bluetooth connection.

  • Page 4: Importing Data Into Healthems Mobile

    Importing Data into HealthEMS Mobile To upload an ECG file select the attachment icon while editing an ePCR. Instructions Screen View Select "EKG" for the attachment type. (this choice may have been set to automatically be selected) Page 3...
  • Page 5 Instructions Screen View The Mobile Attachment window will default to showing all ECG attachments from the last 3 hours. Change this to the appropriate setting to be able to see the ECG data to be imported. Page 4...
  • Page 6 Instructions Screen View 3. Double click the desired ECG file or select the row and click the green plus icon. Page 5...
  • Page 7 Instructions Screen View Selecting the tabs across the top will display details of the attached ECG data file. After reviewing, click “OK” to continue. Page 6...
  • Page 8 Instructions Screen View The Mobile Attachment Window will display your ECG data file attachments. Click “OK” to continue. The available data will populate into the Vitals and Flowchart sections. Page 7...

  • Page 9: Physio

    Physio Transferring Data via Bluetooth / Cable For instructions on how to set up a Bluetooth connection between your device and LIFEPAK 15, as well as instructions on how to use a direct connection (Ositech cable), proceed to section 8 page 165 of the instructions linked HERE.

  • Page 10: Installing Code-Stat ™ 9 Sdk

    ™ Installing CODE-STAT 9 SDK ™ This section will lay out the steps for installing the CODE-STAT 9 SDK on your device. Instructions Screen View Login to HealthEMS and navigate to the Knowledgebase by clicking the icon Search for “ECG/EKG” Open the "HealthEMS ECG/EKG Guide"...
  • Page 11 Instructions Screen View Select the desired destination to save the file and click "Save" When the download completes… Select "Run" on the security warning popup Page 10...
  • Page 12 Instructions Screen View Select "Install" on the Mobile EKG Interface Setup popup Once it is finished click "Finish" Page 11...

  • Page 13: Configuring Lifenet System Device Communications

    ® Configuring LIFENET System Device Communications ® This section will lay out the steps for configuring LIFENET on your device. Instructions Screen View Open LIFENET Device Communications Open the LIFENET System Configuration Window by navigating to Control → System Configuration Select the "Device Data Reception"...
  • Page 14 Instructions Screen View Select the appropriate port(s) from the "Available" section and click the ">>" to move them to the "Use" section. The USB cable connection will typically use COM50 by default. Highlight LP15/LP12 and click the "OK" button to save this change The following message will appear:...
  • Page 15 Instructions Screen View Then, go to the LIFENET Device Communications dialog box and navigate to Control → LIFENET Communications and select "Disable" The LIFENET Communications will then indicate that it is disabled Navigate to Control → LIFENET Communications and select "Enable" Page 14...
  • Page 16 Instructions Screen View Once enabled, close the LIFENET Device Communications dialog box by navigating to File → Exit. On the popup window click "OK" Open LIFENET Case View and click "Configure…" *IMPORTANT: do not change the Serial Number or the Feature Key on the Features tab* Page 15...
  • Page 17 Instructions Screen View Select the "General" tab and enter your agency's name in the Organization field and then click the "OK" button Click the "Exit" button to finish. Congratulations! The Physio-Control Software has been successfully installed and configured for use ®...

  • Page 18: Importing Data Into Healthems Mobile

    Importing Data into HealthEMS Mobile ™ This section will lay out the steps for importing your ECG data into HealthEMS Mobile Instructions Screen View Select “EKG” for the attachment type. (this choice may have been set to automatically be selected) Page 17...
  • Page 19 Instructions Screen View The Mobile Attachment window will default to showing all ECG attachments from the last 3 hours. Change this to the appropriate setting to be able to see the ECG data to be imported. Page 18...
  • Page 20 Instructions Screen View Double click the desired ECG file or select the row and click the green plus icon. Selecting the tabs across the top will display details of the attached ECG data file. After reviewing, click “OK” to continue. Page 19...
  • Page 21 Instructions Screen View The Mobile Attachment Window will display your ECG data file attachments. Click “OK” to continue. The available data will populate into the Vitals and Flowchart sections. Page 20...

  • Page 22: Zoll

    ZOLL to open ZOLL’s product webpage in your browser. Under the Product drop down list Click HERE select “X Series for EMS”; then, select your Language. Under Search Results click on the “X Series Operators Guide” link to download the PDF file. Once the file has been downloaded, open it and navigate to page 250 “Creating a Temporary Access Point Profile”...
  • Page 23 Instructions Screen View Connect a Windows mobile device that has HealthEMS Mobile installed to the same WiFi network. From the same device, open the ZOLL Data Retriever software and select “X Series Case Service” from the drop down list. Page 22...
  • Page 24 Instructions Screen View Then, open Options -> Data Retriever. Enter: C:\Sansio\HealthEMS\ZOLL\LDS as the Destination Folder and press “OK.” Page 23...
  • Page 25 Instructions Screen View Then select Upload. Select Discover. NOTE: If no device is found, check the Wi-Fi network and make certain both the X Series and the Windows device are connected. Page 24...
  • Page 26 Instructions Screen View Select the ZOLL X Series monitor that is connected to the Wi-Fi network, and select “OK”. The data will then transmit. The process should not take longer than a minute or so, unless you are downloading multiple instances.
  • Page 27 Instructions Screen View Once the transfer is complete select “OK.” continue to “Importing Data Finally, into HealthEMS Mobile” instructions. Page 26...

  • Page 28: Transferring Data Via Usb

    Transferring Data via USB An alternative method to transfer data is to use a thumb drive. to open ZOLL’s product webpage in your browser. Under the Product drop down list Click HERE select “X Series for EMS”; then, select your Language. Under Search Results click on the “X Series Operators Guide”...
  • Page 29 Instructions Screen View Enter: C:\Sansio\HealthEMS\ZOLL\LDS as the Destination Folder and press “OK.” Be sure that USB Drive has been chosen and select Upload. Page 28...
  • Page 30 Instructions Screen View Select the USB drive from the drop down list and select “OK.” Once the transfer is complete select “OK.” Page 29...
  • Page 31 Instructions Screen View Select “Yes” to erase the case files from the USB thumb drive. continue to “Importing Data Finally, into HealthEMS Mobile” instructions. Page 30...

  • Page 32: Transferring Data Via Bluetooth

    Transferring Data via Bluetooth Another alternative method to transfer data is to use a Bluetooth connection. to open ZOLL’s product webpage in your browser. Under the Product drop down list Click HERE select “X Series for EMS”; then, select your Language. Under Search Results click on the “X Series Operators Guide”...

  • Page 33: Importing Data Into Healthems Mobile

    Importing Data into HealthEMS Mobile To upload an ECG file select the attachment icon while editing an ePCR. Instructions Screen View Select "EKG" for the attachment type. (this choice may have been set to automatically be selected) Page 32...
  • Page 34 Instructions Screen View The Mobile Attachment window will default to showing all ECG attachments from the last 3 hours. Change this to the appropriate setting to be able to see the ECG data to be imported. Page 33...
  • Page 35 Instructions Screen View Double click the desired ECG file or select the row and click the green plus icon. Selecting the tabs across the top will display details of the attached ECG data file. After reviewing, click “OK” to continue. Page 34...
  • Page 36 Instructions Screen View The Mobile Attachment Window will display your ECG data file attachments. Click “OK” to continue. The available data will populate into the Vitals and Flowchart sections. Page 35...
