Note
First press the button on the upper side of lens mount, and then rotate the lens anticlockwise to
dismantle the lens.

When the lens mount is screw-threaded, different types of lens have different installation
modes, please select according to the actual situation.

Install auto aperture lens
1. Dismantle the protection cover on the device, align the lens with the lens mounting
location of the device, rotate the lens clockwise till it is secured and installed properly.
2. Insert the plug of lens cable into the auto aperture lens connector of the device side
panel.

Install manual aperture lens
1. Dismantle the protection cover on the device.
2. Install the C/CS adapter onto the device, rotate it clockwise to the end and make it
closely adhere to the focusing ring on the device. (Only type C lens needs to install
adapter ring).
3. Align C mount lens with the lens mounting location of C/CS adapter ring (CS mount lens
aims at the lens mounting location on the device focusing ring), rotate the lens clockwise
till it is secured and properly installed.

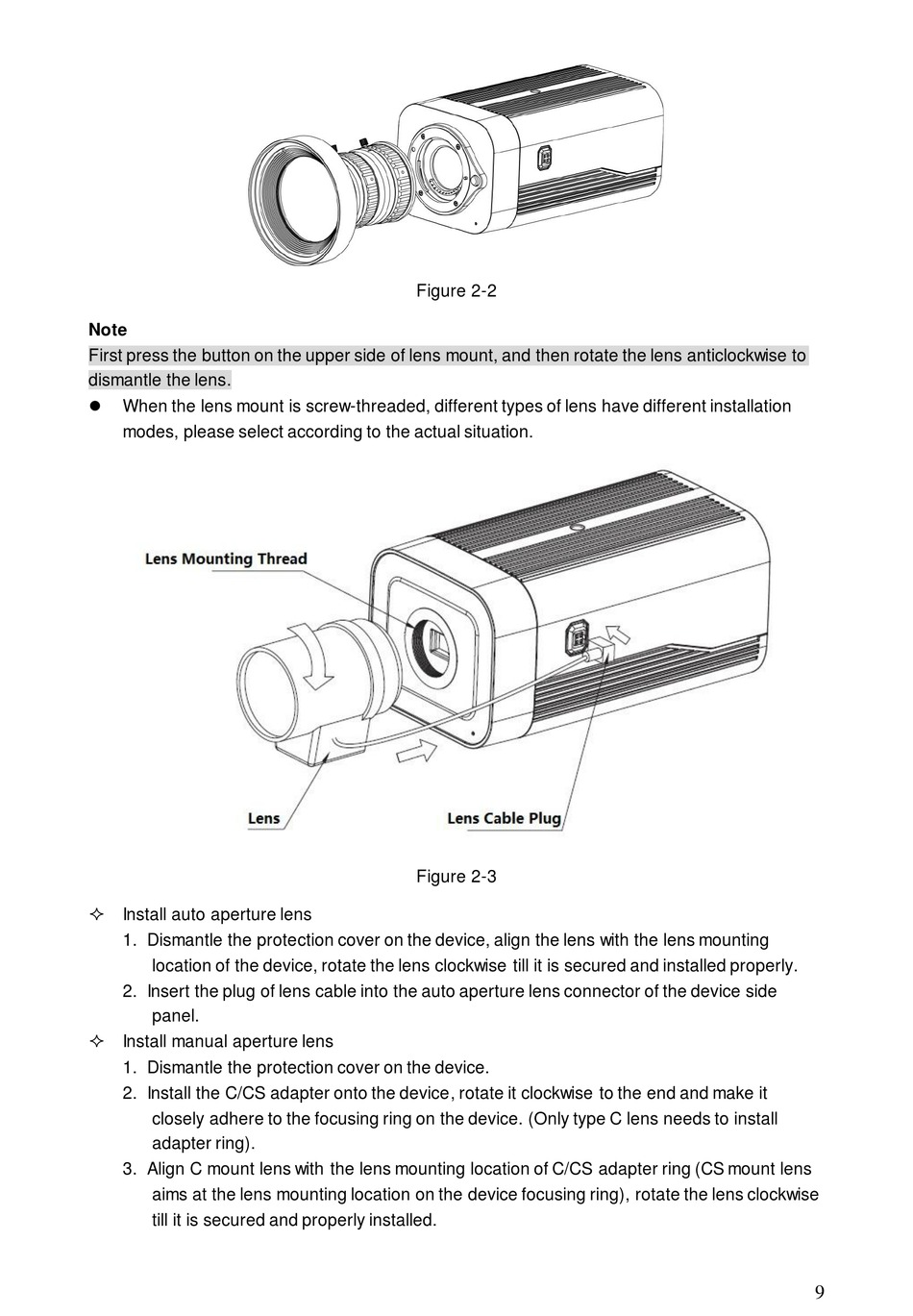

Figure 2-2
Figure 2-3
