AvMap EKPV User Manual page 25

Aeronautical Navigator
interface to USB, COM A or COM B.
When connected to the USB port the EKP
V USB-Serial converter cable needs to be
used.
For serial connection instructions through
the Cockpit Docking Station see the EKP V
Cockpit Docking Station Installation Guide
included in the EKP V Docking Station box
(also available at www.avmap.it) and the
serial connection specification of the ZAON
XRX traffic receiver (ZOAN XRX Manual).
The Range option allows you to select the
horizontal detection range. The available
option range are 6 NM radius, 3 NM radius
and 1,5 NM radius.
To increase accuracy, different airframe
types have different characteristics that
AvMap EKPV
effect the antenna reception pattern of the
ZOAN XRX.
Select the Aircraft type of your aircraft to get
the best performance of ZOAN XRX. For
more information on Aircraft Type set-up
check the ZOAN XRX Manual.
Note:
Select "Profile 1" on the ZAON XRX "COM"
menu to enable communication with the
EKP V.

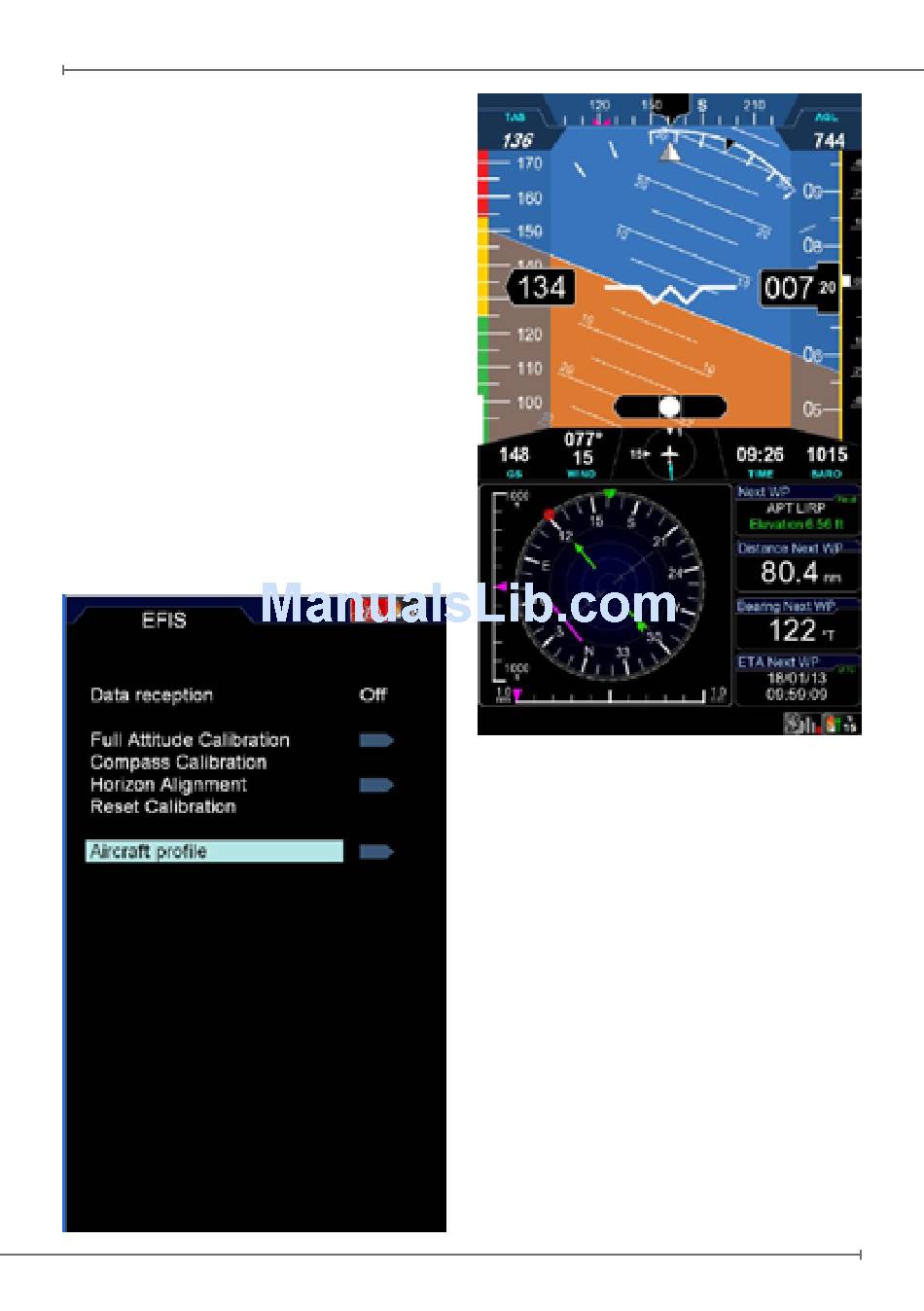

EFIS
Connecting AvMAP A2 ADAHRS (Air Data,
Attitude and Heading Reference System),
EKPV turns into an EFIS.
The A2 connects to the docking station via
USB and provides the user with:
User Manual - 25
