Aeronautical Navigator
Docking Station Installation Guide included
in the EKP V Docking Station box and
available at www.avmap.it.
Autopilot
Most third-party autopilots common used in
aviation are compatible with EKP V. For a
compatible list of third-party autopilots visit
www.avmap.it.
NMEA output

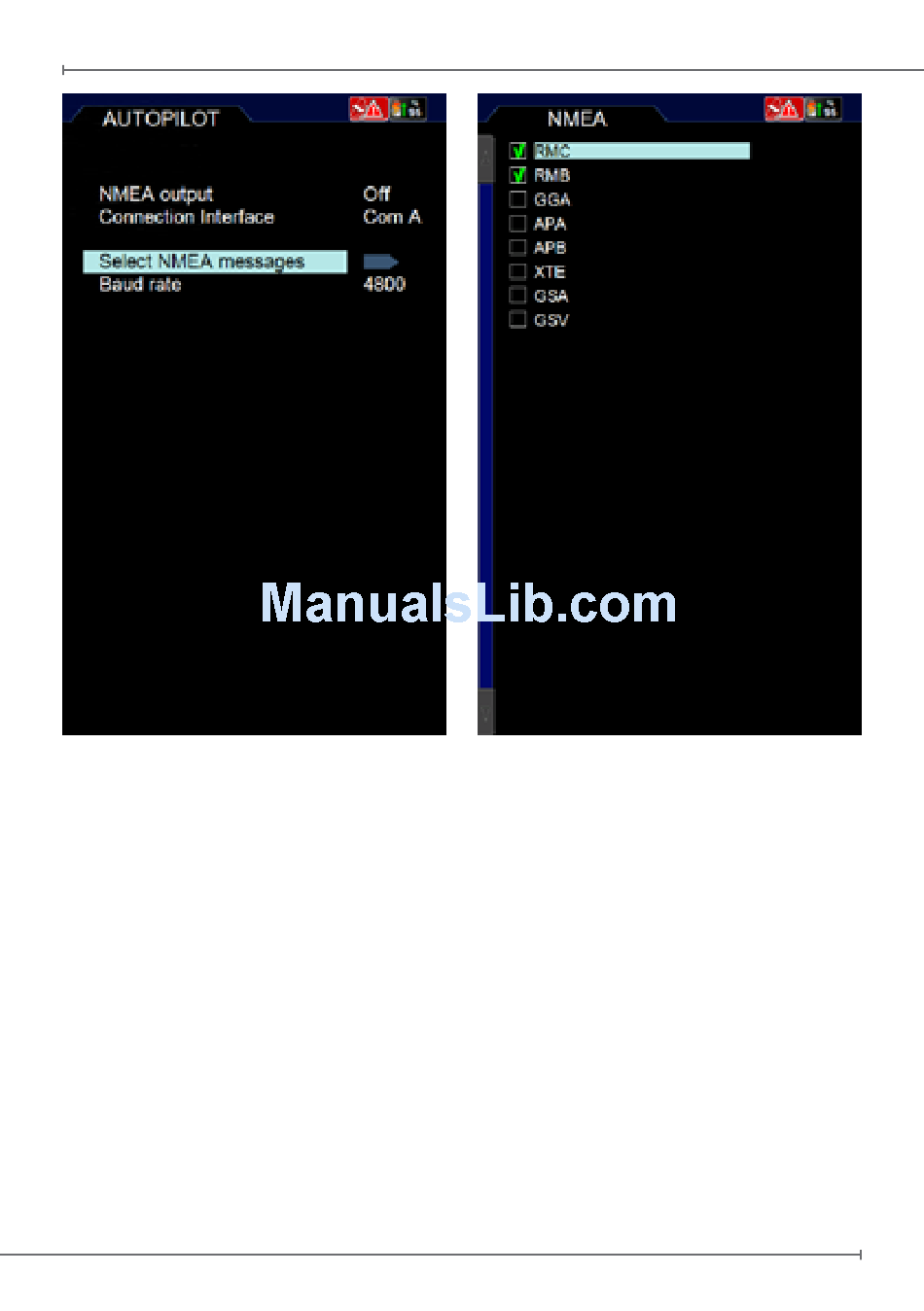

To enable autopilot communication with
the EKP V activate the communication of
information in the TOOLS Menu by selecting
Autopilot and turning on the NMEA output.
Connection Interface
The autopilot can be connected to COM
A, COM B of the Cockpit Docking Station
AvMap EKPV
through serial connection. When connected
to the USB port the EKP V USB-Serial
converter cable needs to be used.
For connection instructions through the
Cockpit Docking Station see the EKP V
Cockpit Docking Station Installation Guide
included in the EKP V Docking Station box
and available at www.avmap.it.
Select NMEA Messages
Select the NMEA message to communicate
with the autopilot. See appendix A for a
description of the NMEA messages.
Baudrate
Select the Baudrate conform the requested
setup of the external device.
User Manual - 23
