Push ESC to return to the Approach Plates
list in the Airport database page.

13. EKP V Simulator

It is possible to setup a flight simulation of
a route or a flight plan, selecting speed and
other parameters, even if the GPS signal is
not available.
To start a simulation, access to the Main
Menu and select the Navigation Setup sub-
menu. Using the joystick move to Simulator
item and press ENTER. A new window will
appear where Simulation can be activated
and some parameters modified. Press
ENTER on Simulation and modify from
Off to On. Then press ESC to go back to
22 - User Manual
Aeronautical Navigator
Navigation Setup menu or MAP to move
directly to the map.

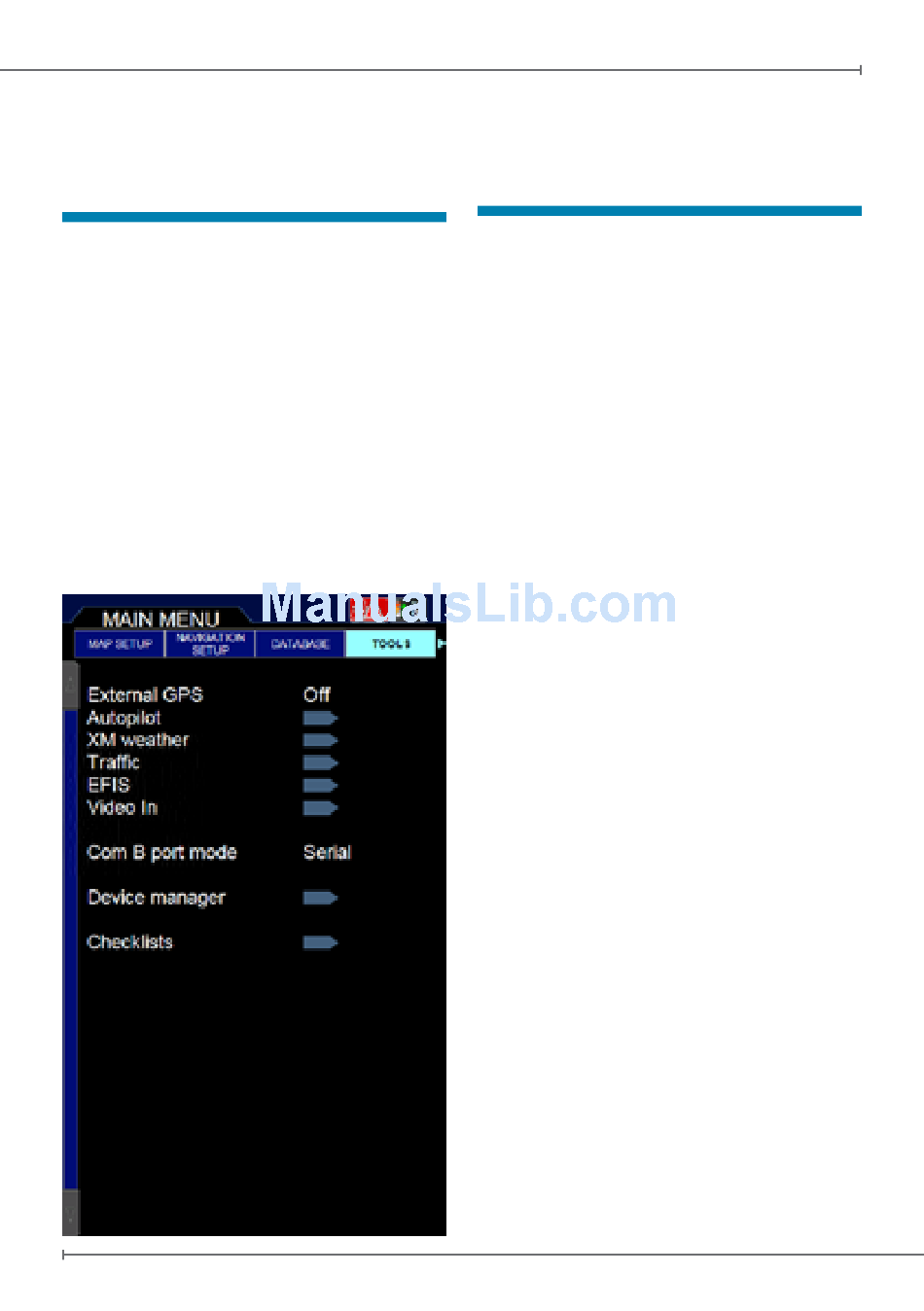

14. Tools

In the Tools menu the connection setup of
external devices to the EKP V are managed,
like:
- External GPS
- Autopilot
- XM weather
- Traffic
- EFIS
- Video In
- Com B port mode
EKP V has one USB input connection on
the cigarette lighter power cable to connect
one external device. When used with the
Cockpit Docking Station, it is possible to
connect several external devices to the EKP
V through the Cockpit Docking Station. The
Cockpit Docking Station has 2 serial input
(COM A and COM B) and 4 USB input. For
more details on the Cockpit Docking Station
visit www.avmap.it.
For each external device the connection
interface needs to be confirmed in the
dedicated tools menu selecting COM A,
COM B or USB.
External GPS
When installed in the Cockpit Panel of the
aircraft it is recommended to use the EKP V
external GPS antenna (included in the box
content of the Cockpit Docking Station and
available as additional accessory) with the
EKP V to get a good GPS reception. The
EKP V external GPS antenna needs to be
connected to the USB port on the Cockpit
Docking Station.
For connection instructions see the EKP V
