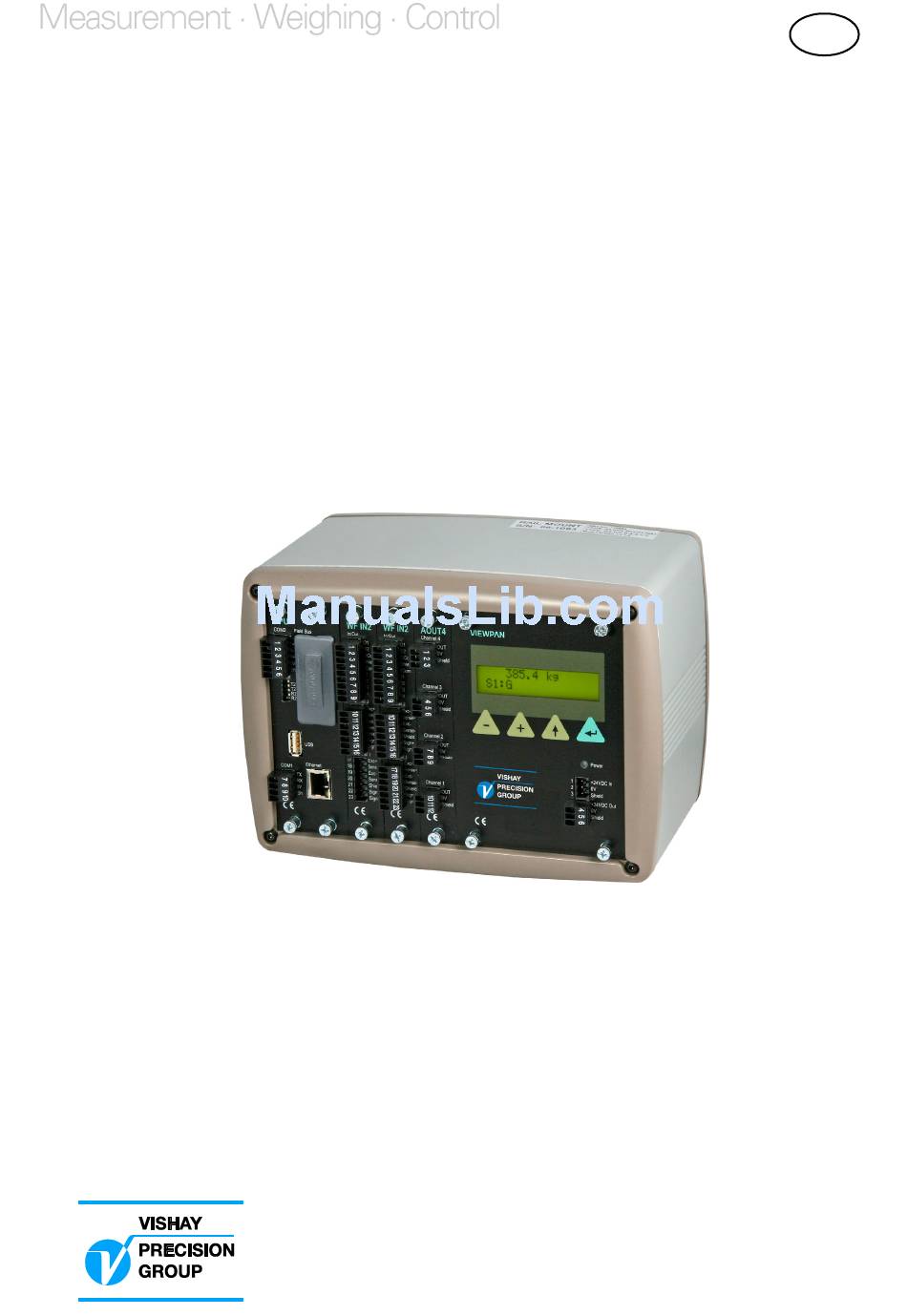

  • Page 1 G4 Multi Channel Weighing Instrument Program version 1.5.0.0 Operating instructions, Quick installation RM type...

  • Page 3: Table Of Contents

    G4 Multi Channel Weighing Instrument Contents Introduction General ............. 1 Power supply ............. 1 Start-up ............. 2 Maintenance ............. 2 Safety information ..........2 Service panel General ..............3 Display ...............3 Additional functions ..........4 Operation Zero indication and zero adjustment ....5 Gross weight and net weight ......5...
  • Page 4 Operating instructions, Quick installation PRECAUTIONS READ this manual BEFORE operating or servicing this instrument. FOLLOW these instructions carefully. SAVE this manual for future reference. WARNING Only permit qualified personnel to install and service this instrument. Exercise care when making checks, tests and adjustments that must be made with power on.

  • Page 5: General

    G4, which makes it easy to integrate the instrument into industrial processes. G4, type RM, is easily mounted on a DIN rail. All connections and the service panel are accessible from the front end. By a LCD-display and four function keys at the service panel, weight values are presented and parameter values can be viewed and edited.

  • Page 6: Start-Up

    Operating instructions, Quick installation Start-up As soon as power is connected to the instrument, it will display 'Vishay' during a start-up period, then the text ‘Start up, please wait’ is displayed after some seconds. Then G4 automatically switches to normal measuring operation.

  • Page 7: Service Panel

    Function key 'F11' on the keyboard can be used to access the 'Main Menu'. Display During measuring operation the function keys + and – are used to toggle G4 RM between display of measured values for the scales in the instrument.

  • Page 8: Additional Functions

    Operating instructions, Quick installation Additional functions During measuring operation the additional functions for a scale that are activated in the parameter set-up can be displayed to the right on the bottom line. Key ↑ toggles the display of additional functions 'on' and 'off'. As the additional functions are displayed, the keys + and –...

  • Page 9: Operation

    G4 Multi Channel Weighing Instrument Operation Zero indication and zero adjustment A basic zero setting of the gross weight for unloaded scale is performed at installation as a part of the calibration. When a ‘good zero’ is displayed, the letter ‘Z’ is shown under the measurement value.

  • Page 10: Taring

    This makes the additional function 'Tare' available for the scale. But the scale can also be set to allow taring only at stable weight (letter 'M' not shown). In G4 two tare values can be stored, Auto tare and Preset tare. Auto tare By taring, the actual gross weight is stored as Auto tare value, and the scale will switch to display of net weight 'zero'.

  • Page 11: Editing Preset Tare

    G4 Multi Channel Weighing Instrument Editing Preset tare In this example Scale 1 is set for taring with ‘Preset tare’. The example shows editing the value of ‘Preset tare’ from VIEWPAN. Scale 1, set for preset taring, 033.2 kg is in normal weighing operation.

  • Page 12: Weight Printing

    Weight Printing A printer can be used to print the displayed weight or the displayed flow rate. The printer must be connected to one of the G4 Instrument serial communication ports and the communication parameters must be correctly set. This example shows how to make a print out of the displayed weight for Scale 1 (the displayed scale) from VIEWPAN.

  • Page 13: Level Supervision

    G4 Multi Channel Weighing Instrument Level supervision With G4 it is possible to supervise different weighing signals at defined levels. The instrument contains 32 supervising units, Level 1 to Level 32, which can be connected to the scales by the parameter set-up.

  • Page 14: Accumulated Weights

    Operating instructions, Quick installation Accumulated Weights Every time a weight is printed the weight value is added to an accumulated value for each scale. Accumulation is done even if no printer is set-up or connected. Accumulated weights can be changed and set to zero from menu 'Accum. Weights'. This menu is reached from the 'Main Menu'.

  • Page 15: Main Menu

    G4 Multi Channel Weighing Instrument Edit (zeroing) of accumulated weight for one scale The example below shows how to edit (zeroing) an accumulated weight for a scale. Press the keys + and ↑ simultaneously 123.4 kg for 1 second to open 'Main Menu'.

  • Page 16: Flow Display (Program Option)

    Operating instructions, Quick installation Flow display (program option) When option Flow display is activated for a scale, the additional function 'W/F' can be shown in the scale display. When 'W/F' is made visible during weight display, and key ↵ is pressed, this will switch the scale over to display of flow value.

  • Page 17: Scale Batching (Program Option)

    G4 Multi Channel Weighing Instrument Scale Batching (program option) The RM instrument is a complete multi scale batcher but it is not intended as an operator interface for batching. It is possible to set-up the batching sequences from the RM instrument front panel. However for control (start, stop, reset etc) of the batching sequence should a supervising computer be used (PLC, SCADA system etc).
  • Page 18 Operating instructions, Quick installation...

  • Page 19: Installation

    Installation Mechanical installation G4 Multi Channel Weighing Instrument type RM is designed for mounting on a flat surface by DIN rail, for example in a protective cabinet. To remove the instrument from the rail, the black lever at the lower bottom side of the instrument must be engaged.

  • Page 20: Viewpan Module

    Operating instructions, Quick installation VIEWPAN module The output of the external dc supply must be rated 24 V , ±15% including fluctuations, min. 40 W. The supply must provide Double Insulation between Mains parts and 24 V SELV or SELV-E circuit; and a limited-energy circuit (max.

  • Page 21: Cpu Unit

    The communication lines must be COM2 RS485 4-wire terminated at both ends. If G4 is connected at the end of T ­ the communication line, the switches T2 and R2 must be set according to the table below. R ­...

  • Page 22: Wf In, Wf In2 And Hs Wf2

    2 cable shield must be connected to terminal 14. In WF IN and WF IN2 the shield terminals are internally connected to the G4 housing, which is internally connected to earth via the power supply connector terminal 3 (Shield).
  • Page 23 G4 Multi Channel Weighing Instrument 4-wire connection Transducer input, ch. 2 Exc.+ Exc+ Exc.- Sign.+ Sense+ Sign. ­ Transducer Exc- Sense- Sign+ Sign- Shield Junction box 6-wire connection Transducer input, ch. 1 Exc.+ Exc+ Exc.- Sign.+ Sense+ Sign.­ Transducer Exc- Sense- Exc.+...
  • Page 24 Operating instructions, Quick installation...

  • Page 25: Basic Set-Up

    Hardware configuration The instrument G4, type RM, has room for one fieldbus module and three other modules. The configuration of installed modules, used measuring channels, and scale numbers is made in set-up parameter menu 'Hardware Config.'.

  • Page 26: Common Parameters

    Operating instructions, Quick installation Common parameters G4 has a number of parameters that are common for the whole instrument. They are found in menu 'General', a sub menu to 'Param. Set-up'. Press the keys + and ↑ simultaneously 123.4 kg for 1 second to open 'Main Menu'.
  • Page 27 G4 Multi Channel Weighing Instrument Date Format If parameter 'Date Format' is selected, the actual format appears on the bottom line with a flashing cursor. Press key + or – to scroll the alternatives. In the alternatives, YYYY stands for 'year', Date Format MM stands for 'month', DD stands for 'day'.

  • Page 28: Clock Set-Up

    Operating instructions, Quick installation Clock set-up Date/time information always exists within G4 RM, but is not presented at VIEWPAN. Setting of correct date and time is performed in 'Clock Set-up', a sub menu to the 'Main Menu'. Setting of date and time doesn't interrupt normal weighing operation.

  • Page 29: Scale Calibration

    G4 Multi Channel Weighing Instrument Scale calibration All calibration set-up parameters are set individually for each scale. The scale number is used to distinguish parameters for different scales. The following example shows a set-up sequence for Scale 1, so all parameters will begin with 1: .
  • Page 30 Operating instructions, Quick installation 1:Measurem. Unit If this parameter is selected for editing, the actual measurement unit appears on the bottom line with a flashing cursor. The measurement unit will be used for the measured value and for related set-up parameters. Press key + or –...
  • Page 31 G4 Multi Channel Weighing Instrument Scrolling the list of parameters for Scale 1 by Scale 1 the key + will bring you to the last display: 'Scale 1 Scale 1 Calib. Scale 1 Calib.' Press key ↵ . 1:Calibr. Type This display shows the current type of calibration 1:Calibr.

  • Page 32: Data Sheet Calibration

    Operating instructions, Quick installation Data sheet calibration This calibration method can be used when data sheets for the transducers are available and no external forces influence the weighing installation. If fixed supports are included, the load must be evenly distributed on all supports. Data sheet calibration can be performed without any transducers connected, but the transducers must be connected as the zero setting is performed.
  • Page 33 G4 Multi Channel Weighing Instrument 1:Rated Load Rated load for the transducer is a value, given in the data sheet. All the transducers in the scale must have the same impedance and rated load. The rated load value, expressed in the unit of the data sheet, should be entered for this parameter.
  • Page 34 Operating instructions, Quick installation 1:Set Zero This parameter is used to make the scale display gross weight zero when it is unloaded. Make sure the scale is completely unloaded before this setting is performed. 1:Set Zero Press key ↵ . 0.00 The current gross weight is displayed as a live weight.

  • Page 35: Deadweight Calibration

    G4 Multi Channel Weighing Instrument Exit calibration. To exit from calibration, press key ↑ twice. A question, 'Save calib?', is displayed. Save calib? Answer Yes (key ↵ ) to keep the new settings Esc. Yes in the instrument memory, or answer No (key –...
  • Page 36 Operating instructions, Quick installation 1:No of Cal. P This parameter defines the number of calibration points. Up to six points can be selected, parameters for load value and transducer signal will be displayed for the selected number of calibration points. In this example a two-point calibration is described.
  • Page 37 G4 Multi Channel Weighing Instrument 1:Value Cal. P2 This parameter, in a two-point calibration, defines the load for the highest calibration point. Normally the scale should be loaded to at least two-thirds of the scale capacity. The weight value and the corresponding transducer signal value are automatically stored for the scale.
  • Page 38 Operating instructions, Quick installation 1:Set Zero This parameter is used to make the scale display gross weight zero when it is unloaded. Make sure the scale is completely unloaded before this setting is performed. 1:Set Zero Press key ↵ . 0.00 The current gross weight is displayed as a live weight.
  • Page 39 G4 Multi Channel Weighing Instrument Exit calibration. To exit from calibration, press key ↑ twice. A question, 'Save calib?', is displayed. Save calib? Answer Yes (key ↵ ) to keep the new settings in the instrument memory, or Esc. Yes answer No (key –...

  • Page 40: Zeroing Of Gross Weight

    Operating instructions, Quick installation Zeroing of gross weight When the scale installation is calibrated, a zeroing is performed in order to make the gross weight zero when the scale is unloaded. If mechanical equipment is added later, this will affect the weight display for the scale, and a new zeroing of the gross weight becomes necessary.

  • Page 41: Appendix 1

    G4 Multi Channel Weighing Instrument Common set-up values Note: Only the set-up parameters covered in this manual are listed. Location/Notes: ......................Software version: ..........Serial number: ....... Date: ........... Hardware position Module Serial no. Notes Slot 1 ................
  • Page 42 Operating instructions, Quick installation...

  • Page 43: Appendix 2

    G4 Multi Channel Weighing Instrument Scale set-up values Note: Only the set-up parameters covered in this manual are listed. Locations/Notes: ..................................................Module: ........Ser. no.: ......Slot no.: ......Channel number: ............. Scale number: ............. Parameter name: Default values X:Measurem.
  • Page 44 Operating instructions, Quick installation...
  • Page 46 Document no. 35133 Article no. 600 857 R2c © Vishay Nobel AB, 2011-06-15 Subject to changes without notice. Vishay Nobel AB Box 423, SE-691 27 Karlskoga, Sweden Edgewater Drive, Norwood, MA 02726, USA Phone +46 586 63000 · Fax +46 586 63099...
