Vishay G4 Operating Instructions Manual

Pm/dt/he types multi channel weighing instrument
Hide thumbs Also See for G4:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Technical Manual
GB
G4 Multi Channel
Weighing Instrument
Program version 1.2.0.0
Operating instructions,
Quick installation
PM/DT/HE types

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vishay G4

Summary of Contents for Vishay G4

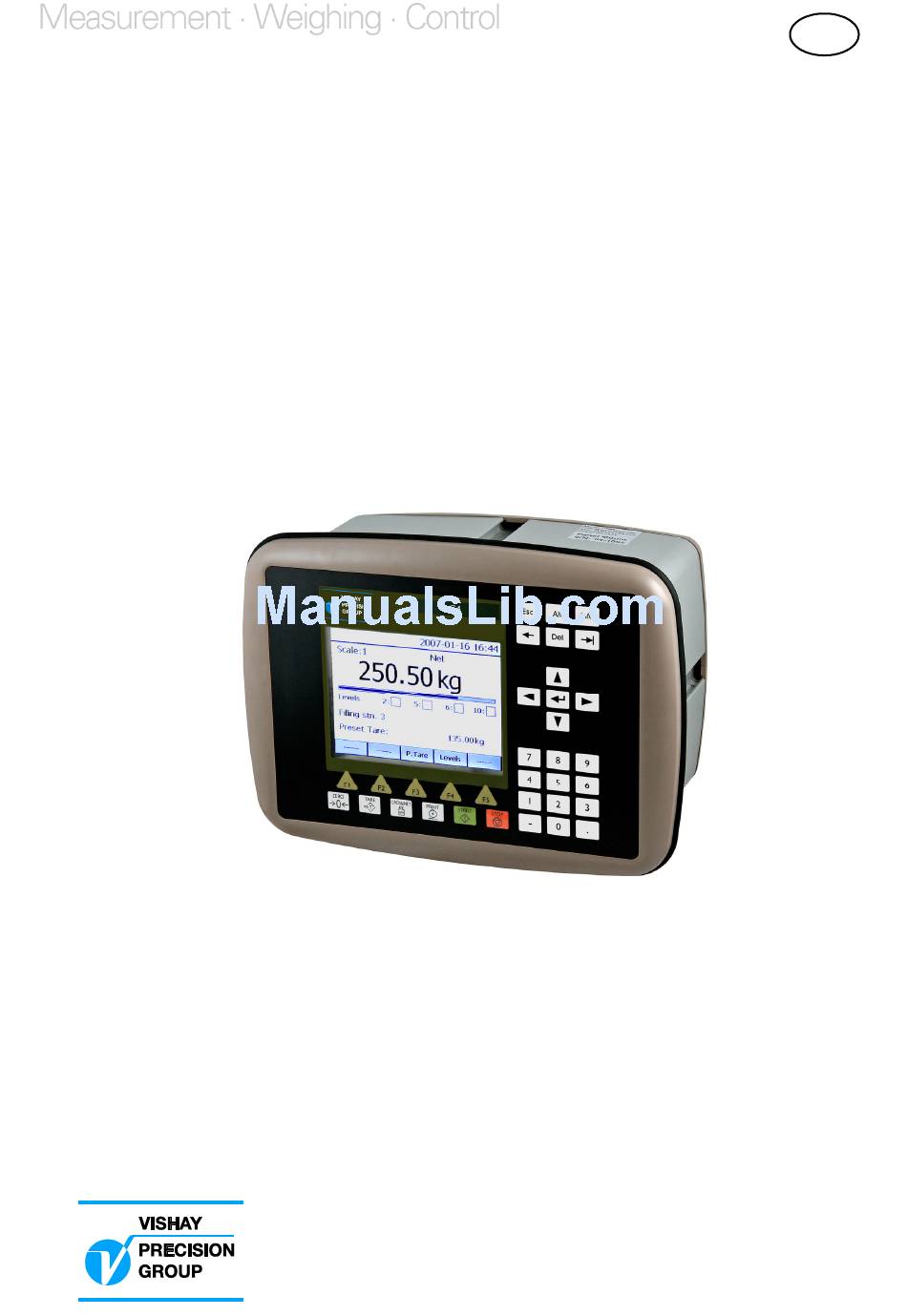

  • Page 1 G4 Multi Channel Weighing Instrument Program version 1.2.0.0 Operating instructions, Quick installation PM/DT/HE types...
  • Page 2 Operating instructions, Quick installation...

  • Page 3: Table Of Contents

    G4 Multi Channel Weighing Instrument Contents Introduction General ............. 1 Power supply ............. 1 Start-up ............. 1 Maintenance ............. 2 Safety information ..........2 Front panel General ..............3 Display alternatives ..........4 Operation Zero indication and zero adjustment ....5 Gross weight ............5 Net weight ............6...
  • Page 4 Operating instructions, Quick installation PRECAUTIONS READ this manual BEFORE operating or servicing this instrument. FOLLOW these instructions carefully. SAVE this manual for future reference. WARNING Only permit qualified personnel to install and service this instrument. Exercise care when making checks, tests and adjustments that must be made with power on.

  • Page 5: Introduction

    G4, which makes it easy to integrate the instrument into industrial processes. The front panel of G4, types PM/DT/HE, is flat, dustproof, and waterproof. It has a back lighted graphical colour LCD display with touch sensitive screen for weight information, set-up information and error messages.

  • Page 6: Maintenance

    The instrument may only be utilized for the measurement and control functions, described in the Technical Manual for G4 Multi Channel Weighing Instrument, PM/DT/HE types. It is especially important to adhere to the load limits of the input/output connectors.

  • Page 7: Front Panel

    If an error occurs this will be indicated by an error code at the display. Info key The Info key at the upper right corner of the panel is used to enter G4 menu system. Function keys Just below the display there are five function keys, marked F1 to F5.

  • Page 8: Display Alternatives

    Operating instructions, Quick installation Display alternatives It is possible to configure G4 to display one, two or four scales at a time, or a combination of the mentioned views. If a combination of views is used, the arrow keys 'right' and 'left' are used to select a display alternative. Only configured scales will be shown.

  • Page 9: Operation

    G4 Multi Channel Weighing Instrument Operation Zero indication and zero adjustment A basic zero setting of the gross weight for unloaded scale is performed at installation as a part of the calibration. When a ‘good zero’ is displayed, the text ‘Zero’ is shown to the right in the display.

  • Page 10: Net Weight

    But the scale can also be set to allow taring only at stable weight (when the text ‘Motion’ is not shown). In G4 two tare values can be used: Auto tare and Preset tare. Auto tare By taring, the actual gross weight is stored as Auto tare value, and the scale will switch to display of net weight ‘zero’.

  • Page 11: Editing Preset Tare

    G4 Multi Channel Weighing Instrument Editing Preset tare In this example Scale 1 is set for taring with 2006-09-24 19:07 ‘Preset tare’, and for displaying the value of the ‘Preset Tare’ at Info Line 1 Scale: 1 Gross 034.5 kg (and Scale Name at Info Line 2).

  • Page 12: Level Supervision

    Operating instructions, Quick installation Level supervision With G4 it is possible to supervise different weighing signals at defined levels. The instrument contains 32 supervising units, Level 1 to Level 32, which can be connected to the scales by the parameter set-up. For each scale up to 4 connected Levels are indicated at the display in normal operation.

  • Page 13: Flow Display

    G4 Multi Channel Weighing Instrument Flow display When option Flow display is activated for a scale, function key F5 will show the text 'W/F'. Pressing function key F5, or tapping at 'W/F', will switch the scale between display of weight value (indicated by 'Gross' or 'Net') and display of flow value (indicated by 'Flow').
  • Page 14 Operating instructions, Quick installation...

  • Page 15: Installation

    G4 Multi Channel Weighing Instrument Installation Mechanical installation The instrument G4 has a flat plastic front panel and can be ordered with three different housings: aluminium housing for panel mounting or stand-alone use, or stainless steel housing for stand-alone use in harsh environment.

  • Page 16: Dc Supply, Ac Supply

    Operating instructions, Quick installation DC SUPPLY 24 V The output of the external dc supply must be rated 24 V , ±15% including fluctuations, min. 40 W. The supply must provide Double Insulation between Mains parts and 24 V SELV or SELV-E circuit, and a limited-energy circuit (max.

  • Page 17: Cpu Unit

    Shield The communication line must be terminated at both ends. COM2 RS485 4-wire If G4 is connected at the end of the communication line, the switches T­ T2 and R2 must be set according to the table below. R­ 2-wire termination: Both T2 switches ON, both R2 switches OFF.

  • Page 18: Wf In, Wf In2 And Hs Wf2

    2 cable shield must be connected to terminal 14. In WF IN and WF IN2 the shield terminals are internally connected to the G4 housing, which is internally connected to earth via the power supply connector terminal 3 (Shield).
  • Page 19 G4 Multi Channel Weighing Instrument 4-wire connection Transducer input, ch. 2 Exc.+ Exc+ Exc.- Sign.+ Sense+ Sign. ­ Transducer Exc- Sense- Sign+ Sign- Shield Junction box 6-wire connection Transducer input, ch. 1 Exc.+ Exc+ Exc.- Sign.+ Sense+ Sign. ­ Transducer...
  • Page 20 Operating instructions, Quick installation...

  • Page 21: Basic Set-Up

    Hardware configuration The instruments G4, types PM/DT/HE, have room for one fieldbus module and six other modules. The configuration of installed modules, used measuring channels, and scale numbers is made in set-up parameter menu 'Hardware Config.'.

  • Page 22: Common Parameters

    Operating instructions, Quick installation Common parameters 2006-09-24 19:07 G4 has a number of parameters that are Scale: 1 Gross common for the whole instrument. 034.5 kg They are found in menu 'General', a sub menu to 'Set-up parameters'. Press the key marked 'Info' at the upper right Levels corner of the instrument panel.
  • Page 23 G4 Multi Channel Weighing Instrument Date Format Edit: Date Format 'Date Format' was selected in menu 'General'. YYYY-MM-DD YYYY-DD-MM Use the arrow keys to position the indicator on DD-MM-YYYY the desired date format. DD/MM/YYYY Y = year, M = month, D = day.

  • Page 24: Clock Set-Up

    Operating instructions, Quick installation Clock set-up Date/time information is always presented at the G4 weight display. Setting of correct date and time is performed in ‘Clock Set-up’, a sub menu to the 'Main Menu'. Setting of date and time doesn't interrupt normal weighing operation.

  • Page 25: Scale Calibration

    G4 Multi Channel Weighing Instrument Scale calibration All calibration set-up parameters are set individually for each scale. The scale number is used to distinguish similar parameters in different scales. The following example shows a set-up sequence for Scale 1, so all parameter names will begin with 1: .
  • Page 26 Operating instructions, Quick installation Scale 1 In menu 'Scale 1', arrow keys can be used to scroll the list of parameters, and to select a parameter name 1:Scale Name 1:Measurement Unit by positioning the indicator on the corresponding line. 1:Resolution Some basic parameters are explained below.
  • Page 27 G4 Multi Channel Weighing Instrument The last line in menu 'Scale 1' gives access Scale 1 to menu 'Scale 1 Calibration', where calibration 1:WFIN Update Rate 37 Hz 1:Filter Window 1.00 kg type can be selected. 1:Motion Detect Window 0.10 kg...

  • Page 28: Data Sheet Calibration

    Operating instructions, Quick installation Data sheet calibration This calibration method can be used when data sheets for the transducers are available and no external forces influence the weighing installation. If fixed supports are included, the load must be evenly distributed on all supports. Data sheet calibration can be performed without any transducers connected, but the transducers must be connected as the zero setting is performed.
  • Page 29 G4 Multi Channel Weighing Instrument 1:Rated Load Rated load for the transducer is a value, given in Edit: 1:Rated Load the data sheet. All the transducers in the scale must have the same impedance and rated load. Value: 2000.00 The rated load value, expressed in the unit of the data sheet, should be entered for this parameter.
  • Page 30 Operating instructions, Quick installation Exit calibration To exit from calibration, press 'Escape' twice. Exit calibration A question will be displayed. Calibration parameter(s) changed! Do you want to keep the new settings? Answer Yes to keep the new settings in the instrument memory, Cancel answer No to exit calibration without saving (all changes will be rejected).

  • Page 31: Deadweight Calibration

    G4 Multi Channel Weighing Instrument Deadweight calibration This is the most accurate calibration method. It requires that known weights to at least two-thirds of the scale capacity are available. A deadweight calibration of a scale should start with the scale parameters, described on page 22.
  • Page 32 Operating instructions, Quick installation 1:Value Cal. P2 This parameter, in a two point calibration, defines Edit: 1:Value Cal. P2* the load for the highest calibration point. Normally the scale should be loaded to at least two-thirds Value: 100.0 of the scale capacity. This weight value and the corresponding transducer signal value are automatically stored for the scale.
  • Page 33 G4 Multi Channel Weighing Instrument Exit calibration To exit from calibration, press 'Escape' twice. Exit calibration A question will be displayed. Calibration parameter(s) changed! Do you want to keep the new settings? Answer Yes to keep the new settings in the instrument memory,...

  • Page 34: Zeroing Of Gross Weight

    Operating instructions, Quick installation Zeroing of gross weight When the scale installation is calibrated, a zeroing is performed in order to get the gross weight zero when the scale is unloaded. If mechanical equipment is added later, this will affect the weight display for the scale, and a new zeroing of the gross weight becomes necessary.

  • Page 35: Appendix 1

    G4 Multi Channel Weighing Instrument Common set-up values Note: Only the set-up parameters covered in this manual are listed. Location/Notes: ......................Software version: ..........Serial number: ....... Date: ........... Hardware position Module Serial no. Notes Slot 1 ................
  • Page 36 Operating instructions, Quick installation...

  • Page 37: Appendix 2

    G4 Multi Channel Weighing Instrument Scale set-up values Note: Only the set-up parameters covered in this manual are listed. Locations/Notes: ..................................................Module: ........Ser. no.: ......Slot no.: ......Channel number: ............. Scale number: ............. Parameter name:...
  • Page 38 Operating instructions, Quick installation...
  • Page 40 Document no. 35196 Article no. 600 856 R1c © Vishay Nobel AB, 2011-06-15 Subject to changes without notice. Vishay Nobel AB Box 423, SE-691 27 Karlskoga, Sweden Edgewater Drive, Norwood, MA 02726, USA Phone +46 586 63000 · Fax +46 586 63099...
