Vishay G4 Technical Manual

Scale batching program option pm/dt/he/rm types
Hide thumbs Also See for G4:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Technical Manual

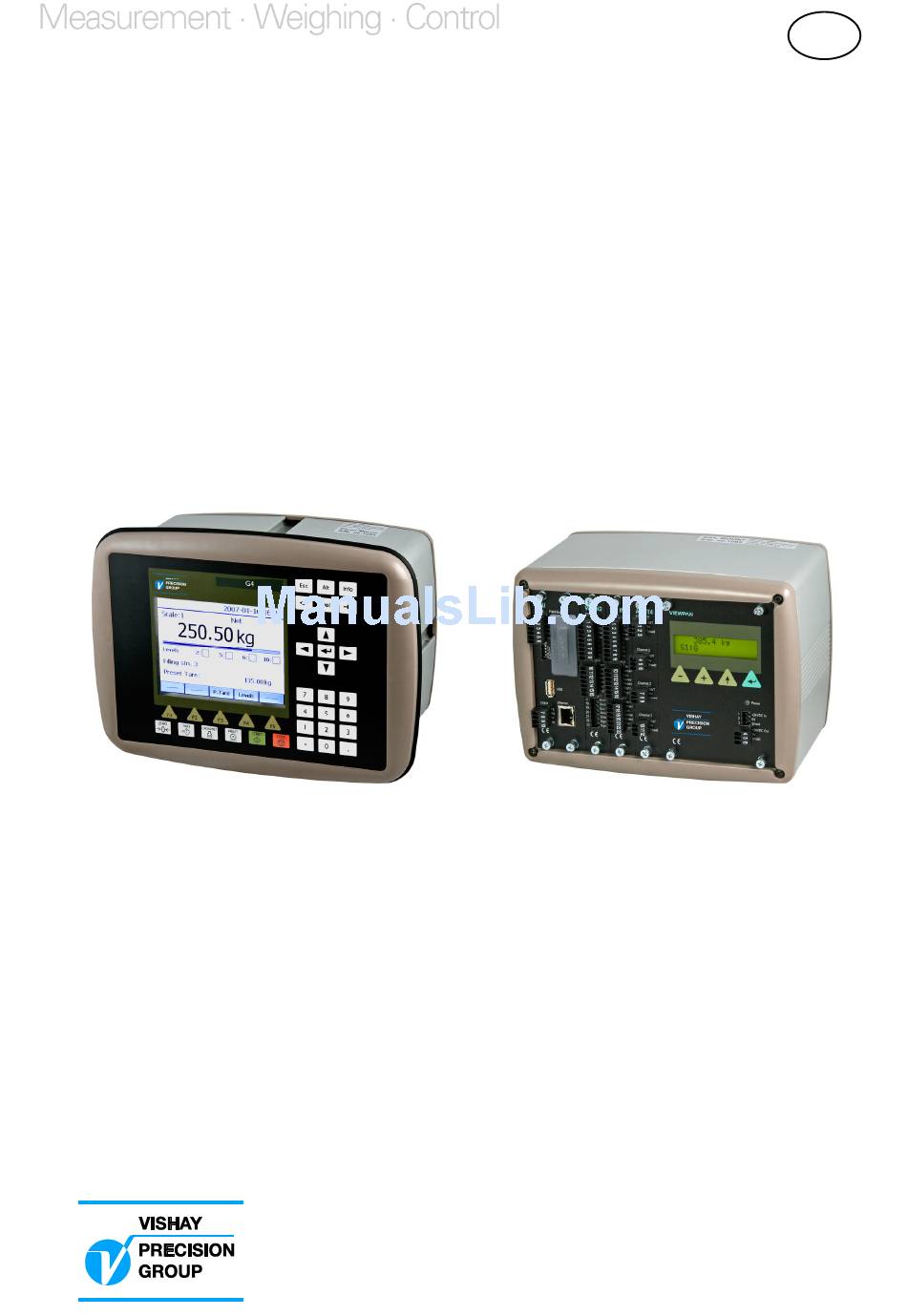

GB
G4 Multi Channel
Weighing Instrument
Program version 1.5.0.0
Scale Batching Program Option
Technical Manual Supplement
PM/DT/HE/RM types

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vishay G4

Summary of Contents for Vishay G4

  • Page 1 G4 Multi Channel Weighing Instrument Program version 1.5.0.0 Scale Batching Program Option Technical Manual Supplement PM/DT/HE/RM types...

  • Page 3: Table Of Contents

    G4 Multi Channel Weighing Instrument Contents 1. Introduction 7. Batching alarms General ..........1-1 General ..........7-1 Front panel ........1-1 Batching alarms ........7-1 2. Batching principles 8. Communication General ..........2-1 General ..........8-1 Digital inputs and outputs ....2-1 Last activity registers ......8-1 Batch start check.......2-2 Last batch registers......8-2...
  • Page 4 Technical Manual Supplement...

  • Page 5: Introduction

    1. Introduction General In the program version 1.5.0.0 the ‘G4 Modular Weighing Instrument’ includes a program option for ‘Batching’. The option can be activated by a code specific for each individual instrument. The code can be ordered from Nobel Weighing Systems and should be entered in menu ‘Program Options’...
  • Page 6 Technical Manual Supplement 1-2...

  • Page 7: Batching Principles

    2. Batching principles General Batching with the G4 Instrument means performing up to 12 activities in numerical order as one sequence for each scale. Batching can be used with each used scale in the instrument. Each Scale Batching sequence operates independent of the other.

  • Page 8: Batch Start Check

    Technical Manual Supplement Batch start check When batching is started (start button or communication start command) an I/O usage check is done to verify that all the rules described above are followed. This check is only done for the scale to start. If there are any violations to the I/O usage rules there will be an error and the batching sequence will not start.

  • Page 9: Activity Description

    G4 Multi Channel Weighing Instrument 3. Activity description General In the description of activities below Scale 1 Activity 1 parameters are used as an example. The parameter names includes the scale number and the activity number. E.g. ‘1/1:AcivityType’ applies to Scale 1, Activity 1 while ‘3/4:ActivityType’ applies to Scale 3, Activity 4 etc.

  • Page 10: Weigh In

    Technical Manual Supplement Weigh In The Weigh In activity is used when the material is batched into the weighed vessel. Setpoint check When a Weigh In activity is started, the Setpoint value is checked to determine if the receiving container has sufficient capacity for the set quantity of material. The implication of this Setpoint check is that actual Gross weight + Setpoint value must be less than ‘S1:Capacity’...
  • Page 11 G4 Multi Channel Weighing Instrument  ‘1/1:Batching Mode’ is ‘Fine+Coarse’ and ‘1/1:Fine on during Coarse’ is ‘No’: The coarse output is activated. The instrument shows increasing weight. When the weight reaches ‘Coarse Level’ the coarse output is deactivated and the fine output is activated (Coarse Level = Setpoint –...
  • Page 12 Technical Manual Supplement Stability check after batching After the complete batching of a Weigh In (or Weigh Out) activity and Wait time, a stability check is performed if ‘1:Motion Check’ is ‘On’ (stability check is never performed for a Pulse Batching activity). Unstable weight initiates an alarm.
  • Page 13 G4 Multi Channel Weighing Instrument 100.00 % means that tolerance check is not performed (all weights are approved). 5.00 % means that the batched weight is permitted to deviate from the Setpoint value by 5 % thereof. If the weight is below the ‘1/1:Minus Tolerance’ limit, and a ‘1/1:Pulsing Time’ other than zero is selected, the fine output will be activated again for the time defined by the parameter ‘1/1:Pulsing Time’.

  • Page 14: Weigh Out

    Technical Manual Supplement Automatic inflight compensation Automatic inflight compensation is operative when the ‘1/1:Inflight Factor’ has a value higher than zero. It is used to adjust the ‘1/1:Inflight Value’ after each activity to bring the batched weight value as close to the Setpoint as possible. Automatic inflight compensation for any activity is performed by: New Inflight value = preceding Inflight value + (batched weight - Setpoint value) x ‘1/1:Inflight Factor’.

  • Page 15: Dump

    G4 Multi Channel Weighing Instrument Dump Only emptying of the vessel into which the components have been batched is performed by this activity. Acknowledgement check The acknowledgement input signal is checked according to ‘1/1:Acknowledge Type’ setting’:  ‘No Test’: No acknowledgement checking is done. The batching sequence continues immediately.

  • Page 16: Fill

    Technical Manual Supplement Fill This activity type is used to fill a vessel with material. Acknowledgement check The acknowledgement input signal is checked according to ‘1/1:Acknowledge Type’ setting’:  ‘No Test’: No acknowledgement checking is done. The batching sequence continues immediately.  ‘At Start’...

  • Page 17: Timer And Timer With Output

    G4 Multi Channel Weighing Instrument Timer and Timer with Output Timer activities are used to switch on an output signal for the set time or to give a ‘pause’ (without any output signal). Acknowledgement check The acknowledgement input signal is checked according to ‘1/1:Acknowledge Type’...

  • Page 18: Latch On

    Technical Manual Supplement Latch On Latch On activities are used to switch on an output signal. Acknowledgement check The acknowledgement input signal is checked according to ‘1/1:Acknowledge Type’ setting’:  ‘No Test’: No acknowledgement checking is done. The batching sequence continues immediately.

  • Page 19: Manual

    G4 Multi Channel Weighing Instrument Manual A Manual activity halts the batching to allow special operations that must be carried out manually. (For example, to add small quantities of material manually.) Before batching is halted autotaring is performed, which means that the net weight zero is displayed when the manual operation starts.
  • Page 20 Technical Manual Supplement 3-12...

  • Page 21: Batching Parameters

    The RM type of naming will be found for the respective parameter. The G4 Multi Channel Instrument can handle batching for up to 8 scales depending on the number of measuring channels installed in the instrument. In the parameter list below are the parameters for scale number 1 shown.

  • Page 22: Parameters

    Technical Manual Supplement Parameters On the following pages a survey of all parameters is presented. The parameters are divided in groups following the menu they belong to. For choice parameters the available choices are given. For numerical parameters, a value range is given. At the end of the table, the default value is given in <...
  • Page 23 G4 Multi Channel Weighing Instrument Range/Alternatives Explanation and <default value> result of alternatives. S1:File Log [S1:File Log] Defines the type of file log. Limited No: No logging to file is made. Full Limited: Only batched weights and alarms are logged.
  • Page 24 Technical Manual Supplement Range/Alternatives Explanation and <default value> result of alternatives. Menu ‘S1A1:name’ [‘S1A1:name’] In the menu name shown above ‘name’ is replaced with the Activity Name or, if no name is set, the Activity Type. The following batching parameters are available in 12 sets for each scale, one for each activity in the instrument for each scale.
  • Page 25 G4 Multi Channel Weighing Instrument Range/Alternatives Explanation and <default value> result of alternatives. 1/1:Output No [1/1:Output No] Defines the output used for one phase batching. Internal 11-18 outputs (11-68) must be defined as ‘Batch. Activity’ in the set-up 21-28 menu ‘Outputs’.
  • Page 26 Technical Manual Supplement Range/Alternatives Explanation and <default value> result of alternatives. 1/1:Fine Start Delay* [1/1:F.Start D.] Range: 0.0 - 99.9 The time period from start of fine phase (fine output on) until the Unit: s instrument start to monitor the weight (comparing with the set ­ <0.0>...
  • Page 27 G4 Multi Channel Weighing Instrument Range/Alternatives Explanation and <default value> result of alternatives. 1/1:Pulsing Time* [1/1:Pulsing T.] Range: 0.0 - 999.9 Time for one pulse on the output Fine/Output when the setpoint Unit: s value is not reached after ordinary batching (minus tolerance <0.0>...
  • Page 28 Technical Manual Supplement Range/Alternatives Explanation and <default value> result of alternatives. Dumping (Activity Type = Dump) 1/1:Output No [1/1:Output No] 11-18 Defines the output used for dumping. Internal outputs (11-68) 21-28 must be defined as ‘Batch. Activity’ in the set-up menu 31-38 ‘Outputs’.
  • Page 29 G4 Multi Channel Weighing Instrument Range/Alternatives Explanation and <default value> result of alternatives. Filling (Activity Type = Fill) 1/1:Output No [1/1:Output No] 11-18 Defines the output used for filling. Internal outputs (11-68) must 21-28 be defined as ‘Batch. Activity’ in the set-up menu ‘Outputs’.
  • Page 30 Technical Manual Supplement Range/Alternatives Explanation and <default value> result of alternatives. Timer or Timer with output (Activity Type = Timer or Timer w. Output) 1/1:Output No [1/1:Output No] 11-18 Defines the output used for the timer. Internal outputs (11-68) 21-28 must be defined as ‘Batch.
  • Page 31 G4 Multi Channel Weighing Instrument Range/Alternatives Explanation and <default value> result of alternatives. Manual (Activity Type = Manual) 1/1:Print Weight [1/1:Print W.] Defines if the weight value (from the scale or manually entered) is printed, written to log file and accumulated. Printing and <No>...
  • Page 32 Technical Manual Supplement Range/Alternatives Explanation and <default value> result of alternatives. 1/1:Fine Output No [1/1:F. Outp No] 11-18 Defines the output used for fine batching. Internal outputs 21-28 (11-68) must be defined as ‘Batch. Activity’ in the set-up menu 31-38 ‘Outputs’.
  • Page 33 G4 Multi Channel Weighing Instrument Range/Alternatives Explanation and <default value> result of alternatives. 1/1:Inflight Value* [1/1:Infl. Val.] Range: 0 - 999999 Batching will be completed (output deactivated) when this value Unit: remains to batch. Pulse Batching Unit If automatic inflight compensation is used, this value is adjusted <0.000>...
  • Page 34 Technical Manual Supplement Range/Alternatives Explanation and <default value> result of alternatives. 1/1:No of Decimals [1/1:No of Dec.] Defines if the number of decimals used for the pulse batching unit. <0> 1/1:Unit [1/1:Unit] Defines the engineering unit that should be used for pulse NONE batching.

  • Page 35: Operation

    The following section applies to the graphical display used in the PM/DT/HE instrument types. When the G4 Instrument is in normal operation, displaying the weight value, and the batching option is activated, this is indicated by the text “Batch” at the function key to the left (F1).
  • Page 36 Technical Manual Supplement Batching display The batching display shows the actual weight and status for the selected scale. The display also shows all necessary information of the batching sequence that an operator needs to handle the batching process. Scales that are not batching will display status ‘Inactive’.
  • Page 37 G4 Multi Channel Weighing Instrument Batch Data Menu From the batching display it is possible to reach a setup menu for batch data using key F1 ‘B.Data’. Batch data can be changed during batching but will not take effect until next batch is started.

  • Page 38: Rm-Instrument Display

    Technical Manual Supplement RM-instrument display The following section applies to the alphanumerical display used in the RM (DIN rail mount) instrument type. The RM instrument is a complete multi scale batcher but it is not intended as an operator interface for batching. It is possible to set-up the batching sequences from the RM instrument front panel.

  • Page 39: Batching Commands

    General Below a description is given for how batching commands are given from the front panel of the G4 Instrument. Note that this description applies to an instrument with a graphical display (PM/DT/HE types). Batching commands can also be given from a control computer by communication or from digital inputs, defined in menu ‘Parameter Set-up’...
  • Page 40 Technical Manual Supplement Start batching From the weight display press F1 (Batch) to show the Batching display. If batch data needs to be checked or changed, press F1 (B.Data) to show the Batch Data menu. When in the Batching display, press the green start key, on the front panel of the instrument, to start the batching sequence.
  • Page 41 G4 Multi Channel Weighing Instrument Stop batching STOP At any time, if not in remote operation, batching can be halted from the instrument panel. Press the stop key on the front panel of the instrument, also marked with a stop symbol.
  • Page 42 Technical Manual Supplement Terminate batching As batching is halted (and a possible alarm has been reset) it is possible to terminate the batching operation by pressing the STOP key. The weight of the material that may have been batched will be accumulated and printed. After that the batching operation will be ended.
  • Page 43 G4 Multi Channel Weighing Instrument Alternatively the instrument can be set to allow manual entry of the added material weight value.  Manually add the amount of material, given as Setpoint value.  Press function key F2 (Man.Edit) to edit the Manual Weight.

  • Page 44: Batched Weights

    Technical Manual Supplement Batched weights For each scale an accumulated weight will be created for each batching activity of the types Weigh In, Weigh Out, Manual (if ‘1/1:Print Weight’ is ’Yes’), and Pulse Batching. For each scale will also a Total accumulated weight be created for the sum of all the above activities.
  • Page 45 G4 Multi Channel Weighing Instrument Full Report example ---------------------------------------- - Starting delimiter 2008-07-23 13:09 Batching report - Report header - Scale no and possible scale name Batch number 000001 (5) - Batch no. (no to batch) 13:11 A01:Water - Activity 1 ready SP : 65.0...
  • Page 46 Technical Manual Supplement Log Mode example ---------------------------------------- - Starting delimiter 1: 2008-07-23 13:09 Batching report - Report header 1: S1: - Scale no and possible scale name 1: Batch number 000001 (5) - Batch no. (no to batch) 1: 13:11 A01:Water - Activity 1 ready SP :...
  • Page 47 G4 Multi Channel Weighing Instrument Alarm example 1: 2008-07-23 - Alarm header 1: 13:10 A01:* UNSTABLE WEIGHT ALARM * - Time, activity number and alarm The alarm header will show date, possible scale name and the batch number. Notes ...
  • Page 48 Technical Manual Supplement 5-14...

  • Page 49: Log Files General

    ‘Full’: Batched weights, alarms and other information are logged. Log file handling Log files are saved in the ‘LogFiles’ folder in the user area of the G4 Instrument. It is possible to access these files with the ‘File Handling’ function in the ‘Maintenance’...

  • Page 50: Log File Description

    Technical Manual Supplement Log file description The example log below is using scale 1. Example of ‘Full’ batch log file opened in MS Excel 6-2...
  • Page 51 G4 Multi Channel Weighing Instrument This description refers to the example above. Note that the column denomination is only in Excel. There are no column names in the file itself.  Column A: Date of the event. Only batch start events have a date. For all other events this column is empty.
  • Page 52 Technical Manual Supplement The following event types/event texts are defined. The list also shows if the event will be recorded in the log file when ‘Log Mode’ is set to ‘Limited’. When the ‘Log Mode’ is set to ‘Full’ all events shown below are logged. Event no Event text Limited Log...

  • Page 53: Batching Alarms

    G4 Multi Channel Weighing Instrument 7. Batching alarms General When a batching alarm is initiated, the following events take place:  Batching is halted and all batching outputs are deactivated.  The outputs for ‘Batching Alarm’ and ‘Batching Stopped’ will be activated if configured.
  • Page 54 Technical Manual Supplement * TIMEOUT ALARM * The activity was not completed within the specified maximum time, set by parameter ‘1/1:Timeout Value’. * MINUS TOLERANCE ALARM * Batched weight is below minus tolerance limit. * PLUS TOLERANCE ALARM * Batched weight exceeds plus tolerance limit. * UNSTABLE WEIGHT ALARM * Weight not stable after Wait time (obtained only if Motion Check is On).

  • Page 55: Communication

    G4 Multi Channel Weighing Instrument 8. Communication General For a detailed description of communication interface and transmission principles, see chapter Communication in the Technical Manual. Everything that can be performed from the front panel can also be performed from a control computer via communication.

  • Page 56: Last Batch Registers

    Technical Manual Supplement Last batch registers Data type: Integer Explanation Scale number No of Counter (free running) 40650 40755 40860 40965 41070 41175 41280 41385 1 Creation time, hour 40651 40756 40861 40966 41071 41176 41281 41386 1 Creation time, min. 40652 40757 40862 40967 41072 41177 41282 41387 1 Batch number 40653 40758 40863 40968 41073 41178 41283 41388 3...
  • Page 57 G4 Multi Channel Weighing Instrument Data type: Float Explanation Scale number No of Counter (free running) 44650 44724 44798 44872 44946 45020 45094 45168 2 Creation time, hour 44652 44726 44800 44874 44948 45022 45096 45170 2 Creation time, min.

  • Page 58: Current Batching Status Registers

    Technical Manual Supplement Current batching status registers Data type: Integer Explanation Scale number No of Batching Status 40300 40322 40344 40366 40388 40410 40432 40454 1 Batching Step 40301 40323 40345 40367 40389 40411 40433 40455 1 Batching Alarm 40302 40324 40346 40368 40390 40412 40434 40456 1 Batch Number 40303 40325 40347 40369 40391 40413 40435 40457 3 Current Activity...

  • Page 59: Batch Data Registers

    G4 Multi Channel Weighing Instrument Batch data registers Data type: Integer Explanation Scale number No of Number of Batches 43150 43204 43258 43312 43366 43420 43474 43528 3 Batch Size 43153 43207 43261 43315 43369 43423 43477 43531 3 Activity 1 Setpoint...

  • Page 60: Manually Entered Weight Registers

    Technical Manual Supplement Data type: Float Explanation Scale number No of Number of Batches 46800 46836 46872 46908 46944 46980 47016 47052 2 Batch Size 46802 46838 46874 46910 46946 46982 47018 47054 2 Activity 1 Setpoint 46804 46840 46876 46912 46948 46984 47020 47056 2 Activity 2 Setpoint 46806 46842 46878 46914 46950 46986 47022 47058 2 Activity 3 Setpoint...

  • Page 61: Batched Weight Registers

    G4 Multi Channel Weighing Instrument Batched weight registers Data type: Integer Explanation Scale number No of Total Batched LOW 42300 42402 42504 42606 42708 42810 42912 43014 3 Total Batched HIGH 42303 42405 42507 42609 42711 42813 42915 43017 3...
  • Page 62 Technical Manual Supplement Data type: Float Explanation Scale number No of Total Batched LOW 46250 46318 46386 46454 46522 46590 46658 46726 2 Total Batched HIGH 46252 46320 46388 46456 46524 46592 46660 46728 2 Activity 1 LOW 46254 46322 46390 46458 46526 46594 46662 46730 2 Activity 1 HIGH 46256 46324 46392 46460 46528 46596 46664 46732 2 Activity 2 LOW...

  • Page 63: Batching Status

    G4 Multi Channel Weighing Instrument Batching status This register contains the batching status. Code Description Batching not active Batching running Batching halted Batching alarm Batching halted for manual operation Batching halted for manual op. weight entry. Batching step This register contains the batching step.

  • Page 64: Batching Alarm

    Technical Manual Supplement (continued) Timing Timing with output Activating latch Deactivating latch Manual operation Finishing manual operation Finishing activity Finishing batching Resetting activity Resetting batching Batching alarm This register contains the batching alarms present. Code Description No alarm Setpoint alarm Acknowledge alarm Timeout alarm Minus tolerance alarm...

  • Page 65: Batching Commands

    G4 Multi Channel Weighing Instrument Batching commands Only the commands used by batching are shown in the table below. Note that each scale has its own unique command codes. Command Command code per scale Start batching Stop batching Reset batching...
  • Page 66 Technical Manual Supplement 8-12...

  • Page 67: General Batching Parameters

    G4 Multi Channel Weighing Instrument General Batching Parameters Location/Notes: ..........................................................................................................General Information Program version: ............CPU S/N: ............Instrument type: ............Scale no: (1-8) ............Scale Name: ............Parameter Set-up Display no of Batches: ............Display Batch Size: ............
  • Page 68 Technical Manual Supplement...

  • Page 69: Activity Parameters

    G4 Multi Channel Weighing Instrument Activity Parameters Scale no: ........Activity Name: ..............Activity no: ........Activity Type: ..............Notes: ............................Timer/Timer w. Output Weigh In/Weigh Out Output No: ........Batching Mode: ........Acknowledge Type: ........Output No: ........Acknowledge Input No: ........
  • Page 70 Technical Manual Supplement...
