Vishay TSSP770 Series Instruction Manual

www.vishay.com
IR Sensor Module for Reflective Sensor, Light Barrier,
3 3
2 2
1 1
20953 20953
DESIGN SUPPORT TOOLS
Model
Available
MECHANICAL DATA
Pinning:
1, 4 = GND, 2 = V , 3 = OUT
S
ORDERING CODE
Taping:
TSSP770..TT - top view taped
TSSP770..TR - side view taped
PARTS TABLE
38 kHz
Carrier frequency
56 kHz
Package
Pinning
Dimensions (mm)
Mounting
Application
BLOCK DIAGRAM
Input AMP
PIN
16833_17
Rev. 2.0, 26-Apr-2018
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
and Fast Proximity Applications
4 4
click logo to get started
2
V
S
33 kΩ
3
OUT
Band Demo-
pass
dulator
1, 4
GND
Vishay Semiconductors
FEATURES
• Up to 2 m for presence and proximity sensing
• Uses modulated bursts of infrared light
• 940 nm peak wavelength
• PIN diode and sensor IC in one package
• Low supply current
• Shielding against EMI
• Visible light is suppressed by IR filter
• Insensitive to supply voltage ripple and noise
• Supply voltage: 2.5 V to 5.5 V
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
DESCRIPTION

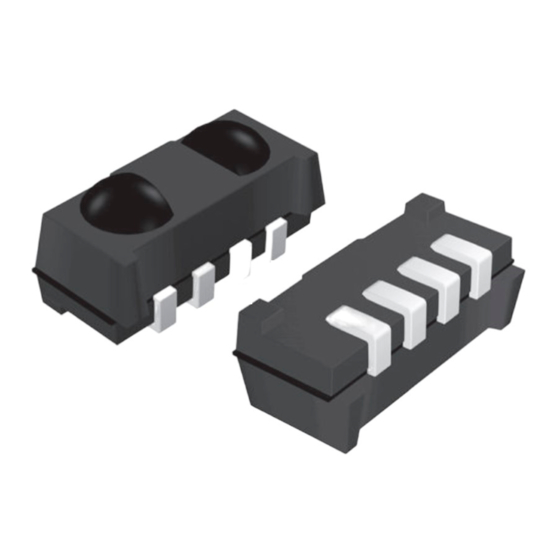

The TSSP770.. series are compact infrared detector
modules for presence
applications. They provide an active low output in response
to infrared bursts at 940 nm. The frequency of the burst
should correspond to the carrier frequency shown in the
parts table.
This component has not been qualified according to
automotive specifications.
APPLICATIONS
• Reflective sensors for hand dryers, towel or soap
dispensers, water faucets, toilet flush
• Vending machine fall detection
• Security and pet gates
• Person or object vicinity activation
• Fast proximity sensors for toys, robotics, drones, and
other consumer and industrial uses
TSSP77038
TSSP77056
Heimdall
1, 4 = GND, 2 = V , 3 = OUT
S
6.8 W x 3.0 H x 3.2 D
SMD
Presence sensors, fast proximity sensors
PRESENCE SENSING
Envelope
ignal
38 kHz
Out to
μC
1
www.vishay.com/doc?91000
TSSP770..
and fast proximity sensing
+3 V
IR emitter
+3 V
Document Number: 82470
