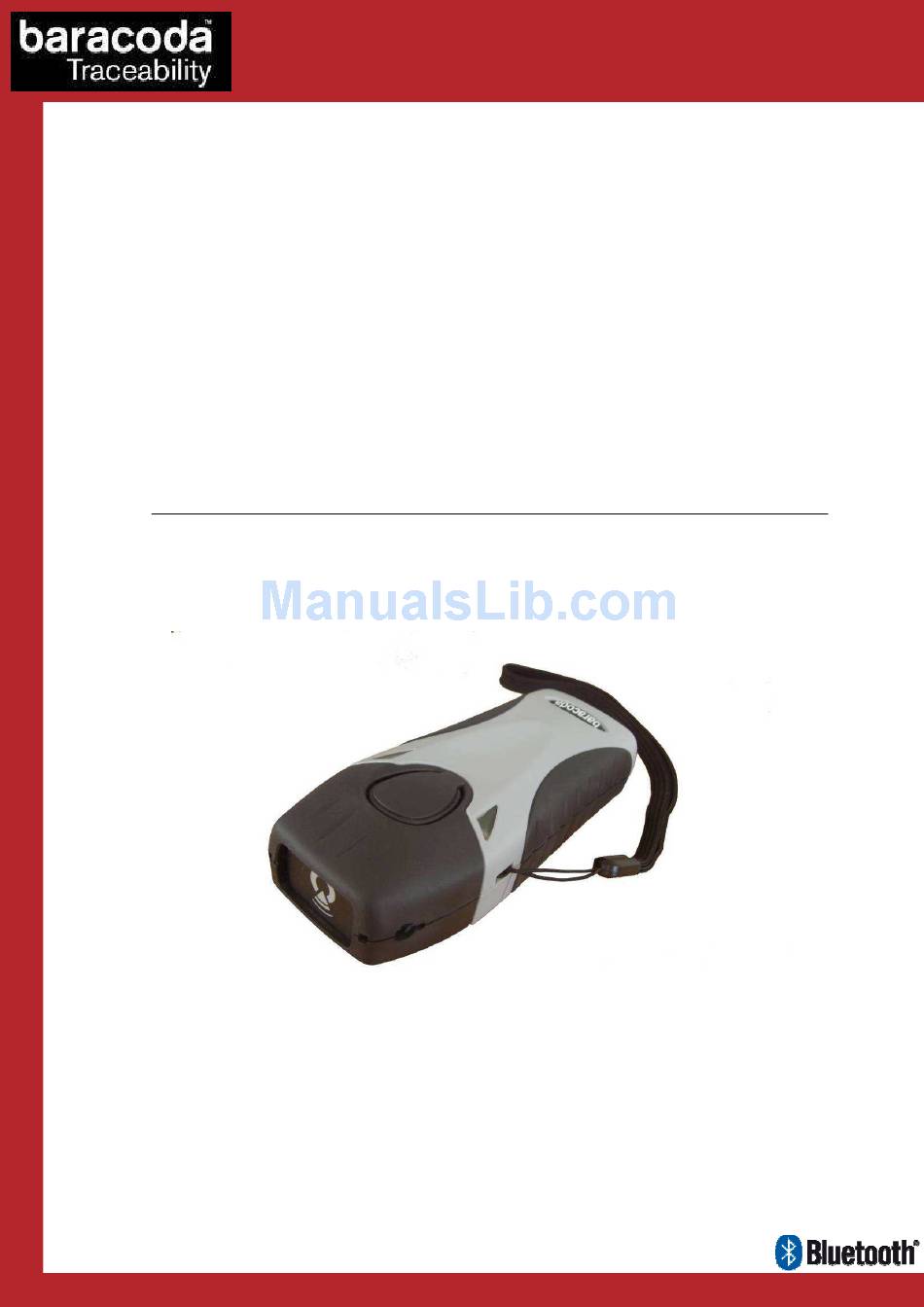

- Page 1 Data Capture for Workforce in Motion TagRunners User Guide ©Baracoda – June 2009...
- Page 2 ........ 15 HE DIFFERENT WAYS TO CONNECT UNNERS TO A HOST SAFETY / REGULATORY............17 FCC: ..............17 EU: ..............17 : ............18 THERS INDICATIONS LIMITED WARRANTY............19 Baracoda TagRunners – User Guide v1.6 - 2 -...
-
Page 3: Revision History
Modify “Status Display Summary” section 18 March. 09 Modify “RFID Protocol List” section 29 April 09 Modify “Installing / Replacing batteries” & “Safety / Regulatory” sections 1.5&1.6 18 June 09 Modify “Safety / Regulatory” sections Baracoda TagRunners – User Guide v1.6 - 3 -... -
Page 4: Introduction
Introduction The TagRunners is a contact RFID Reader / Encoder very easy to use. Just press the trigger in order to switch on the reader and simply press it again to read a RFID Tag. The colours of the LEDs indicate the status of the device. -
Page 5: Status Display Summary
Status Display Summary The TagRunners has two (2) LEDs. There are providing a status regarding the Bluetooth connection and the Reading status. The right one is the Bluetooth connection LED (BCL) and the left one is the Reading status LED (RSL). - Page 6 The reader is set in the “Real Time with No Data Loss mode” but with no bufferisation (buffer configured to 0) and is not connected. In this particular situation the RFID antenna is disabled: impossible to read Tags in this mode. Baracoda TagRunners – User Guide v1.6 - 6 -...
-
Page 7: Pda Stylus
PDA stylus In order to attach the PDA stylus to the TagRunners, insert the stylus into the hole, as showed in Fig.1. Note that there are two holes, symmetric around the principal axe of TagRunners. Push downwards, as shown by the arrow n°... -
Page 8: Installing / Replacing Batteries
Motion Installing / replacing batteries Only use Baracoda approved rechargeable batteries. The use of any other batteries may damage the reader and void the warranty. Please remove the batteries when you are storing the reader for more than 30 days. -
Page 9: Configuring Your Reader
ISO/IEC 14443- B Atmel Crypto RF ASK CTS256B & CTS512B S.T. MicroElectronics SR Inside Contactless PicoTag NXP ICODE-1 ISO /IEC 15693-3 KSW Microtec ‘VarioSens’ NXP ICODE SLI ISO /IEC 15693 S.T. MicroElectronics LRI64 TI Tag-it HF Baracoda TagRunners – User Guide v1.6 - 9 -... -
Page 10: D Ata Format
Data Prefix Data Data Suffix Baracoda Header It is a proprietary data encapsulation. It is necessary to activate the Baracoda header in 2 cases: • to use the Baracoda keyboard emulation (Kemul) and Terminal. • to use the “No data loss” mode. -
Page 11: Rfid P Rotocol I Dentifier
You can enable/disable Beeps / LED Lightening with the BaracodaManager software (v3.35 min). Power management Mutliple parameters exist to optimize the battery autonomy (“Sniff period”, “Shutdown timer”, etc…) TagRunners is configured at 20dBm (Bluetooth Class.1) by default. The BaracodaManager software (v3.35 min) can be used for multiple setting changes. Low battery An alternation of red and green blinking on the two (2) LEDs indicates that the battery level is low. -
Page 12: Quick Start Up Guide
In order to switch on the reader, please press the trigger button. The reader will emit a beep when the read is successful. The TagRunners is a contact RFID Reader/Encoder, and the RFID antenna is fixed on the top of the device. Proper reading position (40°... -
Page 13: How To Read / Write Tag Memory
During this read/ write operation, the RSL led will be orange (solid). When there is a lack of data exchanges between the tag and the TagRunners (ie : interrogator), it will emit a “Tic” sound. In that case, approach it to the tag in order to complete successfully the ‘read / write’... -
Page 14: T He Different Connection Methods
TagRunners reads by intermitent. Option: TagRunners allows to activate the option “No duplicate scans” order to not scan twice in the same RFID Tag. By default, this option is disabled, but can be changed with the BaracodaManager software (v3.35 min). -
Page 15: T He Different Ways To Connect T Ag R Unners To A Host
Workforce in Motion The different ways to connect TagRunners to a host Baracoda proposes two (2) ways to simplify this process. Just choose the most appropriate one according to your specific needs. For users: software solutions Baracoda provides two different software packages to manage the Baracoda Bluetooth devices: K-Emul lets you insert the data value in the selected field. - Page 16 Data Capture for Workforce in Motion BaracodaManager uses libraries that provide an abstraction layer allowing developers to integrate Baracoda products into their own application very rapidly. Moreover, these libraries will deal with all the low-level routines, timeouts, connections and configuration management.
-
Page 17: Safety / Regulatory
The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Baracoda Wireless Technology, may void the user’s authority to operate the equipment. Class B digital devices regulatory notice: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 18: O Thers Indications
In respect of these recommendations, the device should not be body worn (in the pocket for example) while it is operational. The unit should be turned off or not transmitting in those circumstances. Baracoda TagRunners – User Guide v1.6 - 18 -... -
Page 19: Limited Warranty
User Guide or other misuse or abuse of the product. The warranty does not cover problems linked to batteries. Baracoda TagRunners – User Guide v1.6 - 19 -...
