Summary of Contents for MicroNet SP212E

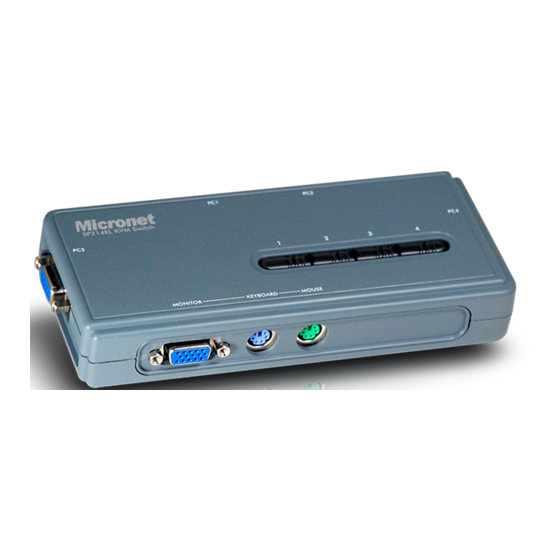

- Page 1 Quick Installation Guide 2/4-Port KVM Switch Model No.: SP212E/ SP212EL/ SP214E/ SP214EL World Wide Web: www.micronet.com.tw ; www.micronet.info...
-
Page 2: Package Contents
(keyboard, mouse, and monitor). Its compact in nature helps user to placed on desktop or be hidden from view. In addition, SP212E and SP214E supports both audio and microphone interface allowing multiple PCs to share the single set of sound device. -
Page 3: Key Features
Supports high VGA resolutions up to 2048 x 1536 Control 2/4 computers with one keyboard, mouse and monitor Support audio and microphone switching function with one speaker and microphone (SP212E/SP214E only) Support scrolling mouse & multi-button mouse (Microsoft, Logitech, etc.) Easy installation with Plug &... -
Page 4: Hardware Installation
Step 2: Connect the shared PS/2 keyboard, mouse and VGA monitor to the KVM switch. Step 3: Connect the shared speaker set and microphone to the KVM switch (SP212E/ SP214E only). Step 4: Connect PC’s audio and microphone interface to KVM switch using the Audio cable. - Page 5 Redefining Hotkey Control Redefining Hotkey can be achieved through both hotkey and push button. (Allowed Hotkey: Scroll Lock, Caps Lock, Esc, F12 or Num Lock) Step 1: Pressing current hotkey twice then ‘H’, the system will signal with two beeps alarm, then enter the new hotkey. For example, default hotkey is Scroll Lock then command sequence is (y is the new user-defined hotkey): Scroll Lock + Scroll Lock + H + (y)
- Page 6 Hotkey Command...
- Page 7 Troubleshooting & Tips Hotkey Convention: The hotkey notation (Scroll Lock + Scroll Lock + key) requires users to press the command in consecutive order, not simultaneously. Mouse Troubleshoot: Execute the following hotkey commands when mouse fail to response or malfunction. PnP O/S (Windows 98/98SE/2000/XP): ScrLk + ScrLk + End Non-PnP O/S (Linux/NT 4.0):...
