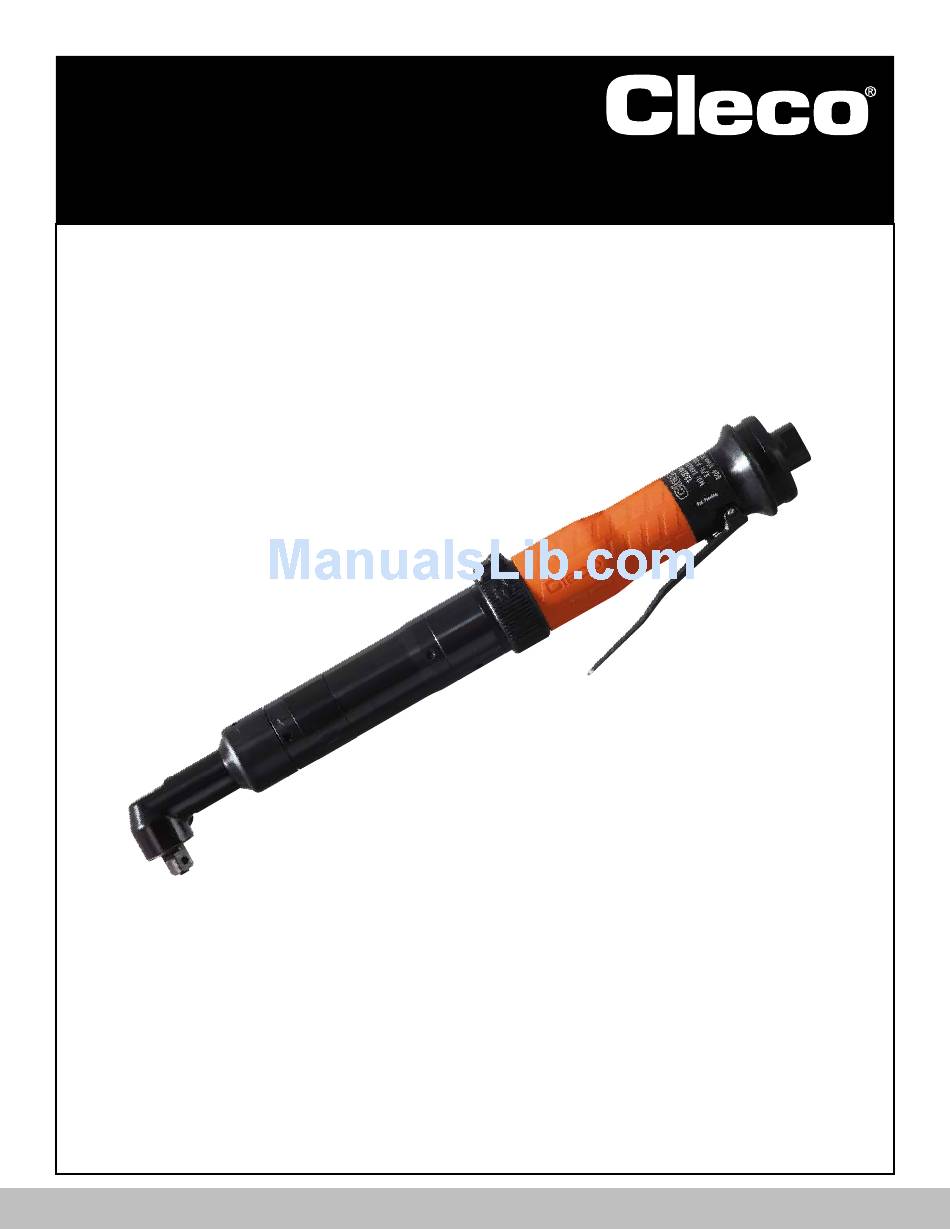

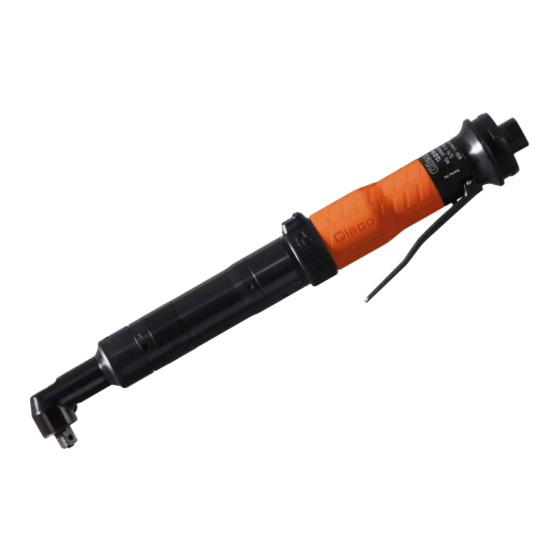

- Page 1 Parts Manual 823223EN 09/02/2015 24 & 34 Series Right Angle Nutrunners For additional product information visit our website at http://www.apextoolgroup.com maku GmbH & Co. KG - Fon: 07151/903 95 0 - Fax: 07151/903 95 99 - info@maku-industrie.de...
- Page 2 823223EN Cleco ® 09/02/2015 Nomenclature “A” Tool Series Rotation R = Reversible Tool Style A = Right Angle Torque Control A = Clecomatic Clutch S = Stall Maximum Torque 24RA Series 34RA Series 06 = 5.5 Nm 08 = 8.0 Nm 41 = 41 Nm 07 = 7.0 Nm...
-
Page 3: Product Information
823223EN Cleco ® 09/02/2015 Product Information Grease The original language of this manual is English. Product Safety Information: Part No. Packaged Designation 540450 18 oz. (0.51 kg) Black Pearl EP-NLGI-0 Intended Use: 540395 2 oz. (0.06 kg) Magnalube-G A pneumatic assembly tool is to be used only for tightening of 513156 16 oz. -
Page 4: Handle Assembly
823223EN Cleco ® 09/02/2015 Handle Assembly “B” Loctite® Page 4 Page 4 maku GmbH & Co. KG - Fon: 07151/903 95 0 - Fax: 07151/903 95 99 - info@maku-industrie.de... - Page 5 823223EN Cleco ® 09/02/2015 Handle Assembly Illustration "B" Number Description 207007 O-Ring 204928 Retaining Ring 204765 Exhaust Deflector 204918 Muffler 204916 Muffler Housing 204929 O-Ring 204901 Inlet Bushing 1006577 Screen 847411 O-Ring 204907 Spring 205862PT Throttle Valve 203474PT Throttle Seat Table "B"...
- Page 6 823223EN Cleco ® 09/02/2015 Motor Assembly “C” Page 6 maku GmbH & Co. KG - Fon: 07151/903 95 0 - Fax: 07151/903 95 99 - info@maku-industrie.de...
- Page 7 O-Ring 844313 O-Ring 204966 Wave Washer 204972 Spacer (#) Quantity (X) Recommended Spare Parts (quantity shown based on 1-5 tools in operation) Table "C" Stall Models 34RAS09 24RAS07 34RAS17 34RAS11 Ref. Description 24RAS13 24RAS08 34RAS28 34RAS54 24RAS21 34RAS36 34RAS41 Spring...
- Page 8 823223EN Cleco ® 09/02/2015 2nd Reduction Gear Assembly Models “D” 4:1 Gear Assemblies: 201884, 201982 24RAA26AH3 34RAA75AZ3 34RAA37AX3 34RAA75AZ4 34RAA47AX3 34RAS41AX3 34RAA68AZ3 34RAS54AZ3 34RAA68AZ4 34RAS54AZ4 Loctite® Page 8 maku GmbH & Co. KG - Fon: 07151/903 95 0 - Fax: 07151/903 95 99 - info@maku-industrie.de...
- Page 9 823223EN Cleco ® 09/02/2015 2nd Reduction Gear Assembly Illustration "D" Number Description Table "D" Gear Case Assembly 204998PT Thrust Washer 204997PT Needle Bearing 203750 Idler Pin 203748 Idler Gear (14T) Table "D" Gear Cage 204941 Gear Case 204803 Retaining Ring...
- Page 10 823223EN Cleco ® 09/02/2015 4.5:1, 5.7:1 and 8:1 Gear Assemblies Models “E” 4.5:1 Gear Assembly: 201878 24RAA06AL2 34RAA08AL2 24RAA06AL3 34RAA08AL3 24RAA26AH3 34RAA37AX3 24RAS07AL3 34RAS09AL3 34RAS41AX3 Loctite® Models 5.7:1 Gear Assembly: 201896PT “F” 24RAA07AL2 34RAA11AL2 8:1 Gear Assembly: 201895 24RAA07AL3 34RAA11AL3...
- Page 11 823223EN Cleco ® 09/02/2015 4.5:1, 5.7:1 and 8:1 Gear Assemblies Illustration "E" Number Description 201878 Gear Case Assembly 869584 Spacer 865862 Pinion 203782PT Idler Gear (15T) 869949 Thrust Washer 204891 Gear Cage 204931 Gear Case 204962 Ball Bearing 204803 Retaining Ring...
- Page 12 823223EN Cleco ® 09/02/2015 Gear Assembly Models “G” 13.4:1 Gear Assembly: 201877 24RAA12AL2 34RAA26AH3 24RAA12AL3 34RAA26AM3 24RAA19AM3 34RAA75AZ3 24RAS21AM3 34RAA75AZ4 34RAS28AH3 Loctite® Loctite® Page 12 maku GmbH & Co. KG - Fon: 07151/903 95 0 - Fax: 07151/903 95 99 - info@maku-industrie.de...
- Page 13 823223EN Cleco ® 09/02/2015 Gear Assembly Illustration "G" Number Description 201877 Gear Case Assembly 869584 Spacer 582126 Pinion 205848PT Idler Gear (15T) 204888 Gear Cage 204893 Gear Case 203783PT Idler Pin 582122 Idler Gear (15T) 204892 Gear Cage 204895 Retaining Ring...
- Page 14 823223EN Cleco ® 09/02/2015 Gear Assembly Models “H” 16:1 Gear Assembly: 201876 24RAA23AM3 34RAA28AH3 34RAA33AX3 34RAS36AX3 Loctite® Loctite® Page 14 maku GmbH & Co. KG - Fon: 07151/903 95 0 - Fax: 07151/903 95 99 - info@maku-industrie.de...
- Page 15 823223EN Cleco ® 09/02/2015 Gear Assembly Illustration "H" Number Description 201876 Gear Case Assembly 869584 Spacer 867902 Pinion 203782PT Idler Gear (15T) 204887PT Gear Cage 204886 Gear Case 203783PT Idler Pin 203781PT Idler Gear (15T) 205830PT Gear Cage 204895 Retaining Ring...
- Page 16 823223EN Cleco ® 09/02/2015 Stall Spindle Assembly “I” Models 24RAS Series 34RAS Series Loctite® Loctite® Page 16 maku GmbH & Co. KG - Fon: 07151/903 95 0 - Fax: 07151/903 95 99 - info@maku-industrie.de...
- Page 17 823223EN Cleco ® 09/02/2015 Stall Spindle Assembly Illustration "I" Number Description 204942 O-Ring 412055 Retaining Ring Table "I" Spindle Table "I" Spindle 842517 Ball Bearing Table "I" Clutch Housing Table "I" Clutch Housing Table "I" Adjustment Cover (#) Quantity (X) Recommended Spare Parts (quantity shown based on 1-5 tools in operation) Table "I"...
- Page 18 823223EN Cleco ® 09/02/2015 Clecomatic Clutch Models “J” Clutch: 201870, 201872, 201873, 201983PT 24RAA06 34RAA08 24RAA07 34RAA11 24RAA11 34RAA15 24RAA12 34RAA37 24RAA26 34RAA47 34RAA68 34RAA75 Loctite® Page 18 maku GmbH & Co. KG - Fon: 07151/903 95 0 - Fax: 07151/903 95 99 - info@maku-industrie.de...
- Page 19 823223EN Cleco ® 09/02/2015 Clecomatic Clutch Illustration "J" Number Description Table "J" Trip Rod Table "J" Clutch Assembly (includes Ref. 2-20) 204881 Clutch Cam 203612 Trip Slide 203613 Reset Spring 842274 28 Steel Ball (5/32") 204876 Retaining Ring 617226 Dowel Pin...
- Page 20 823223EN Cleco ® 09/02/2015 Clecomatic Clutch Models “K” Clutch: 201867PT, 201897 24RAA19 34RAA26 24RAA23 34RAA28 34RAA33 Loctite® Page 20 maku GmbH & Co. KG - Fon: 07151/903 95 0 - Fax: 07151/903 95 99 - info@maku-industrie.de...
- Page 21 823223EN Cleco ® 09/02/2015 Clecomatic Clutch Illustration "K" Number Description Table "K" Trip Rod Table "K" Clutch Assembly (includes Ref. 2-19) 204875 Clutch Cam 842161 30 Steel Ball (3/16") 202748PT Ball Plug 204876 Retaining Ring 204870 Trip Plunger 202763PT Reset Spring...
- Page 22 823223EN Cleco ® 09/02/2015 Right Angle Attachment 301011: 1/4” Square Drive (Code AL2) “L” 201887: 3/8” Square Drive (Code AL3) 3/4” Socket Loctite® Angle Head Wrench Code 204810 204994 M, H 889459 Page 22 maku GmbH & Co. KG - Fon: 07151/903 95 0 - Fax: 07151/903 95 99 - info@maku-industrie.de...
- Page 23 823223EN Cleco ® 09/02/2015 Right Angle Attachment Illustration "L" Number Description Table "L" Right Angle Attachment (includes Ref. 1-18) 204475PT Retaining Ring 204930 Coupling Nut 204958 Bearing Retainer 847095 Pinion Bearing 204950 Bearing Spacer 845845 Needle Bearing 204900 Bevel Gear Set...
- Page 24 823223EN Cleco ® 09/02/2015 Right Angle Attachment “M” 201889: 3/8” Square Drive (Codes AM3 & AH3) Loctite® Loctite® * Note: Do not reuse nut. Replace with new if disassembled. Page 24 maku GmbH & Co. KG - Fon: 07151/903 95 0 - Fax: 07151/903 95 99 - info@maku-industrie.de...
- Page 25 823223EN Cleco ® 09/02/2015 Right Angle Attachment Illustration "M" Number Description 201889 Right Angle Attachment (includes Ref. 1-16) 204475PT Retaining Ring 204930 Coupling Nut 204958 Bearing Retainer 847095 Pinion Bearing 204951 Bearing Spacer 11700 Needle Bearing 204897 Bevel Gear Set...
- Page 26 823223EN Cleco ® 09/02/2015 Right Angle Attachment “N” 201890: 3/8” Square Drive (Code AX3) Loctite® Page 26 maku GmbH & Co. KG - Fon: 07151/903 95 0 - Fax: 07151/903 95 99 - info@maku-industrie.de...
- Page 27 823223EN Cleco ® 09/02/2015 Right Angle Attachment Illustration "N" Number Description 201890 Right Angle Attachment (includes Ref. 1-15) 204475PT Retaining Ring 204930 Coupling Nut 204958 Bearing Retainer 204947 Pinion Bearing 204952 Bearing Spacer 863360 Needle Bearing 204898 Bevel Gear Set...
- Page 28 823223EN Cleco ® 09/02/2015 Right Angle Attachment 301006PT: 3/8” Square Drive (Code AZ3) “O” 201979: 1/2” Square Drive (Code AZ4) Loctite® Loctite® Page 28 maku GmbH & Co. KG - Fon: 07151/903 95 0 - Fax: 07151/903 95 99 - info@maku-industrie.de...
- Page 29 823223EN Cleco ® 09/02/2015 Right Angle Attachment Illustration "O" Number Description Table "O" Right Angle Attachment (includes Ref. 1-18) 204475PT Retaining Ring 204930 Coupling Nut 204958 Bearing Retainer 204947 Pinion Bearing 205764 Bearing Spacer 203253 Needle Bearing 203440 Pinion Gear...
- Page 30 823223EN Cleco ® 09/02/2015 Service Notes Clecomatic Clutch: Trip Rod Sizing Position the head without the trip rod installed. Until the tool starts, +3/4 to 1 turn Tighten all joints. Remove this amount from trip rod. Clecomatic Clutches: 201867 & 201897...
- Page 31 823223EN Cleco ® 09/02/2015 Service Notes Motor Assembly Disassembly: Replace Replace Reassembly: .0010” (.0254mm) .0015” (.0381mm) 24 Series: 1.598” (40.6mm) 34 Series: 1.998” (50.7mm) Page 31 maku GmbH & Co. KG - Fon: 07151/903 95 0 - Fax: 07151/903 95 99 - info@maku-industrie.de...
