QUINTA PRO RANGE
Suggested Schematics with Control
and Power Wiring Details
SUPER CONDENSING
HIGH EFFICIENCY
FULLY MODULATING
107% NCV ≥ 82/71°C
108.9% NCV ∆T 50/30°C
BOILER CONTROL
High efficiency wall hung condensing boiler
with ultra low NOx emissions
PANTONE 287 EC
PANTONE 2985 EC
PANTONE
Process Black EC
QUINTA PRO RANGE OUTPUTS
QP30:
8.0 - 31.4 kW
QP45:
8.0 - 43.0 kW
QP65:
12.0 - 65.0 kW
QP90:
14.1 - 89.5 kW
QP115: 16.6 - 114.0 kW
PANTONE
PANTONE 287 EC
PANTONE 2985 EC
Process Cyan EC
PREMIX BURNER
ULTRA LOW NOx
CLEAN COMBUSTION
BREEAM EXCELLENT
PANTONE 200 EC
PANTONE 376 EC
PANTONE
Process Cyan EC
RECYCLABLE
MATERIALS
Advertisement
Related Manuals for REMEHA Quinta Pro 30
Summary of Contents for REMEHA Quinta Pro 30

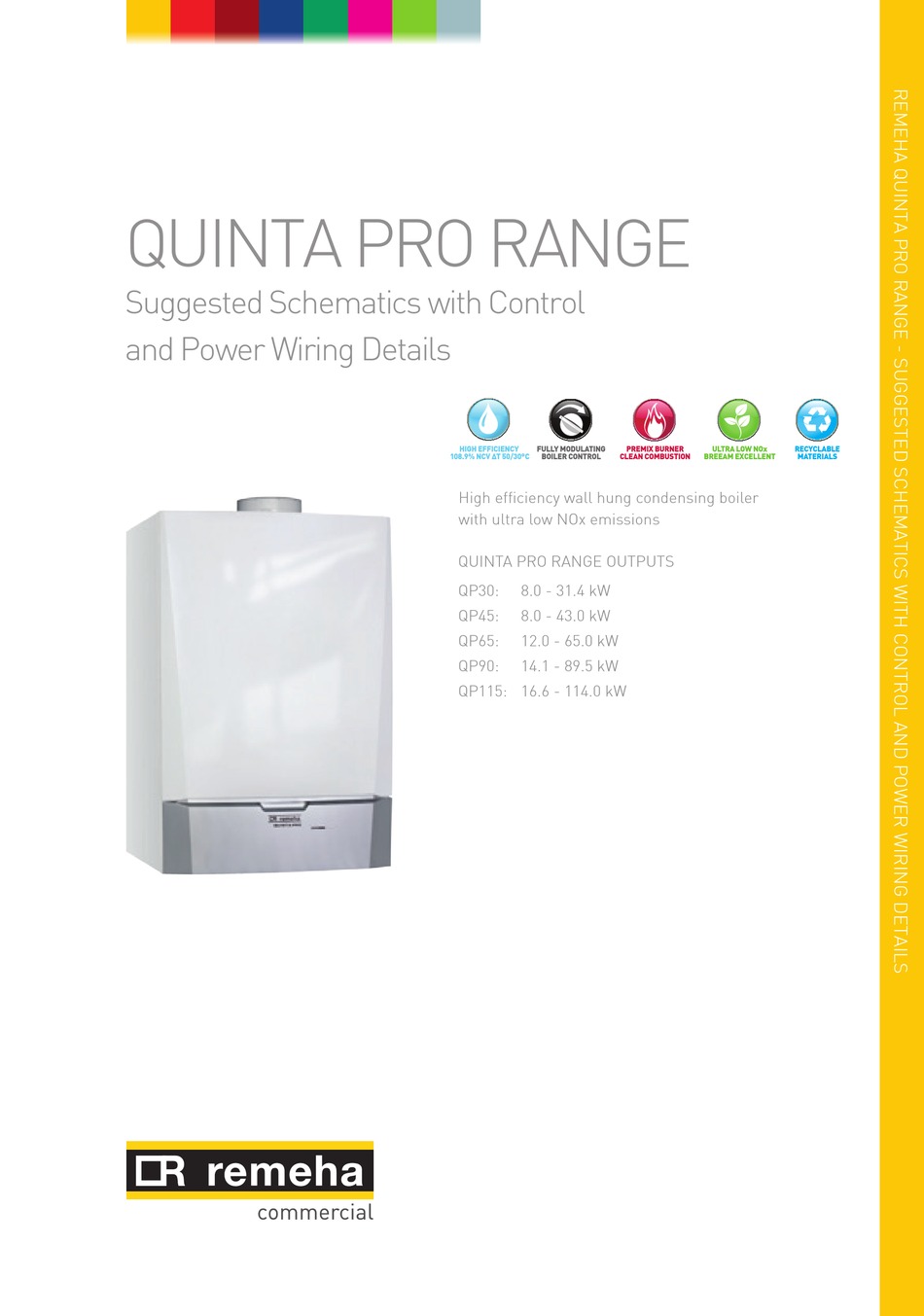

- Page 1 QUINTA PRO RANGE Suggested Schematics with Control and Power Wiring Details SUPER CONDENSING HIGH EFFICIENCY FULLY MODULATING PREMIX BURNER ULTRA LOW NOx RECYCLABLE 107% NCV ≥ 82/71°C 108.9% NCV ∆T 50/30°C BOILER CONTROL CLEAN COMBUSTION BREEAM EXCELLENT MATERIALS High efficiency wall hung condensing boiler with ultra low NOx emissions PANTONE 287 EC PANTONE 2985 EC...
- Page 2 Note: We supply the Grundfoss 25/80 (Part No. S101621) as standard for the full Quinta Pro range. This will alter due to changes in EU regulations. The Quinta Pro 30 will operate on speed 1, the 45 and 65 will operate on speed 2, and the 90 and 115 will operate on speed 3. They are intended to act as a shunt pump.
- Page 3 Control Options for the Quinta Pro 30 / 45 / 65 / 90 and 115 series The Remeha range of Quinta Pro boilers are supplied as standard with an “Open Therm” control interface which enables direct weather compensation using Remeha single and multi boiler controls.
- Page 4 Simple Quinta Pro boiler domestic installation Typical ‘S’ plan, heating and hot water (Time and temperature control by others) Power Supply • Boiler requires a permanent 230v single phase supply fused at 6.3 amps connected to the factory fitted fly lead Boiler Control Settings (see 5.7.2 in technical documentation) •...
- Page 5 Quinta Pro single boiler heating and dome s tic hot wa ter, using a simple ‘S’ Pla n Quinta Pro single boiler heating and dome s tic hot wa ter, using a Single Quinta Pro boiler, heating and domestic hot water, simple ‘S’...
- Page 6 Single Quinta Pro boiler, heating only (Time and temperature control by others) Power Supply • Boiler requires a permanent 230v single phase supply fused at 6.3 amps connected to the factory fitted fly lead Boiler Interlocks (for pressure switches etc.) •...
- Page 7 Quinta Pro single boiler heating only Single Quinta Pro boiler, heating only Quinta Pro single boiler heating only QP 002 QP 002 QP 002 QP 002A QP 002A QP 002A...
- Page 8 Single Quinta Pro boiler, heating only with low loss header (Time and temperature control by others) Power Supply • Boiler requires a permanent 230v single phase supply fused at 6.3 amps connected to the factory fitted fly lead Boiler Interlocks (for pressure switches etc.) •...
- Page 9 Quinta Pro single boiler heating only with loss heading Single Quinta Pro boiler, heating only with low loss header Quinta Pro single boiler heating only with loss heading QP 003 QP 003 QP 003 QP 003A QP 003A QP 003A...
- Page 10 SCU – S02 Important: When using the Remeha supplied low loss header and pump kit and the DHW diverting valve or primary pump kit, the calorifier must be sited within 3M of the boiler. In both cases, the DHW cylinder must be a high recovery unit capable of accepting the full or adjusted DHW output of the...
- Page 11 Quinta Pro single boiler heating with priority hot water using a low loss header. 3-way valve DHW priority Quinta Pro 30/45/65 only loss header. Three way valve DHW priority Quinta Pro 30/45/65 only loss header. Three way valve DHW priority Quinta Pro 30/45/65 only...
- Page 12 Contactor or relay required if both pumps to a 230v fused Time/temp control PM1 and SH1 loading exceeds 1.5 amps Wiring detail of controls when using a Remeha 230v fused spur for boiler HTG (volt free) Commercial Calorifier...
- Page 13 Wiring detail of controls when using a Remeha Commercial Calorifier. If using a different type of calorifier, please follow manufacturer’s instructions regarding control and wiring details. QP004D QP 004D QP004D Wiring detail of controls when using a Remeha Commercial Calorifier with a 2 Port spring return valve and an iSense or Open Therm controller.
- Page 14 Single Quinta Pro boiler, heating only using the iSense controller (room or weather or room/weather compensated) Power Supply • Boiler requires a permanent 230v single phase supply fused at 6.3 amps connected to the factory fitted fly lead Boiler Interlocks (for pressure switches etc.) •...
- Page 15 Quinta Pro single boiler heating only room compensation using the Single Quinta Pro boiler, heating only, room compensation using the Quinta Pro single boiler heating only room compensation using the iSense controller iSense controller iSense controller Normal position for the iSense controller mounted in reference room within the building Normal position for the iSense controller (room compensation)
- Page 16 Single Quinta Pro boiler heating only using the iSense controller Single Quinta Pro boiler heating only using the iSense controller Single Quinta Pro boiler, heating only using the iSense controller Note: Control PCBs are shown diagrammatically Earths are omitted for clarity Factory fitted iSense controller supply lead to...
- Page 17 Single Quinta Pro boiler, heating with hot water priority, heating room or weather compensated with the iSense controller (Optimising/Weather compensated heating with timed hot water) Power Supply • Boiler requires a permanent 230v single phase supply fused at 6.3 amps connected to the factory fitted fly lead Boiler Interlocks (for pressure switches etc.)
- Page 18 Three way valve hot water priority Quinta Pro 30/45/65 only Three way valve hot water priority Quinta Pro 30/45/65 only 3-way valve hot water priority Quinta Pro 30/45/65 only...
- Page 19 Single Quinta Pro boiler, heating and priority hot water using the iSense controller (3 Port valve option) Outside Factory fitted iSense controller 3 way valve Sensor supply lead to Pump PM1 Note: Control PCBs are shown diagrammatically be connected Earths are omitted for clarity to a 230v fused Calorifier spur for boiler...
- Page 20 Multiple Quinta Pro boilers, heating only, outside weather or room compensation with the Celcia MC4 and iSense controller with a low loss header (Optimising/weather compensated) Power Supply • Boilers require a permanent 230v single phase supply fused at 6.3 amps connected to the factory fitted fly lead Boiler Interlocks (for pressure switches etc.)
- Page 21 Multiple Quinta Pro boilers, HTG only using a low loss header, outside weather/room compensation with the Celcia MC4 and iSense controller Normal position for the iSense Normal position for the iSense controller mounted in reference controller mounted in reference room within the building room within the building 100m Max 100m Max...
- Page 22 Domestic Hot Water • When using the Remeha supplied low loss header and pump kit and the hot water diverting valve or primary pump kit, the calorifier must be sited within 3m of the boiler. In both cases, the hot water calorifier must be a high recovery unit capable of accepting the full or adjusted hot water output of the boiler being used (reference parameter P18) •...
- Page 23 (Hot water produce by single boiler only - 3 port valve) (Hot water produce by sing le boiler only - 3 port valve) (Hot water produce by sing le boiler only - 3 port valve) Quinta Pro 30/45/65 only Normal position for the iSense Normal position for the iSense...
- Page 24 Quinta Pro multiple boilers heating and priority hot water using a Quinta Pro multiple boilers heating and priority hot water using a Multiple Quinta Pro boilers, heating and priority hot water using a low loss, outside weather or room compensation with the Celcia low loss, outside weather or room compensation with the Celcia low loss header, outside weather or room compensation with the MC4 and iSense controller.
- Page 25 (1 x AD124 -1.5m). Systems with two circuits will require two extra flow sensors (AD199). All installations and fitting instructions are supplied with the iSense Pro kits or available via our website www.remeha.co.uk Basic Two Boiler Kit: Quinta Pro Option AD244 Kit No.
- Page 26 iSense Pro Controller Kit Options The options illustrated show the four types of controls available. The difference with the first three kits depends on which type of internal sensor/control is used. KT1089: the basic internal sensor, no adjustment is available KT1090: the inside sensor can be used to adjust the room temperature KT1091: includes a digital remote control which not only acts as a sensor but changes can be made to the main controller which includes set point temperatures and it can also override...
- Page 27 A separate volt free time control will have to be used (not supplied by Remeha Commercial) • The following diagrams QP009 to QP009E show systems with two zones.
- Page 28 Quinta Pro multiple boiler HTG only using a low loss header outside, Quinta Pro multiple boiler HTG only using a low loss header outside, Multiple Quinta Pro boilers, HTG only using a low loss header, weather/room compensation with iSense Pro controller. weather/room compensation with iSense Pro controller.
- Page 29 HWS Primary Pump Some earths omitted for clarity On/off On/off On/off Wiring detail of controls when using a Remeha Diagram shows both heating Commercial Calorifier with a 2 port spring return circuits connected (B-C). Delete 2 Port Spring Return valve. If using a different type of calorifier, please...
- Page 30 Diagram shows both heating circuits connected Shunt Pump Factory fitted (volt free) shown diagrammatically Valve and thermostat wiring when using a Remeha Remtank omitted Diagram shows both heating circuits connected (B-C). Delete Thermostat 2 Port (B-C) delete controls /pumps/3 port valves of...
- Page 31 There are various options. Please refer to the Quinta Pro installation booklet. QP 010 Alarm Signal Quinta Pro Nominal flow rates and boiler resistances QP 010 Quinta Pro 30 output Quinta Pro 45 output Quinta Pro 65 output Quinta Pro 90 output Quinta Pro 115 output 29.3kW @ 80/60ºC...
- Page 32 Issue 2 date: Nov 2012 O N T H E P L A N E T Remeha is committed to carbon offsetting...
