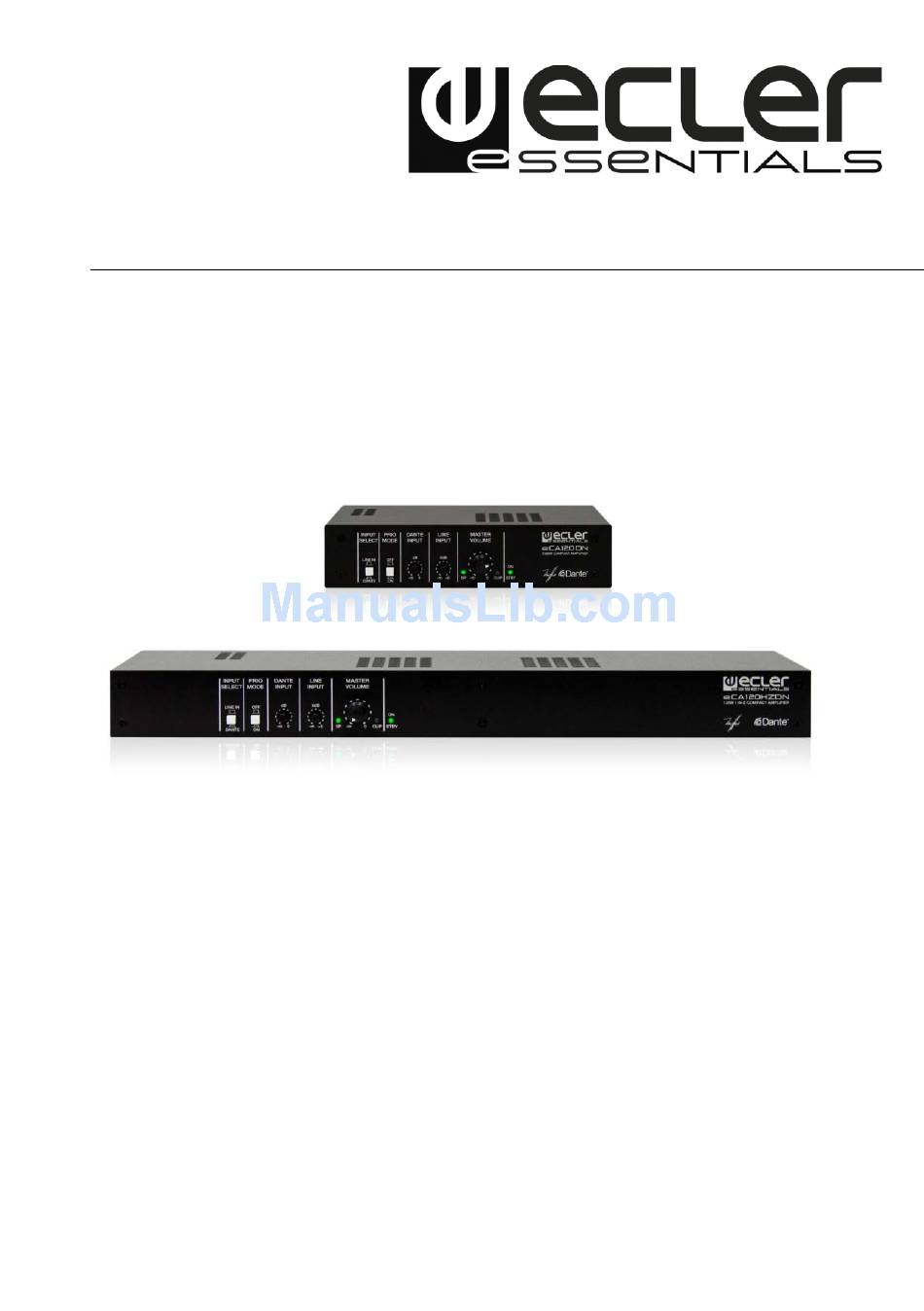

Page 1: User Manual
/ eCA120HZDN COMPACT AMPLIFIERS Dante™ interface amplifier USER MANUAL... - Page 2 SUMMARY Important note Precautions Introduction Key features Positioning and fitting Connecting Operation and usage Cleaning Front panel Rear panel Technical characteristics Block diagram Packing content...
-
Page 3: Important Note
Congratulations. You now own the result of a well-designed, carefully produced manufacture. We thank you for your trust by having chosen our eCA120DN / eCA120HZDN amplifier with Dante™ interface. To achieve its maximum working order and performance, it is VERY IMPORTANT, before connecting, to read this manual carefully. -
Page 4: Key Features
ECLER WPm wall-panel control series. Universal external power supply included. eCA120HZDN is a 120 WRMS @ 70V / 100V efficiency (class D) mono compact amplifier for high impedance lines, with the same features than eCA120DN. -
Page 5: Positioning And Fitting
/ eCA120HZDN is suitable for installation on a wall or under a surface POSITIONING AND FITTING (table, shelf, cupboard, etc.), thanks to its design and layout of its connectors, controls and LED indicator lights. Along with the optional 1UHRMKIT accessory (not included), it is also possible to install the unit in a standard 19”... - Page 6 Dante™ audio inputs eCA120DN / eCA120HZDN allows the reception of 2 Dante™ audio signals via Ethernet by means of an RJ-45 connector. Routing of Dante™ audio signals trough the Ethernet network is achieved thanks to the Dante ™ Controller software. To learn more, check the developer’s documentation:...
-
Page 7: Operation And Usage
The OUTPUT provides a powered version of the mono-converted input signal. Remember that the total power used by the speakers connected to the eCA120HZDN output should not exceed the maximum power it can provide. - Page 8 Once turned on, the front volume control (VOLUME) and the controller connected to the REMOTE VOLUME port (if any) may be used to set the output volume of the signal powered by the unit. To select the audio input signal, use the switch located at the front panel (INPUT SELECT).
- Page 9 Auto-standby function The AUTO STANDBY function (idle or low consumption mode) means you can install the eCA120DN / eCA120HZDN in inaccessible places and leave the device connected to the mains power supply permanently because when no signal is detected, it automatically goes into standby mode, saving energy.
-
Page 10: Cleaning
/ eCA120HZDN will automatically go into STANDBY or low • consumption mode in the absence of audio signals in its inputs. eCA120DN / eCA120HZDN must not be cleaned with solvents or abrasive substances CLEANING which may damage the prints. Clean using a dry cloth. Under no circumstances allow... -
Page 11: Front Panel
FRONT PANEL 1. INPUT SELECT (audio input) switch 2. PRIO MODE priority function switch 3. DANTE INPUT (Dante™ audio) adjust trimmer 4. LINE INPUT (analogue audio) adjust trimmer 5. MASTER VOLUME control 6. SP (signal presence) indicator light 7. CLIP indicator light 8. -
Page 12: Rear Panel
REAR PANEL 9. DANTE INPUT RJ-45 connector, 10. PRIO RELEASE TIME attenuated signal recovery time switch (FAST / SLOW) 11. AUTO-STBY (ON / OFF) switch 12. LINE INPUT RCA connector 13. LINE INPUT Euroblock connector 14. REMOTE VOLUME RJ-45 connector 15. -
Page 13: Technical Characteristics
TECHNICAL CHARACTERISTICS Analogue input / output eCA120DN eCA120HZDN 2x56W@4Ω 1% THD 2x68W@4Ω 10% THD 98W@ 100Ω 1% THD 100V Power 2x34W@8Ω 1% THD 98W@ 50Ω 1% THD 70V 2x41W@8Ω 10% THD Frequency response 15Hz - 25kHz (-3dB) 75Hz - 25kHz (-3dB) THD+Noise @ 1kHz Full Pwr. -
Page 14: Block Diagram
BLOCK DIAGRAM eCA120DN:... - Page 15 eCA120HZDN:...
-
Page 16: Quick Start Guide
All product characteristics are subject to variation due to production tolerances. NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 information@ecler.es www.ecler.com...
