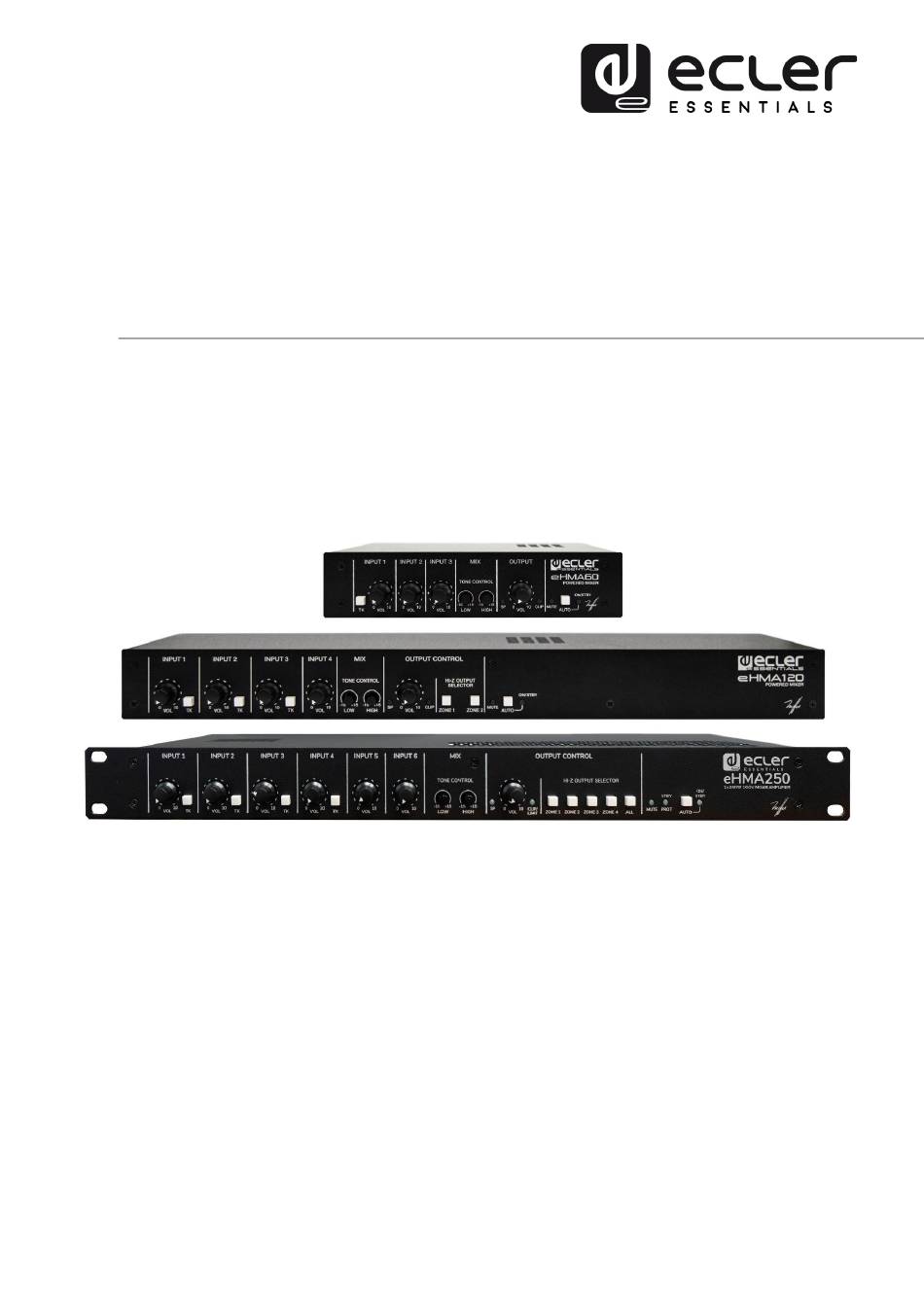

- Page 1 Series AMPLIFIERS Mixing Amplifiers USER MANUAL v.20200429...
-
Page 2: Table Of Contents
INDEX IMPORTANT REMARK ......................3 IMPORTANT SAFETY INSTRUCTIONS ................3 IMPORTANT NOTE ........................5 INTRODUCTION ........................5 INSTALLATION .......................... 6 INPUTS ............................7 OUTPUTS ............................ 8 OPERATION AND USAGE ...................... 9 8.1. Starting up ............................ 9 8.1.1 eHMA60 & eHMA120 ......................9 8.1.2. -
Page 3: Important Remark
IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
-
Page 5: Important Note
IMPORTANT NOTE Thank you for choosing our Ecler eHMA mixing amplifier! VERY IMPORTANT It is to carefully read this manual and to fully understand its contents before any connection in order to maximize your use and get the best performance from this equipment. -
Page 6: Installation

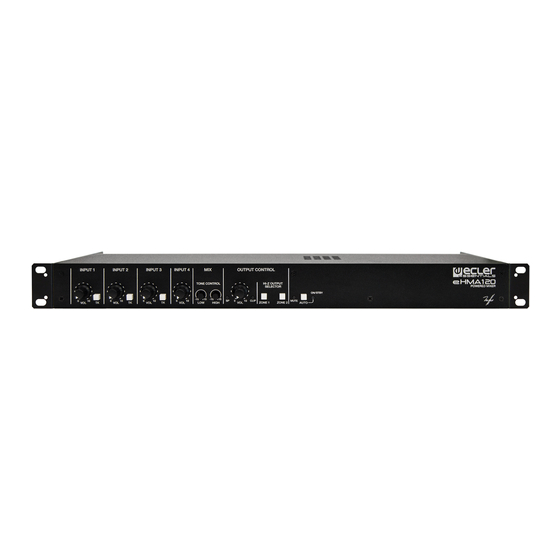

INSTALLATION eHMA series powered mixers are specially designed to be installed in a standard 19" rack, taking up 1U or 2U (eHMA60 is a half-width unit, and optional accessories are available for standard rack mounting). It has been designed to be operated by non-technical users. -
Page 7: Inputs
INPUTS The eHMA inputs support two types of audio signals (mono microphone MIC or stereo LINE). Dual inputs have a MIC/LINE selector located on the rear panel: • Microphone signal: Euroblock connector for a nominal input level from –50dBV (3.16mV) to –20dBV (0.1mV), with a GAIN control on the rear panel to adjust the gain. -
Page 8: Outputs
OUTPUTS The eHMA offers the following powered outputs: • 1 low impedance mono output: all models. eHMA250 also has 250W @ 8Ω output • 1 mono 70/100V line (high impedance) output: eHMA60 • 2 mono 70/100V line (high impedance) zone outputs (Z1 and Z2), with switches on the front panel to enable or disable the speaker line connected to each of them): eHMA120 •... -
Page 9: Operation And Usage
Other connections on the back panel: • AUX/REC output (not available for eHMA60) with a nominal output of 0dBV (10kΩ load). • MUTE remote-control input: to connect an external dry contact closure. It allows connection of fire detection systems and other safety devices that have to mute the mixer by using this control signal. -
Page 10: Equalization
8.2. Equalization The tone controls of the main output provide a ± 15dB gain/attenuation for each of the bands, and their central operating frequencies are 100Hz and 10kHz. 8.3. Ground loops, background noise You should always make sure that the signal sources coming to the mixer, as well as all devices connected to its outputs, do not have their grounds interconnected, that is;... -
Page 11: Function List
FUNCTION LIST 1. Channel volume control, VOL 2. Talkover switch, TK 3. Mix bass control, LOW 4. Mix treble control, HIGH 5. LED indicator, Signal Present 6. Output main volume control, OUTPUT VOL 7. LED indicator, CLIP 8. LED indicator, MUTE 9. -
Page 12: Function Diagram
FUNCTION DIAGRAM... -
Page 13: Block Diagrams
BLOCK DIAGRAMS 12.1. eHMA60 MUSIC -35 dB MIC/LINE ANTICLIP BASS GAIN MASTER IN 1 HP FILTER 100V LINE 0 dB TREBLE -35 dB ATT. MUTE MIC/LINE ON/OFF MUTE CONTROL MUTE GAIN IN 2 LINE 0 dB STBY CONTROL MUTE AUTOSTBY ON / AUTO STBY -35 dB... -
Page 14: Ehma120
12.2. eHMA120 MUSIC 24V BATTERY -35 dB 24V TO CIRCUIT 24V EXT P.SUPPLY IN 1 AUX/REC GAIN PHANTOM ON/OFF -35 dB MIC/LINE BASS 100V GAIN MASTER IN 2 HP FILTER LINE 0 dB TREBLE -35 dB ATT. MUTE MIC/LINE ON/OFF MUTE CONTROL GAIN... -
Page 15: Ehma250
12.3. eHMA250... -
Page 16: Technical Characteristics
TECHNICAL CHARACTERISTICS 9.1. eHMA60 Power output 100V output 60W @ 166Ω 1% THD Low Z output 66 W @ 4Ω 1% THD Frequency response (HPF at 70Hz) 70Hz - 30kHz (-3dB) THD+Noise @ 1kHz Full Power, Speaker Out, <0.08% Line Channel crosstalk @ 1 kHz >65dB Sensitivity / Nominal impedance... -
Page 17: Ehma120
9.2. eHMA120 Power output Low Z output 95W @ 4Ω 1% THD 100V output 95W @ 100Ω 1% THD Frequency response (HPF at 70Hz) 70Hz - 25kHz (-3dB) THD+Noise @ 1kHz Full Power, Speaker Out, <0.2% Line Channel crosstalk @ 1 kHz >65dB Sensitivity / Nominal impedance INPUT 2 LINE... -
Page 18: Ehma250
9.3. eHMA250 eHMA250 Inputs INPUTS 1-2 Type Mono, balanced Connectors Euroblock Nominal Impedance >1kΩ Phantom power +15VDC (ON/OFF ext switch) Sensitivity -20 to -50dBV CMRR >65dB @ 1kHz Talkover Time: 2 sec. Depth: -30dB INPUTS 3-4 MIC / LINE Type Mono, balanced / Stereo, unbalanced Euroblock / RCA Connectors... - Page 19 Auto Standby MUTE time 2 min 10 min STANDBY time Trigger Level -40dB Supply Mains 100-240VAC, 50-60Hz Power Consumption Pink noise, 1/8 power Pink noise, 1/3 power Standby mode (time: 2 min) Efficiency (typical) Mechanical Dimensions (WxDxH) 435x220x44mm / 17,1”x8,7”x1,7” Weight 3kg / 6,6 lb.
- Page 20 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
