Frame Features - Intense Cycles ACV User Manual

frame
features /
spec
4 / / A C V u s e r m a n u a l

Frame Features //

• Adjustable Travel: 4.5" to 5" (115mm OR 130mm)
• 27.5+" Wheel size
• 5.3 lbs / 2,420 grams = Standard frame w/ alloy link, no shock, size m
• Tapered Head Tube
• Monocoque front triangle
• Integrated BOOST 148 x 12 dropouts
• Internal Brake and Derailleur Cable Routing System
• Internal Seat Tube Cable Routing for dropper posts
• Angular Contact/Collet Bearing System with replaceable Grease Zerks
• Flack guard Downtube and Chainstay protection
• H20 Bottle Fitment
Component Spec //
• Fork – 1.5" tapered steer, 150mm Travel, 561mm lower leg length, 51mm offset
• Shock – 200mm x 50.8mm (7.875" x 2"), 22mm x 6mm and 30mm x 6mm reducers
• 1x gearing only
• Seat post – 31.6mm
• Headset – zero stack 44 upper / external cup 49 lower
• Bottom bracket - Press Fit BB92
• Rear Axle – BOOST 148 x 12 T/A
• Brake Mount – post mount for 160mm rotor
• Crank set - BOOST 148 Compatible - single ring only
• Rear Wheel - BOOST 148 Compatible

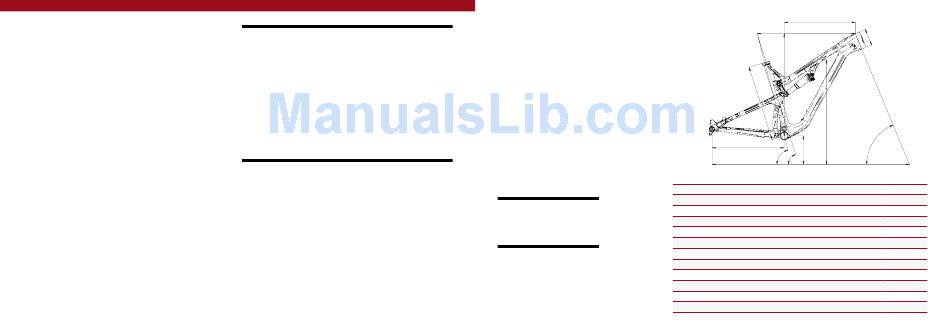

Geometry
GEOMETRY NOTEs
GEOMETRY TAKEN AT TOP OUT WITH 561MM
FORK LENGTH AND 51MM FORK OFFSET.
Component spec NOTE
the Acv is designed around the use of
single chain ring. Use of a double or
triple ring set will not allow proper
clearance with the frame.
F
B
G
K
C
H L
I J
A
SMALL MEDIUM LARGE
A Wheel Base: 1146 mm/ 45.1" 1172 mm/ 46.1" 1199 mm/ 47.2"
B Top Tube Length: 573 mm/ 22.6" 599 mm/ 23.6" 624 mm/ 24.6"
C Chain Stay Length: 438 mm/ 17.25" 438 mm/ 17.25" 438 mm/ 17.25"
D Head Tube Length: 94 mm/ 3.7" 102 mm/ 4" 114 mm/ 4.5"
E Head Tube Angle: 66.25˚ 66.25˚ 66.25˚
F
Reach: 394 mm/ 15.5" 416 mm/ 16.4" 438 mm/ 17.25"
G Stack: 620 mm/ 24.4" 628 mm / 24.7" 640 mm/ 25.2"
H BB Height: 334 mm/ 13.15" 334 mm/ 13.15" 334 mm/ 13.15"
I
Seat Tube Angle (Effective): 73.8˚ 73.8˚ 73.8˚
J Seat Tube Angle (Actual): 71˚ 71˚
K Seat Tube Length: 433 mm/ 17" 458 mm/ 18" 484 mm/ 19"
L Standover Height: 801 mm/ 31.55" 805 mm/ 31.68" 810 mm/ 31.9"
I N T E N S E C Y C L E S
D
E
XLarge
1225 mm/ 48.2"
651 mm/ 25.6"
438 mm/ 17.25"
119 mm/ 4.7"
66.25˚
463 mm/ 18.2"
645 mm/ 25.4"
334 mm/ 13.15"
73.8˚
71˚ 71˚
509 mm/ 20"
813 mm/ 32"
/ / 5
