1 4 / / A C V u s e r m a n u a l

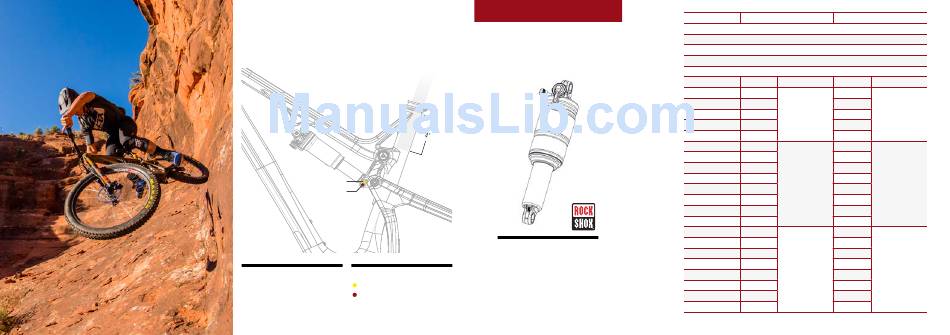

set up
upper mount
lower mount
seatpost adjustable travel
make sure to insert seat post at least upper mount: 130mm
4" into the main frame. Anything less lower mount: 115mm
than this amount could cause damage
to the frame or even failure.

shock setup

rock shox monarch rt3 200x51mm
set up and tune
proper set up and tuning can
vary from shock to shock. Please
consult the rockshox manual
included with your bike for complete
information about set up, tuning
and general maintenance or visit
www.sram.com/rockshox/products
Travel 115 mm
Shock Stoke 51 mm
Shock Sag 20% when sitting on the bike
Fork Sag 25-30% when sitting on the bike
SHOCK: ACV Pro Rock Sho x Monarch RT3 200 x 51 mm DB2 MM S 320
SHOCK: ACV Foundation Rock Sho x Monarch R 200 x 51 mm DB2 MM S 320
RIDER WEIGHT (LBS/KGS) SPRING (PSI) REBOUND (clicks out) SPRING (PSI)
100 lbs / 45 kgs
89 99
110 lbs / 50 kgs 104 114
120 lbs / 54 kgs 120 2 to 3 130
130 lbs / 59 kgs
136 146
140 lbs / 63.5 kgs 151 161
150 lbs / 68 KGS 167 177
160 lbs / 73 kgs 182 192
170 lbs / 77 kgs 198 208
180 lbs / 82 kgs 213 223
3 to 4
190 lbs / 86 kgs 229 239
200 lbs / 91 kgs
244 254
210 lbs / 95 kgs 260 270
220 lbs / 100 kgs 275 285
230 lbs / 104 kgs
291 301
240 lbs / 109 kgs 306 316
250 lbs / 113 kgs 322 332
260 lbs / 118 kgs 337 347
5 to 6
270 lbs / 122 kgs 353 363
280 lbs / 127 kgs 368 378
290 lbs / 131.5 kgs 384 394
300 lbs / 136 kgs 399 409
