Godox V860IIO Instruction Manual
  1. Manuals
  2. Brands
  3. Godox Manuals
  4. Camera Flash
  5. V860IIO
  6. Instruction manual

Godox V860IIO Instruction Manual

For olympus/panasonic
Hide thumbs
Table of Contents

Advertisement

Quick Links

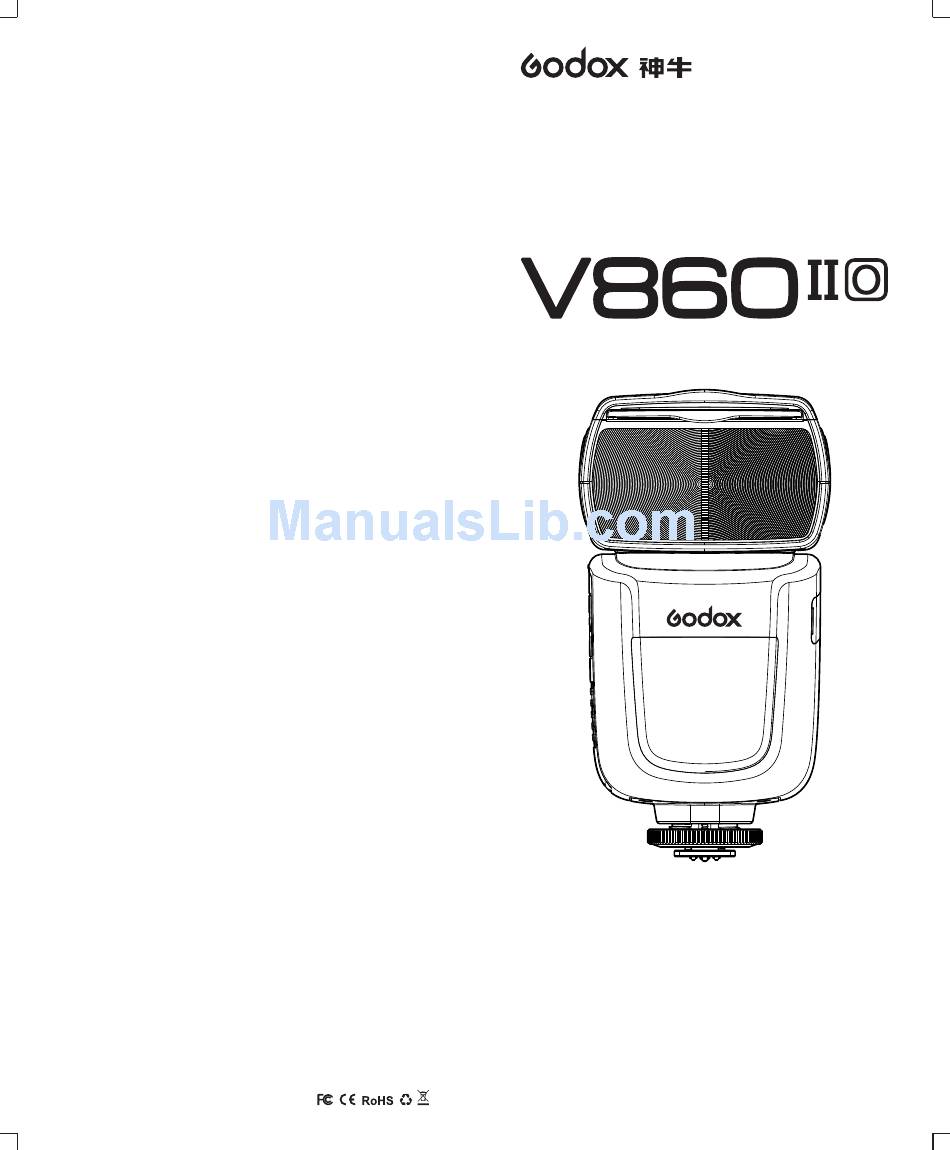

Enlarged version
深圳市神牛摄影器材有限公司
GODOX Photo Equipment Co., Ltd.
地址/Add: 深圳市宝安区福永镇福洲大道西新和村华发工业园A4栋
Building A4, Xinhe Huafa Industrial Zone, Fuzhou RD West, Fuyong
Town, Baoan District, Shenzhen 518103, China
电话/Tel: +86-755-29609320(8062)
邮箱/E-mail: godox@godox.com
http://www.godox.com
705-V862Z0-00
Made In China
传真/Fax: +86-755-25723423
锂电机顶闪光灯
TTL
Pioneering
TTL Li-ion
For Olympus/Panasonic
INSTRUCTION MANUAL
说
明
中英文双语 / Chinese English Bilingual
在使用本产品之前：
请先仔细阅读本手册，以确保您能安全使用。请保存好本手册以备将
来查询参考。
Before using this product:
Please read this user manual carefully in order to ensure your safety
and the proper operation of this product. Keep for future reference.
Camera Flash
手
册

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V860IIO and is the answer not in the manual?

Questions and answers

Related Manuals for Godox V860IIO

Summary of Contents for Godox V860IIO

  • Page 1 INSTRUCTION MANUAL 说 明 手 册 中英文双语 / Chinese English Bilingual 深圳市神牛摄影器材有限公司 GODOX Photo Equipment Co., Ltd. 地址/Add: 深圳市宝安区福永镇福洲大道西新和村华发工业园A4栋 在使用本产品之前： Building A4, Xinhe Huafa Industrial Zone, Fuzhou RD West, Fuyong Town, Baoan District, Shenzhen 518103, China 请先仔细阅读本手册，以确保您能安全使用。请保存好本手册以备将 电话/Tel: +86-755-29609320(8062) 传真/Fax: +86-755-25723423 来查询参考。...
  • Page 2 Always keep this product dry. Do not use in rain or in damp conditions. This V860IIO camera flash applies to Olympus/Panasonic series Do not disassemble. Should repairs become necessary, this cameras and is compatible with TTL autoflash. With this TTL product must be sent to an authorized maintenance center.
  • Page 3 Warning Name of Parts Body Control Panel LCD Panel What's in the Box of V860IIO Kit? What's in the Box of V860IIO (only flash unit)? Separately Sold Accessories Battery Attaching to a Camera Power Management Flash Mode: TTL Autoflash FEC (Flash Exposure Compensation) Shutter Sync Settings Flash Mode –...

  • Page 4: Lcd Panel

    ● LCD Panel Name of Parts (1) TTL Autoflash : zoom display (Page 47) Zoom Focus length (Page 47) : High-speed sync : Automatic (Page 37) : Manual(Page 38) : TTL autoflash Distance indicator display : Flash exposure compensation (Page 37) Flash exposure compensation amount ●...

  • Page 5: Battery

    1. Do not short circuit. 2. Do not expose to rain or immerse into water. This battery is not ● What’s in the Box of V860IIO (only flash unit)? water proof. 1. Flash Unit　5. Mini Stand　6. Protection Case　7. Instruction Manual 3.

  • Page 6: Ttl Mode

    To unload the battery, tap the Power Management white knob and the battery pack will pop out. Then close the compartment. Use ON/OFF Power Switch to power the flash unit on or off. Turn off if it will not be used for an extended period of time. Setting as a master flash, it will turn the power off automatically after a certain period (approx.
  • Page 7 Manual Off Camera High-speed Setting (Non-Godox wireless X system) In M manual flash mode, press Function Button 4< > button to...

  • Page 8: Wireless Settings

    For example, if the number of flashes is 10 and the firing frequency is As a slave unit, V860IIO is compatible with Godox X1 series 5 Hz, the shutter speed should be at least 2 seconds.
  • Page 9 Press < > button so that > and < > are Master Unit Setting < ● Attach a V860IIO camera displayed on the LCD panel. flash on the camera and The backlight turns orange set it as the master unit. now.

  • Page 10: Radio Transmission

    Positioning and Operation Range (Example of wireless flash Using Fully Automatic Wireless Flash shooting) The FEC and other settings that set on the master unit will also be ● Autoflash Shooting with One Slave Unit appeared on the slave unit automatically. The slave unit does not need any operation.

  • Page 11: Bounce Flash

    Bounce Flash The Reason & Solution of Not Triggering in Godox 2.4G Wireless By pointing the flash head toward a wall or ceiling, the flash will 1. Disturbed by the 2.4G signal in outer environment (e.g. bounce off the surface before illuminating the subject. This can soften wireless base station, 2.4G wifi router, Bluetooth, etc.)

  • Page 12: The Wide Panel

    ZOOM: Setting the Flash Coverage and Using C.Fn: Setting Custom Functions the Wide Panel The flash coverage can be set automatically or manually. It can be set The following table lists the available and unavailable custom to match the lens focal length from 10 mm to 100mm (4/3 system). functions of this flash.

  • Page 13: Technical Data

    Protection Function Technical Data 1. Over-Temperature Protection Model V860IIO To avoid overheating and deteriorating the flash head, do not fire ● • Type more than 30 continuous flashes in fast succession at 1/1 full Compatible Cameras Olympus/Panasonic cameras power. After 30 continuous flashes, allow a rest time of at least 10 (refer to compatible camera models) minutes.

  • Page 14: Troubleshooting

    Troubleshooting Maintenance If there is a problem, refer to this Troubleshooting Guide. ● Shut down the device immediately should abnormal operation be detected. The Camera Flash cannot be charged. ● Avoid sudden impacts and the product should be dedusted ● The battery is installed in the wrong direction. →Install the battery in the correct direction.
