A. Notes on installing the pneumatic components
1
Positioning range
of the drive
2
Permitted
positioning range
3
Shock absorber
(optional)
4
Positioning range
of the measuring
system

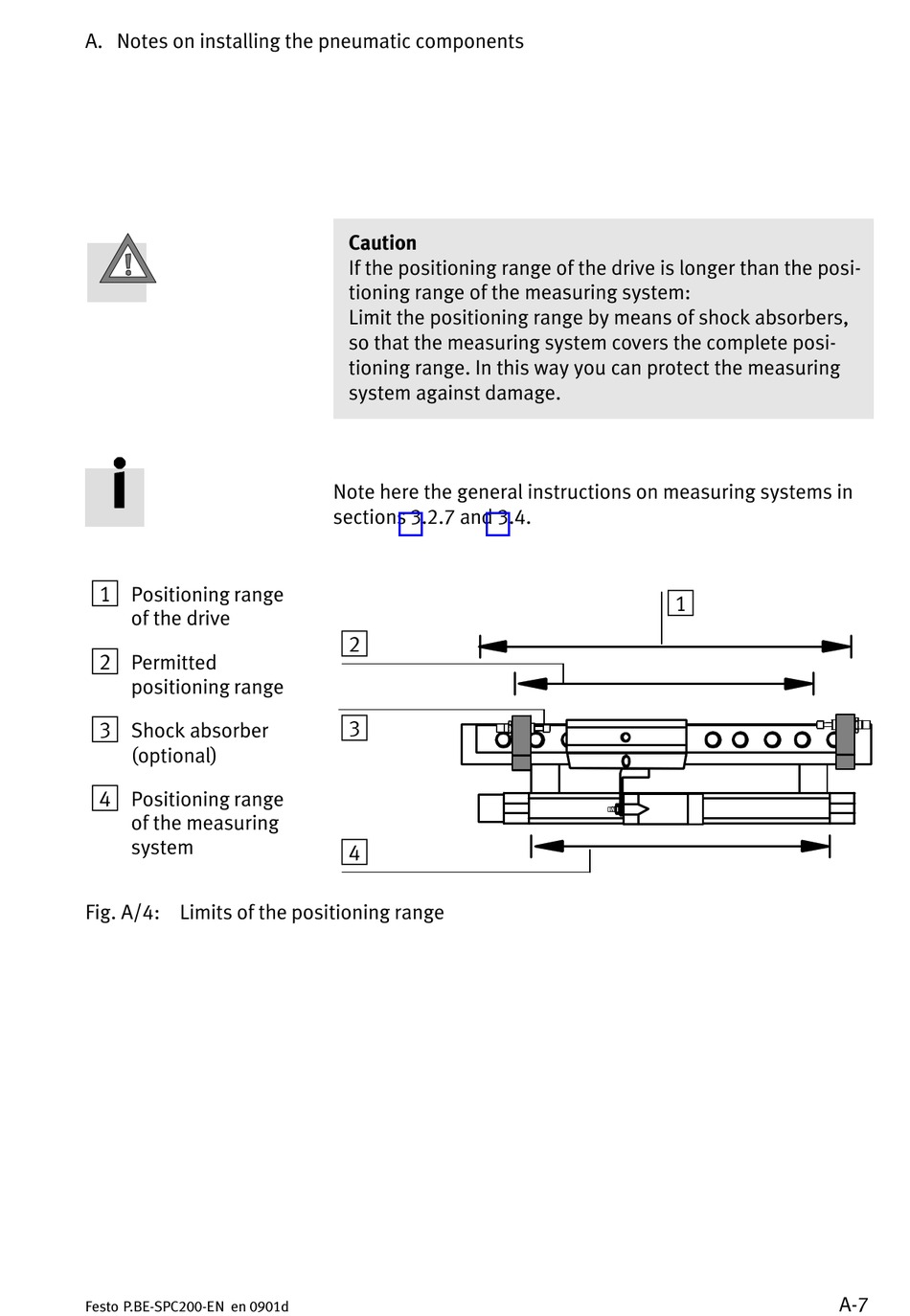

Fig. A/4: Limits of the positioning range
Festo P.BE−SPC200−EN en 0901d
Caution
If the positioning range of the drive is longer than the posi
tioning range of the measuring system:
Limit the positioning range by means of shock absorbers,
so that the measuring system covers the complete posi
tioning range. In this way you can protect the measuring
system against damage.
Note here the general instructions on measuring systems in
sections 3.2.7 and 3.4.
2
3
4
1
A−7
