Metra Electronics 99-5823CH Installation Instructions

For ford mustang 2010-11 (non-nav models)

Download this manual

INSTALLATION INSTRUCTIONS FOR PART 99-5823CH

APPLICATIONS

FORD MUSTANG

2010-11

(NON-NAV MODELS)

99-5823CH

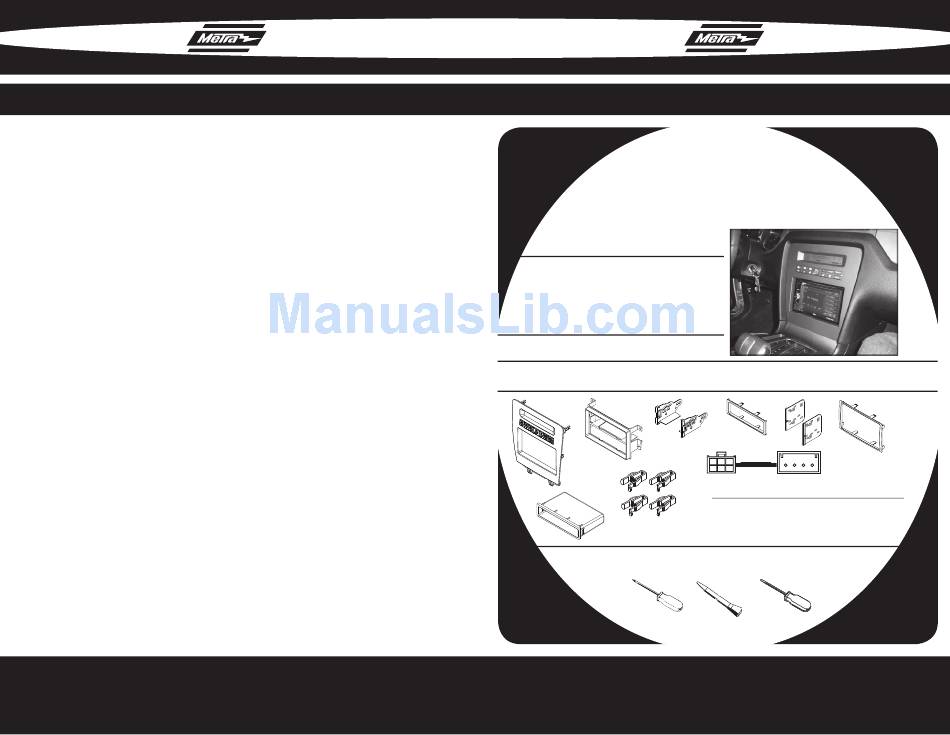

KIT FEATURES

• DIN Head unit provisions with pocket

• ISO DIN Head unit provision with pocket

• DDIN Head unit provision

• ISO Stacked Head unit provision

• Painted charcoal to match factory ﬁ nish

• A) Radio Trim Panel • B) Radio Housing • C) ISO Brackets • D) ISO Trim Plate

• E) DDIN Brackets • F) DDIN Trim Plate • G) Pocket • H) (4) Panel Clips • I) A/C Harness

• Phillips Screwdriver • Panel Removal Tool

• Small Flat Blade Screwdriver

WIRING & ANTENNA CONNECTIONS (SOLD SEPARATELY)

• XSVI-5520-NAV FORD INTERFACE 2006-UP

•40-CR10 CHRYSLER/GM ANTENNA ADAPTER 2002-UP

Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-5823CH INSTALLATION INSTRUCTIONS FOR PART 99-5823CH APPLICATIONS FORD MUSTANG 2010-11 (NON-NAV MODELS) 99-5823CH KIT FEATURES • DIN Head unit provisions with pocket • ISO DIN Head unit provision with pocket • DDIN Head unit provision • ISO Stacked Head unit provision •...
Page 2 99-5823CH DASH DISASSEMBLY FORD MUSTANG 2010-11 Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove the trim panel surrounding the shifter including the cup holders. Remove (2) 9/32” screws from the bottom of the radio panel then unclip and remove the panel.
Page 3: Din Head Unit Provision
Plug the A/C harness into the car side of the climate control plug and the other side into the kit Reassemble dash in reverse order of disassembly using the 99-5823CH radio trim panel instead of the factory radio trim panel.
Page 4 15 seconds. The “TAURUS” will once other side into the kit again be the default display. Reassemble dash in reverse order of disassembly using the 99-5823CH NOTE : Characters are saved into memory immediately whenever changes radio trim panel instead of the factory are made.
Page 5 Plug the A/C harness into the car side of the climate control plug and the other side into the kit Reassemble dash in reverse order of disassembly using the 99-5823CH radio trim panel instead of the fac- tory radio trim panel. METRA ACCESSORIES...
