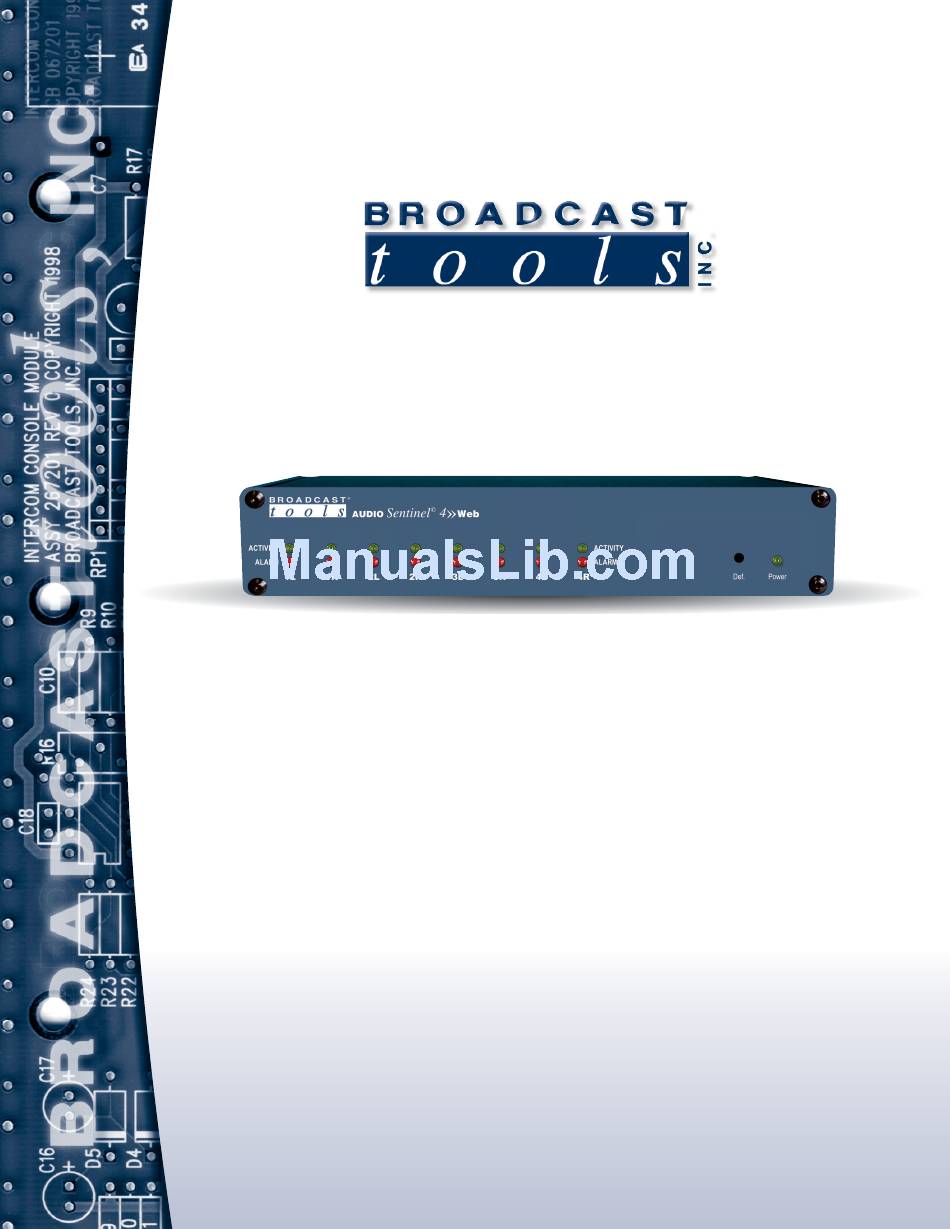

Installation and Operation Manual
Web-enabled four channel stereo/eight channel mono silence monitor.
Manual update: 10/11/17 • For firmware versions equal to or greater than 0.11
If you need a firmware upgrade, contact Broadcast Tools®
No part of this document may be reproduced or distributed without permission.
ALL SPECIFICATIONS AND FEATURES FOR THIS PRODUCT ARE SUBJECT TO
NOTE: We recommend the use of Chrome, Firefox or Safari as your browser.
Due to the dynamic nature of product design, the information contained in this
document is subject to change without notice. Broadcast Tools, Inc., assumes no
responsibility for errors and/or omissions contained in this document. Revisions
of this information or new editions may be issued to incorporate such changes.
Broadcast Tools® is a registered trademark of Broadcast Tools, Inc.
All Sentinel® labeled products are registered trademarks of Broadcast Tools, Inc.
Copyright® 1989 - 2017 by Broadcast Tools, Inc. All rights reserved.
No part of this document may be reproduced or distributed without permission.
Visit www.broadcasttools.com for important product update information.
P R O B L E M S O LV E D
Audio Sentinel
CHANGE WITHOUT NOTICE
®
4 » Web
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Audio Sentinel 4 Web and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Broadcast Tools Audio Sentinel 4 Web

Summary of Contents for Broadcast Tools Audio Sentinel 4 Web

  • Page 1 NOTE: We recommend the use of Chrome, Firefox or Safari as your browser. Due to the dynamic nature of product design, the information contained in this document is subject to change without notice. Broadcast Tools, Inc., assumes no responsibility for errors and/or omissions contained in this document. Revisions of this information or new editions may be issued to incorporate such changes.
  • Page 2 Audio Sentinel ® 4» Web Installation and Operation Manual CAUTION! Broadcast Tools products, as any elec- Table of Contents tronic device, can fail Section Title Page # Introduction............3 Safety Information .

  • Page 3: Introduction

    ® 4» Web Installation and Operation Manual INTRODUCTION CAUTION! Thank you for your purchase of a Broadcast Tools® Audio Sentinel® 4 » Web Web-enabled two channel stereo silence monitor/audio switcher (referred to as the Broadcast Tools® Audio Sentinel 4 throughout this manual). We’re confident that this product will give Products, as with any you many years of dependable service.

  • Page 4: Product Overview

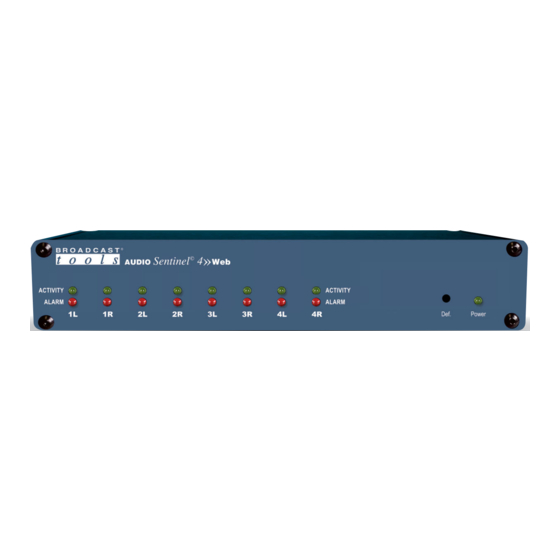

    Audio Sentinel ® 4» Web Installation and Operation Manual Product Overview The Audio Sentinel® 4 >> Web is a web-enabled four channel stereo/eight mono channel silence monitor. All four stereo inputs are balanced and feature pluggable screw terminal-block and StudioHub+ compatible RJ45 inputs wired in parallel for ease of wiring.
