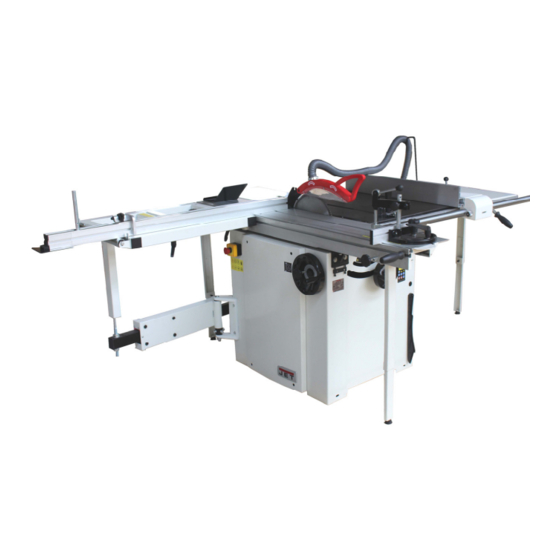

JTSS-1600 Panel Saw Original: Operating Instructions Translations: Gebrauchsanleitung Mode d´emploi JPW (Tool) AG Tämperlistrasse 5 CH-8117 Fällanden Switzerland Phone +41 44 806 47 48 +41 44 806 47 58 www.jettools.com M-10000044T 2016-08... - Page 2 Dé claration de Conformité CE Product / Produkt / Produit: Table saw Tischkreissäge la scie circulaire JTSS-1600 Brand / Marke / Marque: Manufacturer / Hersteller / Fabricant: JPW (Tool) AG, Tämperlistrasse 5, CH-8117 Fällanden Schweiz / Suisse / Switzerland We hereby declare that this product complies with the regulations Wir erklären hiermit, dass dieses Produkt der folgenden Richtlinie entspricht...
- Page 3 Dear Customer, Many thanks for the confidence you have shown in us with the purchase of your new JET-machine. This manual has been prepared for the owner and operators of a JET JTSS-1600 Panel saw to promote safety during installation, operation and maintenance procedures.
-
Page 4: Safety
Any other use exceeds authorization. In the event of unauthorized use of the machine, the manufacturer Use suitable table extensions and supporting aids for difficult renounces all liability and the responsibility is transferred to handle workpieces. exclusively to the operator. Always hold and guide the workpieces safely during machining. -
Page 5: Machine Specifications
Keep children and visitors a safe distance from the work The raving knife thickness must be in between sawblade area. body thickness and width of cut. Never reach into the machine while it is operating or running Make sure that the sawblade is suitable for the work piece down. -
Page 6: Assembly
- Arbor pin - 3, 4, 5, 6 mm "L" wrench 4.2 Noise emission Push stick Determined according to EN 1870-18 (Inspection tolerance 4 dB) (Some parts are inside the main saw unit) Workpiece plywood 16mm: Edge shoe Acoustic power level (according to EN ISO 3746): Idling 98,3 dB (A) Operating... -
Page 7: Transport And Start Up
To avoid machine tiping and for static stability, the table support legs must always be installed and adjusted to the floor. The machine must be levelled in both directions to assure good sliding motion of the sliding table. If possible, the machine must be placed on rubber plates which act as shock absorbers and reduce the noise level. - Page 8 Mounting rip fence rail Insert 4-M10x80 hex head bolts into major table and extension tables. Loosely attach 2-M10 hex nuts to each Attach the diagonal support beam ( Fig 6). bolt. Screw the four bolts into rip fence rail, just 4-5 circles. First tighten two bolts to align the rail parallel With the table.
- Page 9 Mounting the sliding table: Fig 15 Slide two M8x70 carriage bolts with T-blocks into the T-slot of the sliding table, attach with 2 wing nuts. Fig 12 Adjust 4-M12 hex nuts (C) to bring the cross cut table into Lift the sliding table onto the machine and attach with T-bolts same plane with sliding table and machine table.
- Page 10 Place a T-nut into the top slot of fence, thread the stud of hold-down on fence. If need, put the hold down arm onto the stud (E). Reference to chapter 7.8 Mounting Mitre Fence See chapter 7.9 Mounting Sawblade See chapter 7.1 Mounting sawguard The riving knife has slots for different blade sizes Fig 18 Min blade size Ø...
-
Page 11: Machine Operation
(Clockwise direction of the main spindle is correct). For safety reasons this must only be done without the sawblade installed! 5.5 Starting operation You can start the machine with the green On-button. The red Off-button stops the machine. The scoring sawblade is started and stopped simultaneously with the main sawblade. -
Page 12: Setup And Adjustments
Push sticks must have a minimum length of 400mm and a V- The sawblade teeth must point in cutting direction (down) mouth. Always wear suitable gloves when handling sawblades. WARNING: When installing or changing saw blade, always disconnect saw from power source, unplug! Push the sliding table to the front and open the lower sawblade cover. - Page 13 Put the locking pin (N) in the opening The sawguard (O, Fig 26) must always be used. of the saw table and turn the arbor with the spanner until the Attach the saw guard to the raving knife (P), in the slot (S) locking pin engages in the hole in the saw arbor pulley.
- Page 14 Each time the main sawblade is replaced by a new one, or even a newly sharpened sawblade, the scorer has to be adjusted to match the main sawblade teeth width. It is very important that this is done in the correct way to ensure a clean cut, free of splintering.
- Page 15 Crosscut table and telescopic arm are aligned ex works (The table surface must be in level with the sliding table). The crosscut table can be positioned along the sliding table. Start the machine with care. 7.8 Crosscut fence setup Crosscut fence setup shall never be performed when the machine is running.
-
Page 16: Maintenance And Inspection
The rip fence has a micro adjust feature. Lift the handel (1) Main drive belt tensioning: fully and rotate the micro adjust knob (4) Check regularly the condition of the belts and, if necessary, When cross cutting using the parallel fence, to avoid the tighten or replace. -
Page 17: Troubleshooting
The motor break works electro-mechanically (break motor). *Sawdust in mechanisms If breaking time should exceed 10 seconds, the motor break -clean-and regrease. assembly needs to be replaced. Contact your Jet service Sliding table does not move station immediately. *Sawdust in bearing guides -wipe out any sawdust.
