ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included allen wrenches, assembly requires a phillips screwdriver
wrench , and a rubber mallet

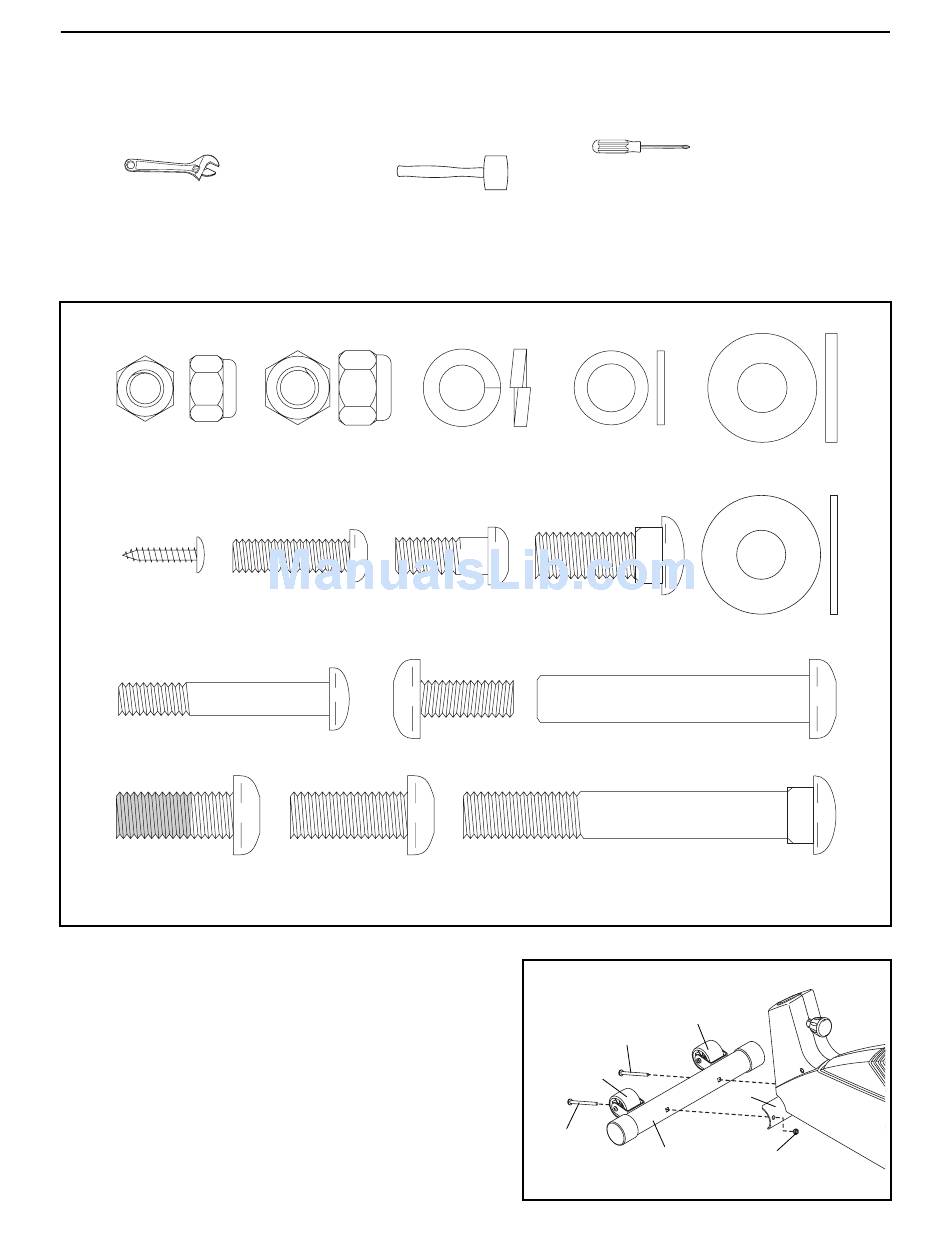

As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts used in assembly.
The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on
page 22. The second number refers to the quantity used in assembly. Note: Some small parts may have been
pre-assembled for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.
M8 Nylon
Locknut (38)–4
M4 x 16mm
Screw (52)–2
M8 x 45mm Button Screw (50)–4
M10 x 27mm
Patch Screw (40)–2
1. Identify the Front Stabilizer (10), which has Wheels (22)
attached to it. While another person lifts the front of the
Frame (1), attach the Front Stabilizer to the Frame
with two M10 x 75mm Carriage Bolts (34) and two
M10 Nylon Locknuts (33). Make sure that the Front
Stabilizer is turned so the Wheels are not touching
the floor.
M10 Nylon
Locknut (33)–4 Washer (59)–6
M6 x 25mm M8 x 19mm Button
Screw (7)–1 Screw (56)–2
M10 x 27mm
Screw (67)–6
.
M10 Split Handlebar
Washer (55)–2
M10 x 27mm
Pedal Bolt (80)–2
M10 Bolt Set (74)–2
M10 x 75mm Carriage Bolt (34)–4
1
34
22
34
5
, an adjustable
M10
Washer (78)–2
Spring Bracket
Washer (35)–2
22
1
10
33
