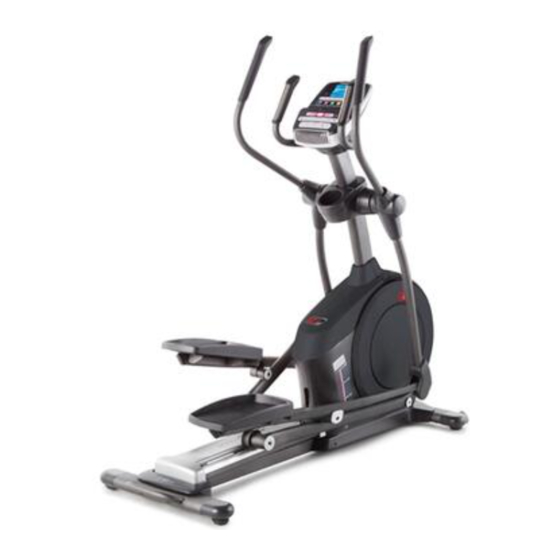

Model No. PFEL08011.4
USER’'S MANUAL
Serial No.
Write the serial number in the space
above for reference.
Serial Number Decal
ACTIVATE YOUR
WARRANTY
To register your product and
activate your warranty today,
go to www.proformservice.com/
registration.
CUSTOMER CARE
For service at any time, go to
www.proformservice.com.
Or call 1-888-533-1333
Mon.––Fri. 6 a.m.––6 p.m. MT
Sat. 8 a.m.––4 p.m. MT
Please do not contact the store.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 710 E Elliptical and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ProForm 710 E Elliptical

Summary of Contents for ProForm 710 E Elliptical

  • Page 1 Model No. PFEL08011.4 USER’’S MANUAL Serial No. Write the serial number in the space above for reference. Serial Number Decal ACTIVATE YOUR WARRANTY To register your product and activate your warranty today, go to www.proformservice.com/ registration. CUSTOMER CARE For service at any time, go to www.proformservice.com.

  • Page 2: Table Of Contents

    If a decal is missing or illegible, see the front cover of this manual and request a free replacement decal. Apply the decal in the location shown. Note: The decal(s) may not be shown at actual size. PROFORM is a registered trademark of ICON IP, Inc.

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on your elliptical before using your elliptical. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
  • Page 5 STANDARD SERVICE PLANS...

  • Page 6: Before You Begin

    Thank you for selecting the revolutionary PROFORM ® manual. To help us assist you, note the product model 710 E elliptical. The 710 E elliptical provides an number and serial number before contacting us. The impressive selection of features designed to make your model number and the location of the serial number workouts at home more effective and enjoyable.

  • Page 7: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity needed for assembly.

  • Page 8: Assembly

    ASSEMBLY •• To hire an authorized service technician to •• To identify small parts, see page 7. assemble the elliptical, call 1-800-445-2480. •• In addition to the included tool(s), assembly •• Assembly requires two persons. requires the following tools: one Phillips screwdriver ••...
  • Page 9 3. Press the Cover Mounts (106) on the underside of the Rear Stabilizer Cover (15) into the Rear Stabilizer (2). 4. With the help of a second person, place some of the packing materials (not shown) under the front of the Frame (1). Have the second per- son hold the Frame to prevent it from tipping while you complete this step.
  • Page 10 5. Orient the Upright (4) as shown. Have a second person hold the Upright near the Frame (1). Wire See the inset drawing. Locate the wire tie in the lower end of the Upright (4). Tie the wire tie to the Upper Wire (110). Then, pull the upper end of the wire tie until the Upper Wire is routed through the Upright.
  • Page 11 7. Using a plastic bag to keep your fingers clean, apply some of the included grease to the Pivot Axle (35) and to two 16mm Wave Washers (54). Insert the Pivot Axle (35) through the Upright (4) and center it. Tip: It may be helpful to use a rubber mallet.
  • Page 12 9. Untie and discard the wire tie on the Upper Wire (110). While a second person holds the Console (7) near the Upright (4), connect the wires on the Console to the Upper Wire (110) and to the Sensor Wires (63). Insert the excess wire into the Upright (4).
  • Page 13 11. Identify the Right Pedal Arm (58) and orient it as shown. Attach a Pedal (49) to the Right Pedal Arm (58) with four M6 x 12mm Screws (103). Repeat this step for the Left Pedal Arm (44) and the other Pedal (49). 12.
  • Page 14 13. Apply a small amount of grease to one of the Pedal Arm Axles (64). Next, slide an M8 Washer (97) and an Axle Spacer (77) onto an M8 x 13mm Screw (82), and tighten the Screw a few turns into the Pedal Arm Axle (64).
  • Page 15 15. Identify the Right Upper Body Arm Front Cover (65) and orient it as shown. Attach the Right Upper Body Arm Front Cover (65) to the Right Upper Body Leg (60) with two M4 x 16mm Screws (101). Identify the Right Upper Body Arm Rear Cover (66) and orient it as shown.
  • Page 16 17. Orient the Shield Cover Cap (118) and the Shield Cover (75) as shown. First, press the tabs on the Shield Cover Cap (118) into the Left and Right Shields (73, 74). Then, press the tabs on the Shield Cover (75) into the Left and Right Shields (73, 74).

  • Page 17: How To Use The Elliptical

    HOW TO USE THE ELLIPTICAL HOW TO PLUG IN THE POWER CORD A temporary adapter may 2-pole Receptacle This product must be grounded. If it should malfunc- be used to tion or break down, grounding provides a path of least connect the Adapter resistance for electric current to reduce the risk of elec-...
  • Page 18 HOW TO MOVE THE ELLIPTICAL HOW TO EXERCISE ON THE ELLIPTICAL Due to the size and weight of the elliptical, moving To mount the elliptical, hold the handlebars or the it requires two persons. Stand in front of the elliptical, upper body arms and step onto the pedal that is in the hold the upright, and place one foot against one of the lower position.
  • Page 19 CONSOLE DIAGRAM FEATURES OF THE CONSOLE The advanced console offers an array of features designed to make your workouts more effective and enjoyable. When you use the manual mode of the console, you can change the resistance of the pedals and the incline of the ramp with the touch of a button.
  • Page 20 HOW TO TURN ON THE POWER 3. Change the resistance of the pedals and the incline of the ramp as desired. IMPORTANT: If the elliptical has been exposed to cold temperatures, allow it to warm to room tem- As you pedal, change the resistance of the pedals perature before you turn on the power.
  • Page 21 Incline——This display mode will show the incline As you exercise, the workout intensity level bar level of the ramp for a few seconds each time the will indicate the approximate intensity level of your incline level changes. exercise. Pulse——This display mode will show your heart rate when you use the handgrip heart rate monitor (see step 5 on page 21).
  • Page 22 When your pulse is detected, a heart symbol in the HOW TO USE AN ONBOARD WORKOUT calorie display will flash each time your heart beats, one or two dashes will appear, and then your heart 1. Begin pedaling or press any button on the rate will be shown.
  • Page 23 At the end of each segment of the workout, a HOW TO USE AN IFIT WORKOUT series of tones will sound and the next segment of the profile will begin to flash. If a different resis- You must have an iFit module to use an iFit workout. tance level, ramp incline level, and/or target rpm is programmed for the next segment, the resistance To purchase an iFit module at any time, go to www.
  • Page 24 5. Select an iFit workout. During a competition workout, the Competition tab will show your progress in the race. As you race, To select an iFit workout, press one of the iFit but- the top line in the matrix will show how much of the tons.
  • Page 25 HOW TO CHANGE CONSOLE SETTINGS If no module is connected, the display will show the words NO IFIT MODULE. If no module is con- The console features a user mode that allows you to nected, go to step 10. view usage information, select a unit of measurement, and adjust the contrast level of the display.

  • Page 26: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING I nspect and tighten all parts of the elliptical regularly. HOW TO ADJUST THE REED SWITCH Replace any worn parts immediately. If the console does not display correct feedback, the To clean the elliptical, use a damp cloth and a small reed switch should be adjusted.
  • Page 27 HOW TO ADJUST THE DRIVE BELT See EXPLODED DRAWING C on page 35. Remove the M4 x 19mm Screws (5) and the M4 x 48mm Screw If the pedals slip while you are pedaling, even while (107) from the Left and Right Shields (73, 74). Then, the resistance is adjusted to the highest level, the drive remove the Right Shield.

  • Page 28: Fcc Information

    FCC INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 29: Exercise Guidelines

    EXERCISE GUIDELINES Burning Fat——To burn fat effectively, you must exer- WARNING: cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy.
  • Page 30 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch; never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.

  • Page 31: Part List

    PART LIST Model No. PFEL08011.4 R1212A Key No. Qty. Description Key No. Qty. Description Frame Roller Rear Stabilizer Pedal Arm Rear Cap Ramp Large Axle Cover Upright 16mm Wave Washer M4 x 19mm Screw Small Axle Cover Front Stabilizer Roller Arm Bushing Console Arm Bearing Left Handlebar...
  • Page 32 Key No. Qty. Description Key No. Qty. Description M4 x 16mm Screw Controller Bracket M8 Locknut Disc Ring M6 x 12mm Screw Front Upright Cover M10 x 122mm Screw Shield Cover Cap M10 Split Washer Power Cord Cover Mount Ramp Axle M4 x 48mm Screw Small Frame Bushing M6 x 13mm Screw...

  • Page 33: Exploded Drawing

    EXPLODED DRAWING A Model No. PFEL08011.4 R1212A...
  • Page 34 EXPLODED DRAWING B Model No. PFEL08011.4 R1212A...
  • Page 35 EXPLODED DRAWING C Model No. PFEL08011.4 R1212A...

  • Page 36: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: •• the model number and serial number of the product (see the front cover of this manual) ••...

This manual is also suitable for:

Pfel08011.4

Table of Contents
