ASSEMBLY

To hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove all
packing materials; do not dispose of the packing materials until assembly is completed. Assembly requires the
included hex keys and your own adjustable wrench
rubber mallet

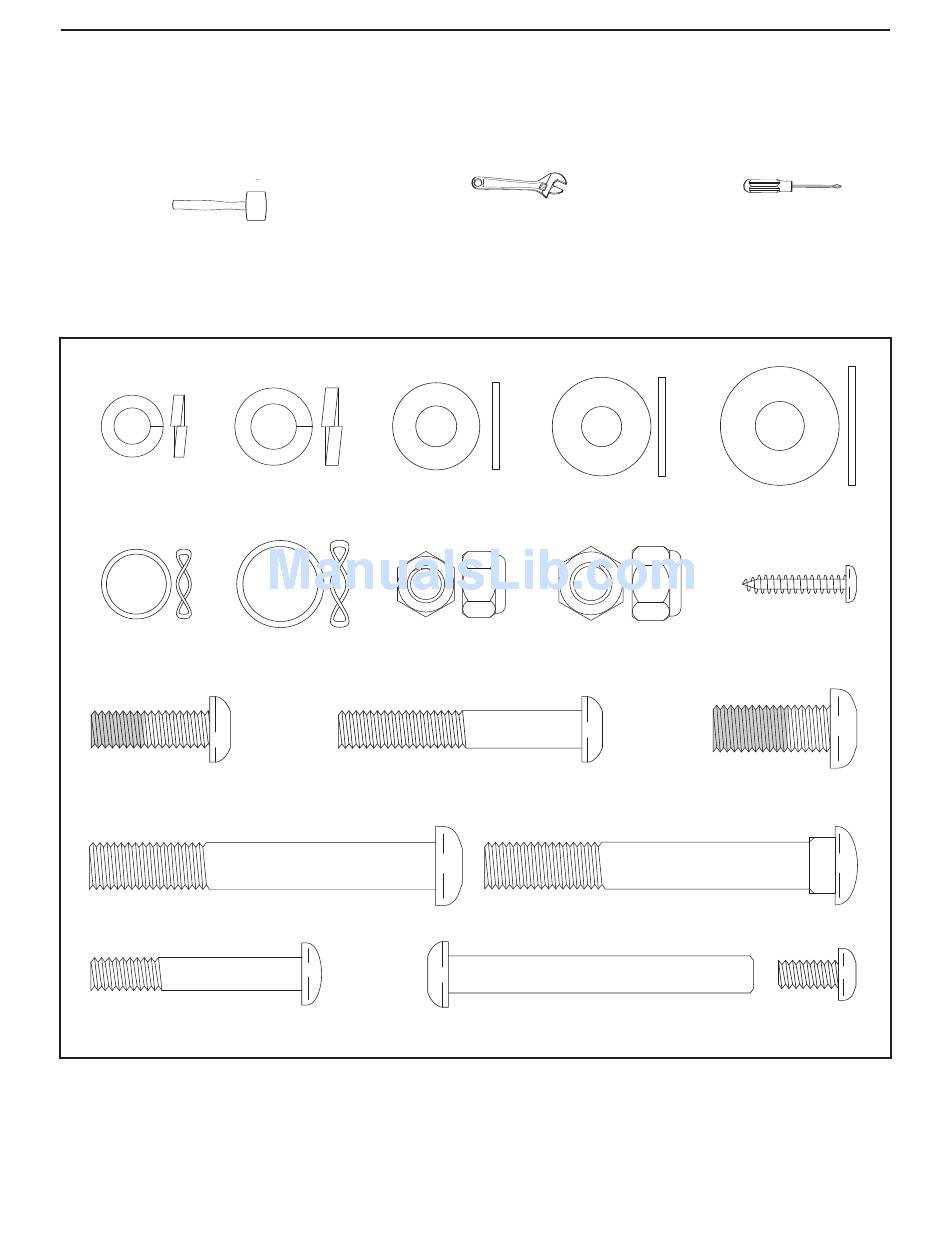

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-
ses below each drawing is the key number of the part. The number following the parentheses is the quantity
needed for assembly. Note: Some small parts shown in the assembly steps may be pre-assembled. If a
part is not found in the parts bag, check to see if it is pre-assembled.
M8 Split
Washer (28)–4
Washer (45)–2
Wave
Washer (69)–2 Washer (76)–2
M8 x 25mm Patch
Screw (56)–2
M10 x 74mm Button Bolt (7)–2
M8 x 45mm Button Bolt (50)–4
.
M10 Split
Washer (71)–4
Large Wave M8 Nylon
Locknut (38)–4
M8 x 52mm Button
Screw (27)–4
, Phillips screwdriver
M8 Handlebar
Washer (55)–2
M10 Nylon
Locknut (33)–6
M10 x 75mm Carriage Bolt (34)–4
M6 Bolt Set (25)–2
5
, and
M10
Washer (35)–2
M4 x 22mm
Screw (63)–2
M10 x 27mm
Patch Screw (40)–2
