Alfa Network AWUS036ACM User Manual page 30

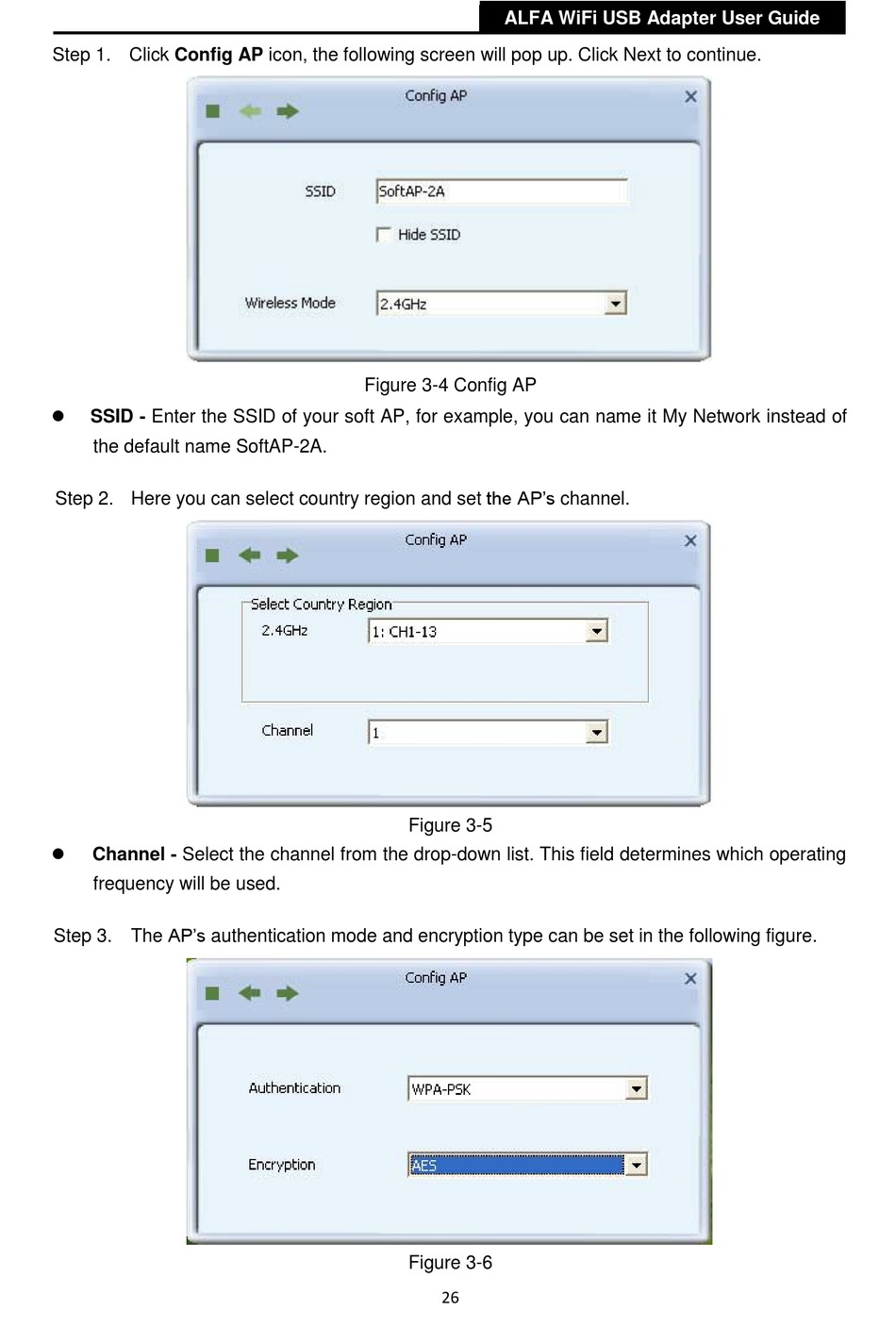

Step 1. Click Config AP icon, the following screen will pop up. Click Next to continue.

SSID - Enter the SSID of your soft AP, for example, you can name it My Network instead of
the default name SoftAP-2A.
Step 2. Here you can select country region and set the AP's channel.

Channel - Select the channel from the drop-down list. This field determines which operating
frequency will be used.
Step 3. The AP's authentication mode and encryption type can be set in the following figure.
ALFA WiFi USB Adapter User Guide
Figure 3-4 Config AP
Figure 3-5
Figure 3-6
2 6
