2. Click the Profile icon of the utility and click the Add button on the screen that appears.
3. The Profile configuration screen will appear, please select SSID ALFA_free from the drop-
down list. Enter Test for the Profile Name, and select Infrastructure for the Network Type,
then click Next to the next page. Select WPA-PSK for the Authentication, AES for the
Encryption and click Next to continue. Enter 0123456789 for the Key. You can make some
advanced settings in the following screens or you are recommended to leave the options
default if you are not sure about them.
4. Highlight the profile named Test on the profile list and click Active on the Profile screen. The
utility will establish a connection with this AP by configured profile.

2.2 Configure with Windows XP Wireless Zero Configuration

1. Right click the icon
the Use Zero Configuration as Configuration Utility option to enable Wireless Zero
Configuration function.

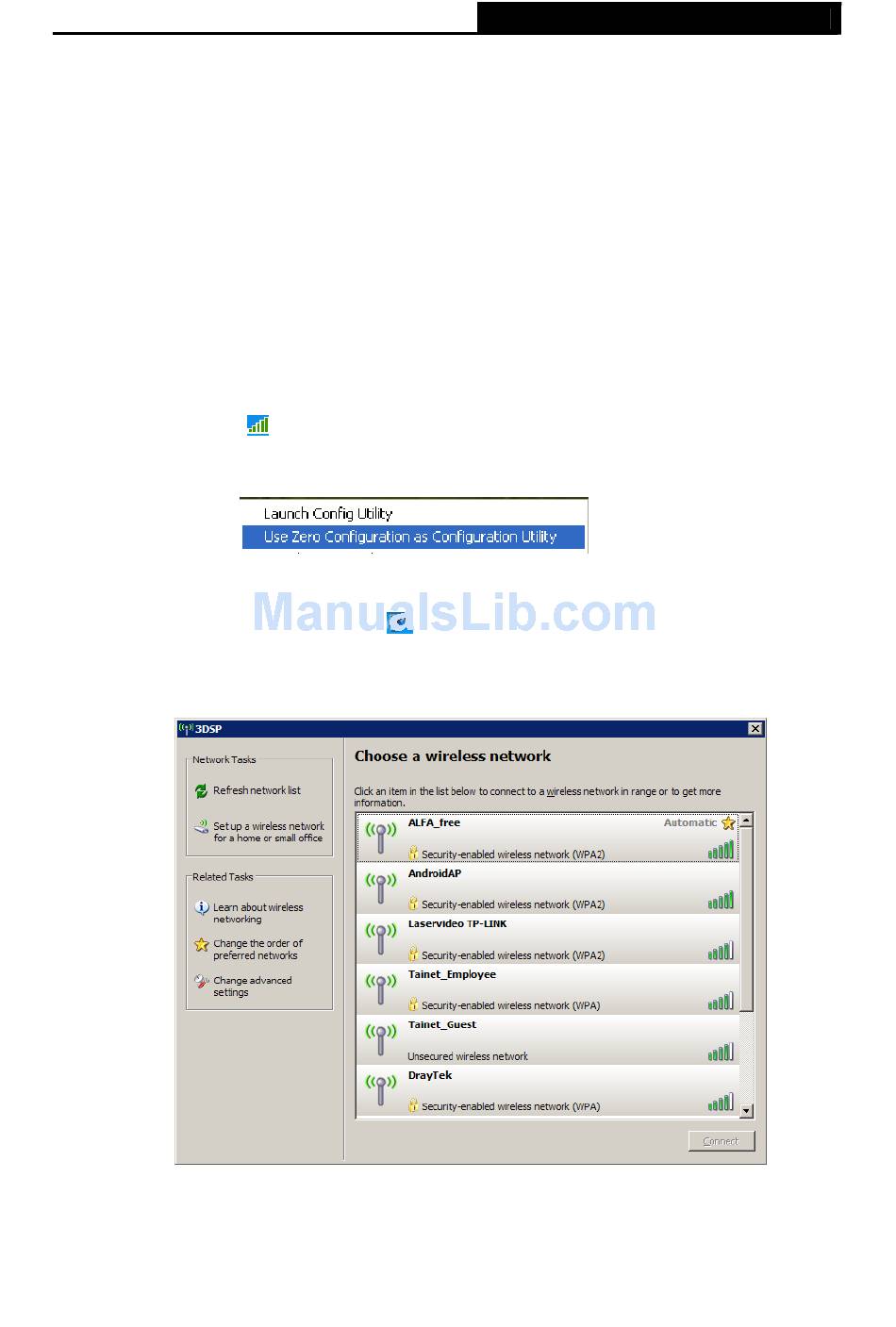

Figure 2-29 Use Zero Configuration as Configuration utility
2. After that, double click the icon
some available wireless network choices. You can highlight a network and then click Connect
to add to a network.
on the bottom of the desktop firs t a n d you will see Figure 2-29. Click
, and the following Figure 2 -30 will appear with
Figure 2-30 Choose a Wireless Network
2 3
