2) Enter a PIN from my Access Point
Step 1 Click the Add to Profile icon on the screen as Figure 2-11.
Step 2 Select the desired SSID from the WPS AP List (take ALFA_free for example)
and then tick PIN/numeric code on the screen below.
Step 3 Choose the Config Mode as Registrar and enter the PIN of AP (here takes 90377211
for example) into the field beside the Pin Code as Figure 3-10 shows. For the detailed
instructions of the AP configuration, please refer to the User Guide of the AP. And then
click Next icon to continue.
ALFA WiFi USB Adapter User Guide

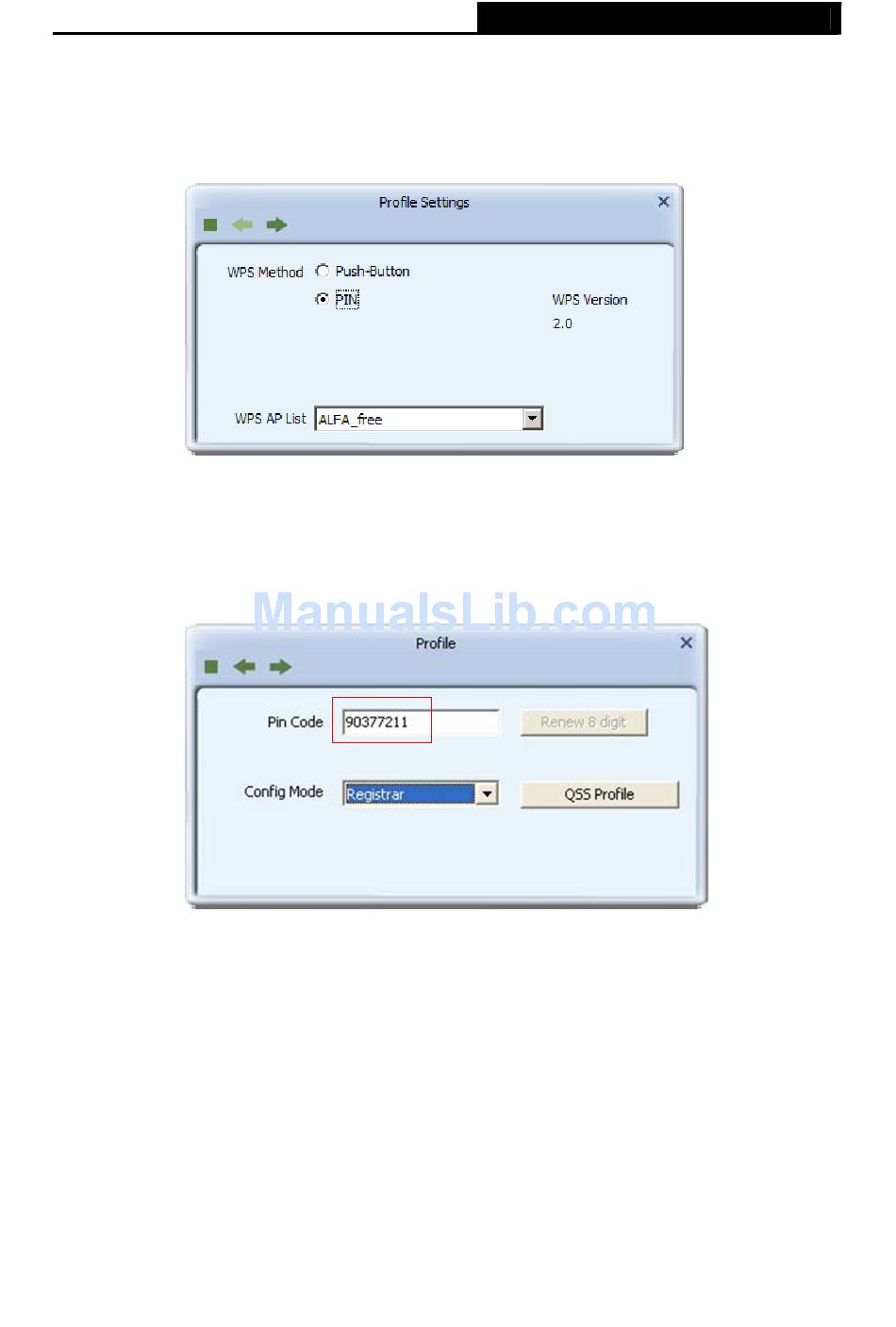

Figure 2-20
Figure 2-21 Registrar Mode
