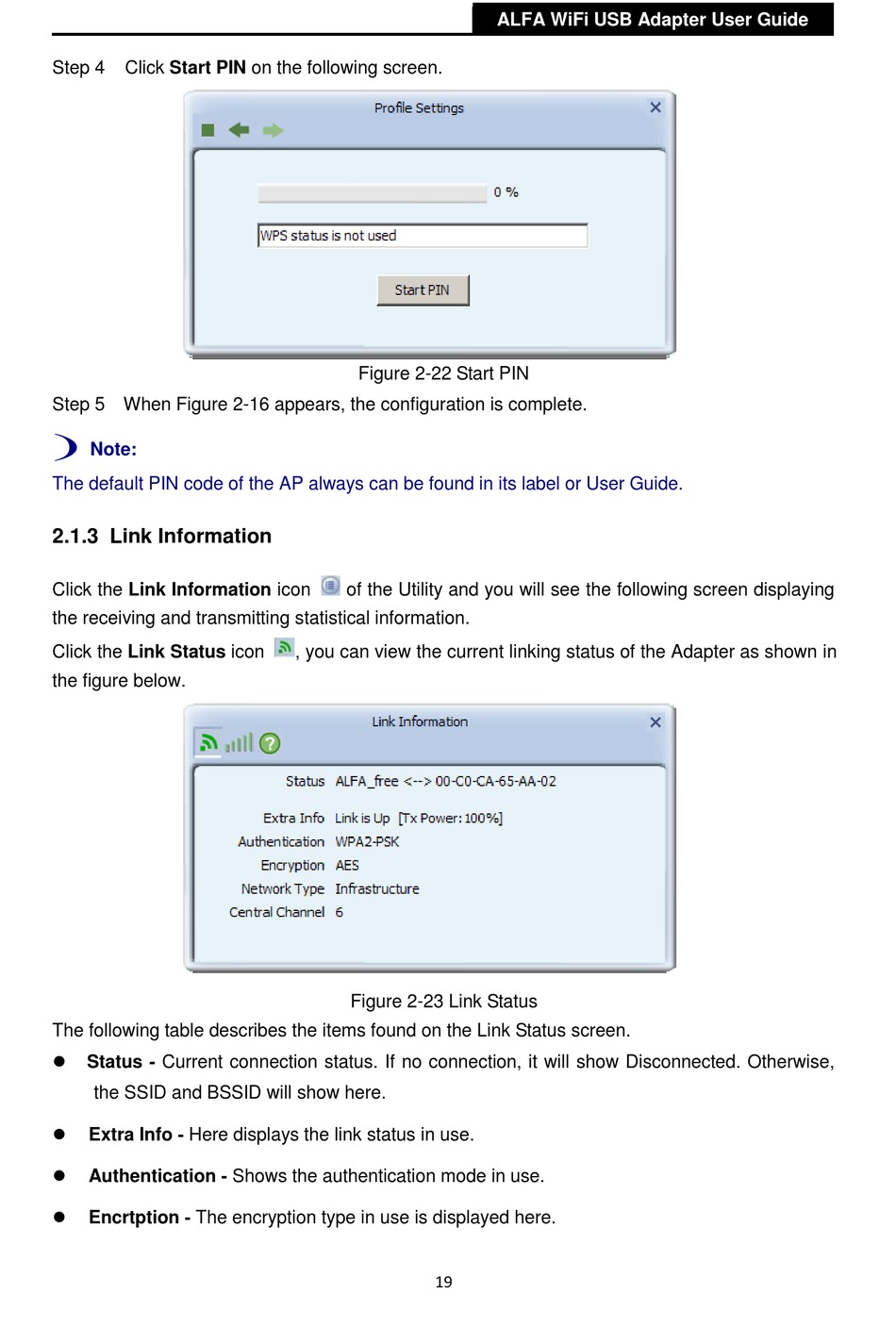

Link Information - Alfa Network AWUS036ACM User Manual

Step 4 Click Start PIN on the following screen.
Step 5 When Figure 2-16 appears, the configuration is complete.
)
Note:
The default PIN code of the AP always can be found in its label or User Guide.

2.1.3 Link Information

Click the Link Information icon
the receiving and transmitting statistical information.
Click the Link Status icon
the figure below.
The following table describes the items found on the Link Status screen.

Status - Current connection status. If no connection, it will show Disconnected. Otherwise,
the SSID and BSSID will show here.

Extra Info - Here displays the link status in use.

Authentication - Shows the authentication mode in use.

Encrtption - The encryption type in use is displayed here.
Figure 2-22 Start PIN
of the Utility and you will see the following screen displaying
, you can view the current linking status of the Adapter as shown in
Figure 2-23 Link Status
19
ALFA WiFi USB Adapter User Guide
