AIP‐W511 ultra compact wireless adapter
Quick Installation Guide
Package Content
Thank you for choosing ALFA ultra compact wireless adapter. Before installing the
adapter, please verify contents inside the product box.
□
AIP‐W511 ultra compact wireless adapter
□
Quick Installation Guide
NOTE:
If any item in this package is missing or damaged, please contact the distributor
immediately.

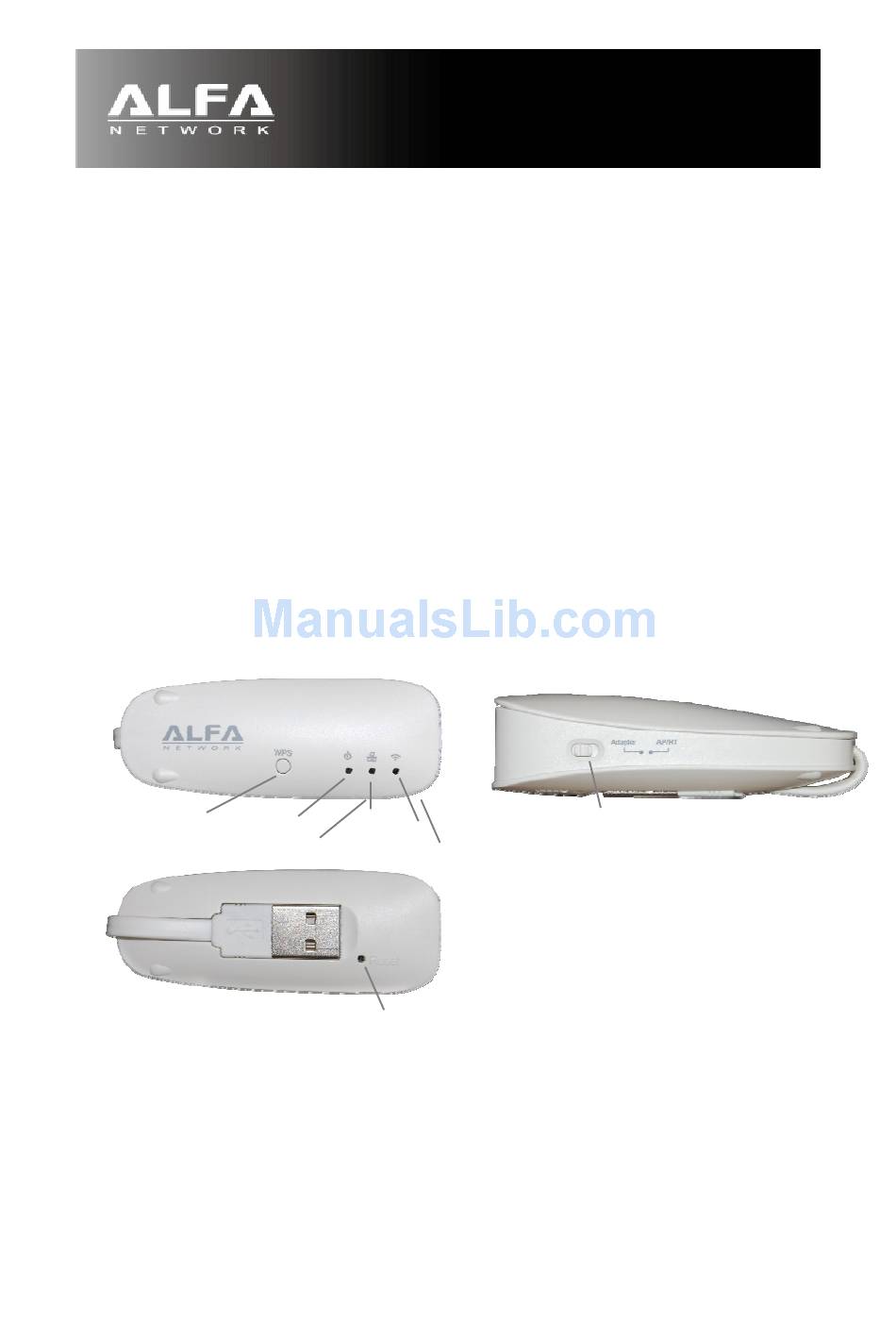

Product Outlook
WPS button
Power
LAN
WLAN
Reset button
Mode Switch
Advertisement
Related Manuals for Alfa Network AIP-W511
Summary of Contents for Alfa Network AIP-W511
- Page 1 AIP‐W511 ultra compact wireless adapter Quick Installation Guide Package Content Thank you for choosing ALFA ultra compact wireless adapter. Before installing the adapter, please verify contents inside the product box. □ AIP‐W511 ultra compact wireless adapter □ Quick Installation Guide NOTE: If any item in this package is missing or damaged, please contact the distributor immediately. Product Outlook WPS button Power LAN WLAN Mode Switch Reset button ...
- Page 2 Installation Default operation mode is USB wireless adapter Insert the ultra compact wireless adapter into the USB port of PC or your laptop computer. Click “Setup.exe” when window’s auto‐play menu is prompted. Click Yes or Allow when windows User Account Control window pop‐up. Please wait till driver of ultra compact wireless adapter is installed on your computer. Open your web browser, and insert http://alfasetup.com in the address bar. NOTE: in this mode, Windows and MAC OS X (10.6 or later) drivers are supported. ...
- Page 3 Understand Product Operation Modes, and make selection Default operation mode of ultra compact wireless adapter is wireless adapter. Wireless adapter mode In this mode, ultra compact wireless adapter performs as a 802.11n wireless adapter for WLAN access. Just connect ultra compact wireless adapter to your laptop or desktop PC, WLAN access is ready to use. NOTE: in this mode, Windows and MAC OS X (or later) drivers are supported. ...
- Page 4 Hotel AP / Router Mode ONLY DSL modem/cable existed in your network, ultra compact wireless adapter is very convenient to convert Ethernet to wireless signals. It acts as a wireless AP/router for WLAN access, and Internet sharing. Just connect Ultra compact wireless adapter to DSL modem via Ethernet/RJ‐45 cable, it will do the tasks for you. NOTE: in this mode, ultra compact wireless adapter can be powered by PC/laptop or mobile power bank. ...
- Page 5 Ethernet adapter mode In this mode, easily connect your laptop or computer to an Ethernet network with the ultra compact wireless adapter. Stylish and compact, it connects to the USB 2.0 port of your laptop or computer and provides an RJ‐45 connector that supports 10/100BASE‐T network access. ...
- Page 6 Product Configurations In default mode, ultra compact wireless adapter is WLAN client. To start the product configurations, connect USB cable to ultra compact wireless adapter.. Open web browser, and enter http://alfasetup.com, product setting page will appear as below: WLAN client mode: Click on Next, insert SSID of wireless AP manually or perform a Site Survey to scan the available wireless AP nearby. ...
- Page 7 Click on Next to select, and insert suitable wireless security to connect to target wireless AP. Click on Finished, the ultra compact wireless adapter shall now connect to wireless AP, and you may start Internet browsing. ...
- Page 8 WLAN AP (Access Point) mode: Open web browser, and enter http://alfasetup.com, product setting page will appear as below: Please select AP in mode selection tab. Click on TCP/IP menu, to change or keep LAN IP parameters in wireless AP mode. Click on Wireless ‐‐ > Basic Settings menu, to change or keep LAN IP parameters in wireless AP mode. ...
- Page 9 Click on Wireless ‐‐ > Security Settings menu, there is a default security config in this page. To change or keep wireless security parameters, please change the values in this page. NOTE: To apply the changes, please reboot the router to activate the new configurations in the WLAN AP setting menu. ...
-
Page 10: Further Information
WLAN Router mode: Open web browser, and enter http://alfasetup.com, product setting page will appear as below: Please select Router in mode selection tab. Click on Setup Wizard menu, refer to the screen instructions to fill‐in required parameters for Internet access. NOTE: default IP address in router mode is 192.168.11.1 FURTHER INFORMATION The steps above introduce simple installation for ultra compact wireless adapter. For further configuration of the Wi‐Fi Protected Setup (WPS), Software AP etc, please refer to the user’s manual. Any further questions, please contact the local dealer or distributor where you purchased this product. ... - Page 11 FCC ID: 2AB87511 Model No.: AIP-W511 name: Model 802.11n 150M Ultra Wireless LAN Router This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
