Chapter 3 AP Mode

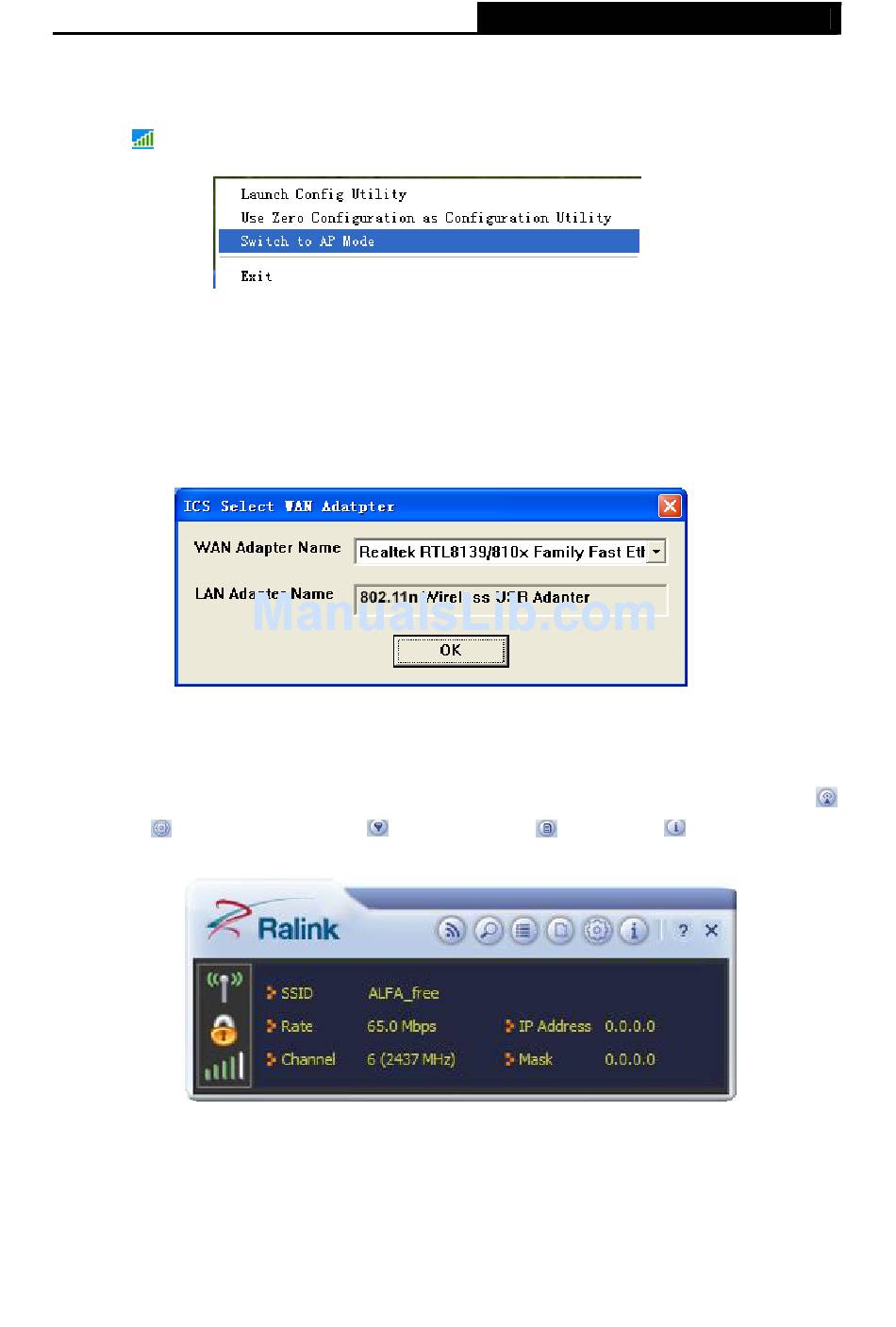

Click the icon to switch to AP Mode. In this mode you can use the 802.11n USB WLAN
adapter as a soft AP.
)
Note:
At this time, if your PC have Installed other network card (wireless or wire), you will be prompted
"ICS Select WAN Adapter" to select one of them to be "WAN". With this function 802.11n USB
WLAN adapter can serve as wireless router based on the selected card connecting to the Internet,
which will make the APs of the LAN share the Internet.
The configuration utility screen will then appear as shown in the figure below. By clicking the
corresponding icon, you can configure the AP, make some advanced settings and view the AP's
status. The tools section shown in the following figure respectively stands for Config AP
Advanced , Access Control List
right .
3.1 Config AP
Click the Config AP icon to load the following screen and set the AP as you need.
ALFA WiFi USB Adapter User Guide
Figure 3-1
Figure 3-2
, Associate List
Figure 3-3
2 5
and About from the left to the
,
