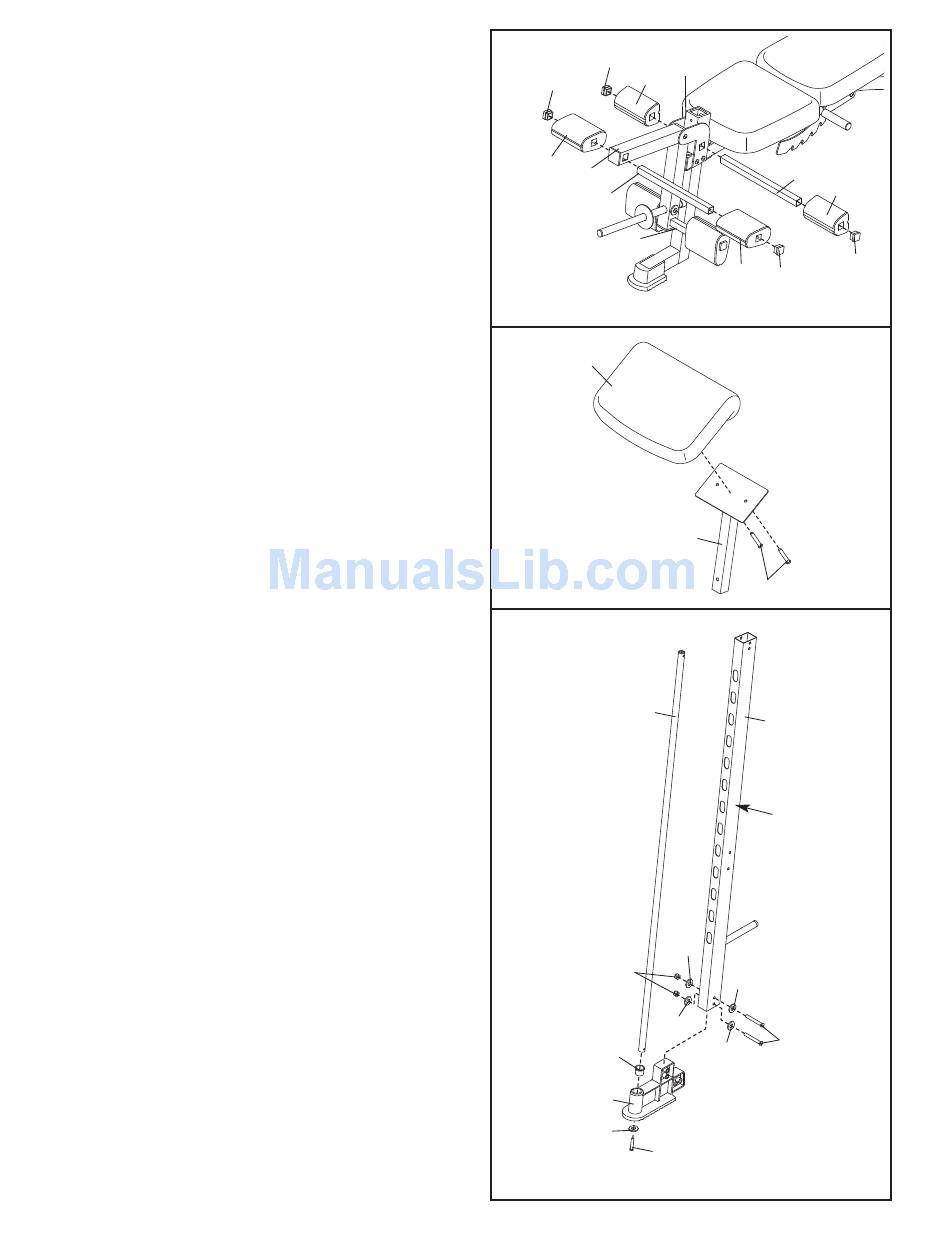

9. Slide a Pad Tube (50) into a hole in the Leg
Lever (4). Wet both sides of the Pad Tube with
soapy water. Slide two Large Foam Pads (51)
onto the Pad Tube as shown. Press two 19mm
Square Inner Caps (53) into the Pad Tube.
Repeat with the other Pad Tube and the Leg
Lever.
Slide the Long Pad Tube (82) into the hole in the
Leg Lever Bracket (7). Wet both sides of the Pad
Tube with soapy water. Slide two Small Foam
Pads (52) onto the Tube as shown. Press two
19mm Square Inner Caps (53) into the Pad Tube.
10. Attach the Curl Pad (14) to the Curl Post (5) with
two M6 x 16mm Screws (63).
11. Press a Round Angled Bushing (45) into a Rack
Foot (35).
Attach a Guide Bar (32) to the Rack Foot (35)
with an M10 x 30mm Button Screw (56) and an
M10 Washer (67). Tighten the Screw.
Using a rubber mallet, tap the Right Upright (62),
which has numbers on the indicated side, onto
the Rack Foot (35). Attach the Right Upright to
the Rack Foot with two M10 x 65mm Button Bolts
(60), four M10 Washers (67), and two M10 Nylon
Locknuts (69). Make sure the Bolts are inserted
from the side shown. Do not tighten the
Locknuts yet.
Repeat this step with the Left Upright (31 [not
shown]), Guide Bar (32), and Rack Foot (35).
Insert the M10 x 65mm Button Bolts (60) from
the other side.
9
53
52
53
51
4
50
50
10
14
11
32
69
45
35
67
8
7
82
51
53
5
63
62
Numbers
67
67
67
60
67
56
52
53
