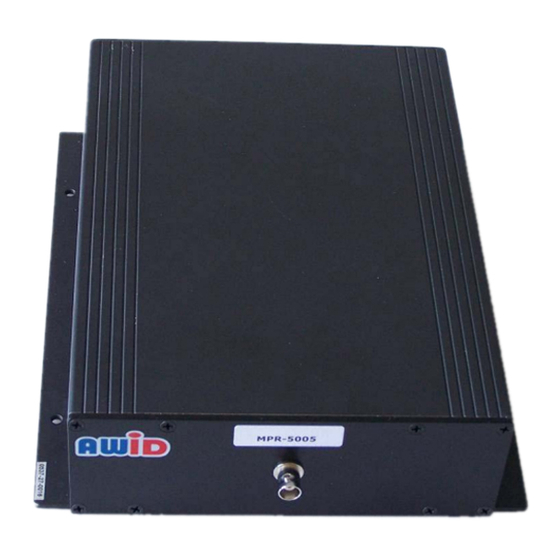

- Page 1 MPR-5005 Page 1 Doc# 041326 MPR-5005 125kHz Reader Installation & Operation Manual - 041326 AWID PROPRIETARY...
- Page 2 The information contained herein has been carefully checked and is believed to be accurate, no responsibility is assumed for inaccuracies. AWID reserves the right to make changes without prior notice. This document is not covered by any warranty either expressed or implied.
- Page 3 MPR-5005 Page 3 Doc# 041326 C AUTION: Reader should be positioned so that personnel in the area for prolonged periods may safely remain at least 23 cm (9 in) in an uncontrolled environment from the reader’s surface. Observe FCC OET Bulletin 56 “Hazards of radio frequency and electromagnetic fields” and Bulletin 65 “Human exposure to radio frequency electromagnetic fields.”...
- Page 4 MPR-5005 Page 4 Doc# 041326 Table of Contents INTRODUCTION ....................5 Theory of opperation..................5 SPECIFICATIONS ....................6 Antenna Specifications ..................6 Input and Output Interfaces ................7 INSTALLATION & OPERATION GUIDELINES............8 Parts List ......................8 Installation......................9 3.2.1 Site location......................9 3.2.2 Reader Location....................9 3.2.3 Antenna Connections ..................9 Operation ......................10...
-
Page 5: Introduction
AWID MPR-5005 Reader design for communicating with Atmel AT24RF08 chip transponder (TAG HPPN 0960-2349) in working frequency at 125KHz. MPR-5005 RFID reader use small loop low frequency antenna, matched inductance is 220uH. Reader provides all controls and RF energy to activate the transponder. Two different antenna configurations can be connected to the readers BNC connector. -
Page 6: Specifications
MPR-5005 Page 6 Doc# 041326 SPECIFICATIONS Part Number Mfr part # MPR-5005 Power Supply 12.0 VDC, 450mA, regulated Carrier Frequency 125 kHz +/-3.125 kHz Reference Clock 16 MHz Frequency Date Rate 7.81kbps(Receive), 1.95kbps(Transmit) Memory 16 kByte FLASH for Firmware 512 bits EEPROM for Configuration... -
Page 7: Input And Output Interfaces
INPUT AND OUTPUT INTERFACES RS232 Connector Pin Assignment Function RS232 Tx RS232 Rx Ground o Please refer to document MPR-5005 RS232 Interface for command listings. TCP/IP Interface o Please refer to Document MPR-5005 TCP/IP Interface for command listings. AWID PROPRIETARY... -
Page 8: Installation & Operation Guidelines
Page 8 Doc# 041326 INSTALLATION & OPERATION GUIDELINES PARTS LIST o MPR-5005 125kHz RFID Reader o MPR-5007 Single Antenna. 6-foot length BNC RF cable connected. o MPR-5011A Dual Antenna, paired with MPR-5011B Antenna o MPR-5011B Dual Antenna, paired with MPR-5011A Antenna... -
Page 9: Installation
3.2.3 Antenna Connections The MPR-5005 reader can be connected with one of two antenna configurations: Single antenna (MPR-5007) or dual antenna (MPR-5011A + MPR-5011B). Both have BNC RF connectors. -
Page 10: Operation
(default 192.168.1.91) and click connect. Connection to the reader will be verified by displaying the units’ firmware version in the Status text box. Note: The PC’s local IP address must be fixed. AWID suggests local IP address of 192.168.1.26, mask set to default (255.255.255.0) 8. -
Page 11: Software
MPR-5005 Page 11 Doc# 041326 SOFTWARE The other options in the drop-down list in the Command box give the user full-functionality of the RFID Tag. The tag has different blocks, and pages of memory that can be read, and written to.
