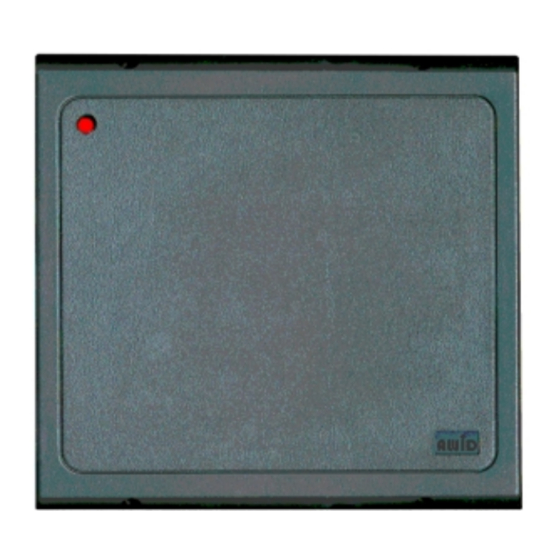

SENTINEL-PROX LR-911
LONG-RANGE TAG READER
Installation & Operation Manual - 006-99-A
Your Best Option for Long Range UHF Readers
Last Update: July 18, 2001
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SENTINEL-PROX LR-911 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AWID SENTINEL-PROX LR-911

Summary of Contents for AWID SENTINEL-PROX LR-911

  • Page 1 AWID PROPRIETARY Applied Wireless Identifications Group, Inc. SENTINEL-PROX LR-911 LONG-RANGE TAG READER Installation & Operation Manual - 006-99-A Your Best Option for Long Range UHF Readers Last Update: July 18, 2001...

  • Page 2: Table Of Contents

    AWID PROPRIETARY Table of Contents 1.0 Introduction………………………………………………………………………Page 1.1 General Description..………………………………………………………….. 1.2 Special Features…………………………………………………………….… 1.3 Suggested Applications………………..………………………….…………. 2.0 Principal of Operation………………………………………………………………… 3.0 Specifications…………………………………………………………………………. 3.1 Measuring Read Distance…..……………..……….……………….………. 4.0 Preparation for Installation………….…………………………...…………………... 4.1 Site Survey……………………………………………………………………. 4.2 Preferred Reader Installation Practice……………………………………… 4.3 Metal Mounting…………………………….………………………………….

  • Page 3: Introduction

    AWID PROPRIETARY 1.0 INTRODUCTION: AWID's Sentinel-Prox LR-911 Reader is a long-range (9 to 11 feet) reader that works with paper-thin passive windshield mounting tags or credit card size tags. This reader comes with a unique combination of long read range, small size and low power consumption. LR-911 has an internal power DC/DC converter, allowing it to work with wide range of supply inputs without affecting its performance.

  • Page 4: Specifications

    AWID PROPRIETARY transponder. Once the IC is energized, it goes through an initialization process and is ready to accept further commands. Upon receiving a command to broadcast its identity, the RFID ASIC begins to broadcast its identity through a low energy back-scattering technology that selectively reflects or backscatters the electromagnetic energy back to the reader.

  • Page 5: Preferred Reader Installation Practice

    4.4 General Wiring Requirements All the Reader wiring must be continuously shielded. AWID recommends using #22 AWG up to #18 AWG, six or seven-conductor shielded cables. Longer distances and higher current consumption on the power supply line may require larger gauge wires. Due to system data termination differences, contact your panel manufacturer for the proper wire sizes to meet their specific requirements.

  • Page 6: Power Supply

    Verify that all item listed in Section 5.1 of this manual are present before starting the installation. 5.1 Parts List A. Installation sheet, P/N: 006-99-A QTY=1 B. Sentinel-Prox LR-911 Reader, P/N: 004-20-A QTY=1 C. #6-32 x 1” Machine screw, P/N: 0616MPP QTY=4 D.

  • Page 7: Verification

    The reader uses an internal micro-controller to manage its many functions, and the micro-controller must be initialized properly. When the reader show evidence of malfunctioning, turn off the reader and wait for ten seconds before energize the reader again. AWID PROPRIETARY...
  • Page 8 Fig 5.2.1 Wiring Diagram For Wiegand Output Format READER Brai d PANEL Ext Data (Yellow) Data1 Data1 (White) Datao Data0 (Green) RS Ground (Blue) Reset (Brown) Transmit (Violet) Receive (Orange) Ground (Black) Ground 6-16 VDC (Red) Power Shield Drain) Chassis Ground Earth Ground AWID PROPRIETARY...
  • Page 9 Fig 5.2.2 Wiring Diagram For RS-232 Output Format Brai d READER PANEL RS Ground Ext Data (Yellow) Data1 (White) Data0 (Green) RS Ground (Blue) Reset (Brown) Transmit (Violet) Receive (Orange) Ground (Black) Ground 6-16 VDC (Red) Power Shield Drain) Chassis Ground Earth Ground AWID PROPRIETARY...
  • Page 10 Chassis Ground Ext Data (Yellow) Earth Data1 (White) Ground Data0 (Green) RS Ground (Blue) Wi egand PANEL Reset (Brown) Transmit (Violet) Receive (Orange) Data1 Ground (Black) Datao 6-16 VDC (Red) Shield Drain) Ground Power Chassis Ground Earth Ground AWID PROPRIETARY...

  • Page 11: Mounting

    Note: screw hole plugs are designed for one-time use only! Once the plugs are seated, they cannot be removed without damaging the plugs. AWID PROPRIETARY 5.5 FCC RF Exposure compliance Caution: to meet FCC RF Exposure compliance, operator(s) should not be closer than 10.27 inches to a transmitting antenna.

  • Page 12: Return Material Authorization (Rma)

    AWID’s products are warranted to the original purchaser to be free of defects in material and workmanship for the life of the product. Any tampering or modification to the product will void this product warranty. AWID does not warrant any product as to its merchantability or suitability of use.

  • Page 13: Patents And Approvals

    Or “is the problem originating from the Reader? “ Maybe the problem “is the power supply?” All AWID’s readers will need only a power supply and a valid card to work properly. If the reader is connected with RED (+6…16V) and BLACK (Ground), and presented with a valid card, the reader will successfully display valid data at the test computer.
