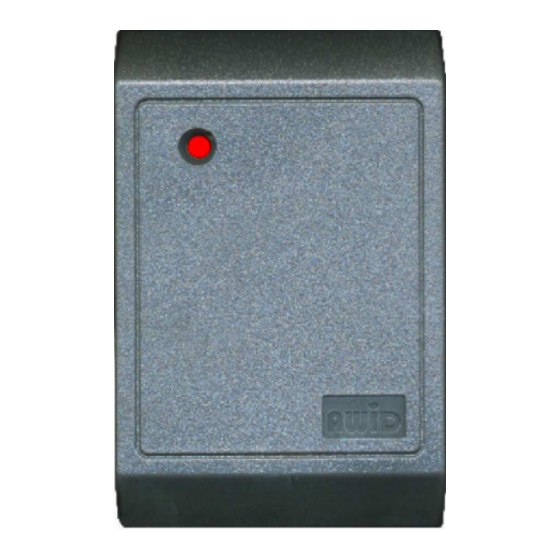

- Page 1 SC-2300 - 1 - 2/5/2007 SENTINEL-PROX SC-2300 Switchplate SMART CARD Reader Installation & Operation Manual-041338 Your best option for Proximity Access Control...
- Page 2 COPYRIGHT ACKNOWLEDGEMENTS The contents of this document are the property of Applied Wireless Identifications Group, Inc. (AWID) and are copyrighted. All rights reserved. Any reproduction, in whole or in part, is strictly prohibited. For additional copies of this document please contact:...
-
Page 3: Table Of Contents
SC-2300 - 3 - 2/5/2007 Table of Contents REVISION HISTORY .......................4 INTRODUCTION.......................5 General Descriptions ..................5 Special Features ....................5 Suggested Applications ..................5 SPECIFICATIONS ....................5 Measuring Read Distance..................5 PREPARATION FOR INSTALLATION ..............6 Site Survey......................6 Preferred Reader Installation Practices .............6 Metal Mounting ....................6 General Wiring Requirements................6 Power Supply.....................7 Grounding ......................7... -
Page 4: Revision History
SC-2300 - 4 - 2/5/2007 REVISION HISTORY Version Revised Date Sections Remarks Affected E. Wei 2/5/2007 Initial version – reformatted from 009-03-A Your best option for Proximity Access Control... -
Page 5: Introduction
- 5 - 2/5/2007 INTRODUCTION AWID's Sentinel-Prox SC-2300 Reader is a versatile smart card/smart label reader for switch plate mounting. This Reader will provide simultaneous Wiegand and RS-232 output formats. Its primary applications are Access Control and Time & Attendance applications. -
Page 6: Preparation For Installation
SC-2300 - 6 - 2/5/2007 read the card. In order to read again, the card must be fully withdrawn from the Reader’s field of surveillance and then re-approached again. During normal operation, the card can be presented at any angle relative to the Reader, however this will result in slight variation of read range. -
Page 7: Power Supply
- 7 - 2/5/2007 All the Reader wiring must be continuously shielded. AWID recommends using #22 AWG up to #18 AWG, six or seven-conductor shielded cables. Longer distances and higher current consumption on the power supply line will require larger gauge wires. - Page 8 SC-2300 - 8 - 2/5/2007 Figure 1 Wiring Diagram for Wiegand Output Format Figure 2 Wiring Diagram for RS232 Output Format Your best option for Proximity Access Control...
-
Page 9: Installation Procedure
Check to verify that every item listed under Section 5.1 of this manual is present before starting the installation. 4.1 PARTS LIST a. Installation sheet, P/N: 003-97-A QTY=1 b. Sentinel-Prox SC-2300 Reader, P/N: 009-20-A QTY=1 c. #6-32x1” Machine screw P/N: 0616MPP QTY=1 d. FAIR-RITE Ferrite Clamp, P/N: 0443163151... -
Page 10: Installation Steps
SC-2300 - 10 - 2/5/2007 4.2 INSTALLATION STEPS 1. Prepare the single-gang electrical wiring box for Reader mounting. Observe ADA requirements. 2. If double-gang electrical box is used, drill through the four blind mounting holes on the four corners of the Reader. 3. -
Page 11: Mounting
3. Install the Snap-On cover. Warranty AWID’s products are warranted to the original purchaser to be free of defects in material and workmanship for the life of the product. Any tampering or modification to the product will void this product warranty. AWID does not warrant any product as to its merchantability or suitability of use. -
Page 12: Patents And Approvals
Or “is the problem originating from the Reader? “ Maybe the problem “is the power supply?” All AWID’s readers will need only a power supply and a valid card to work properly. If the reader is only connected with RED (+7-12V) and BLACK (Ground), and presented with a valid card, the reader will BEEP and momentarily turned AMBER.
