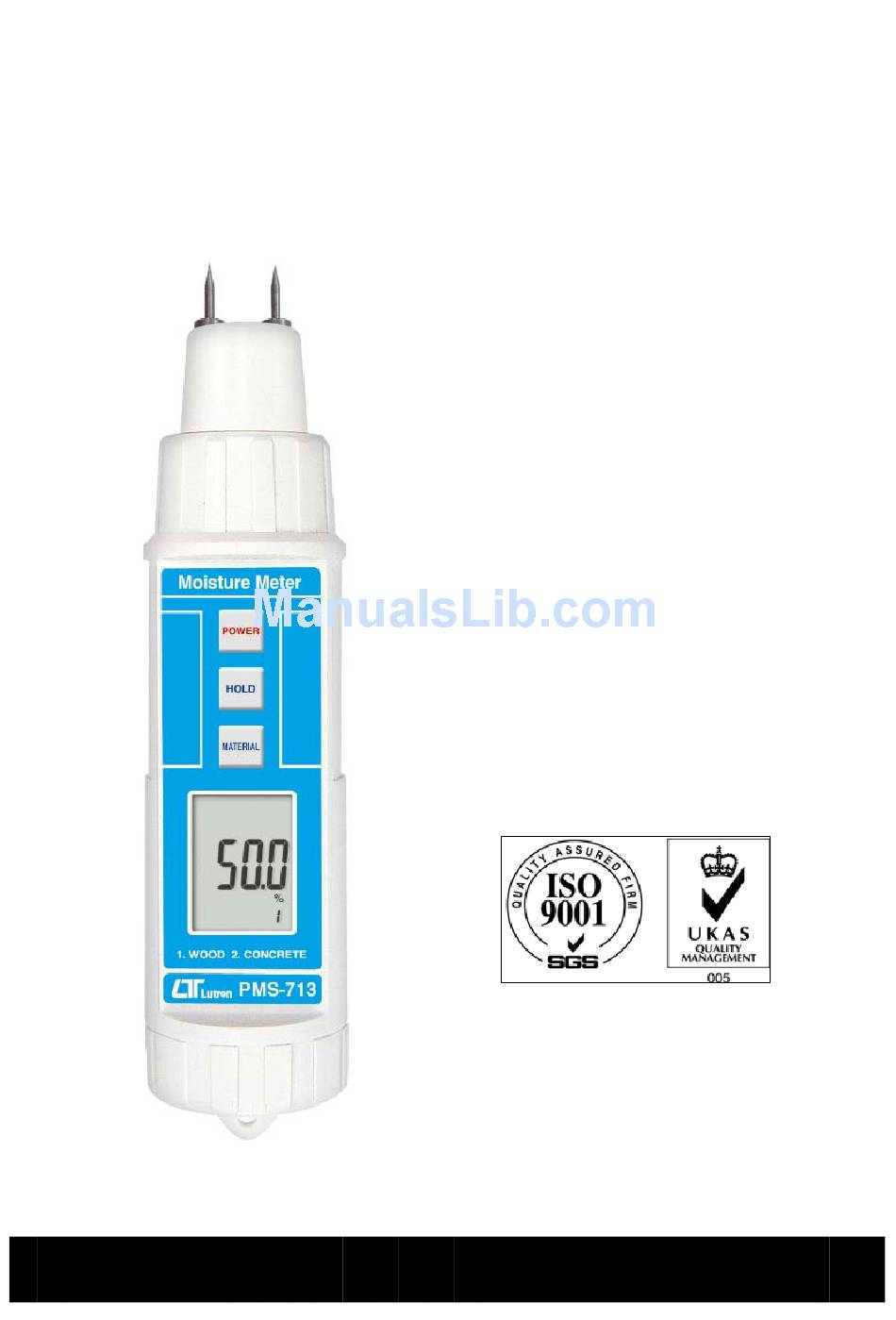

MOISTURE METER
Model : PMS-713
OPERATION MANUAL
Your
purchase
MOISTURE METER marks a
step forward for you into
the
field
of
measurement.
this METER is a complex
and delicate instrument,
its durable structure will
allow many years of use if
p r o p e r
o p e r a t i n g
techniques are developed.
Please read the following
instructions carefully and
always keep this manual
within easy reach.
of
this
precision
Although
