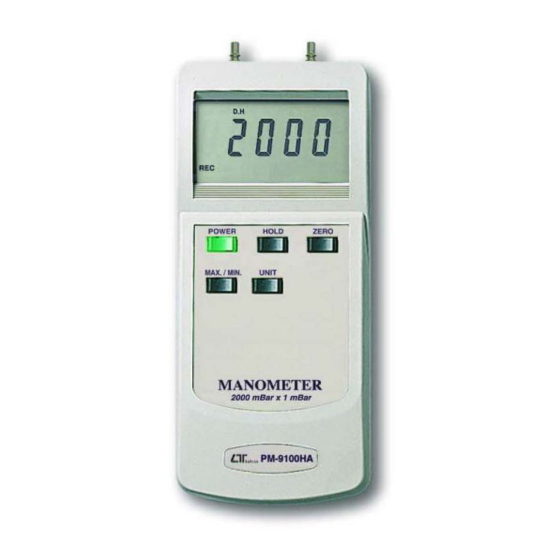

MANOMETER
Model : PM-9100HA
OPERATION MANUAL
Your
purchase
MANOMETER marks a step
forward for you into the
f i e l d
o f
measurement.
this
MANOMETER
complex
and
instrument,
structure will allow many
years of use if proper
operating techniques are
developed.
Please
the following instructions
carefully and always keep
this manual within easy
reach.
of
this
p r e c i s i o n
Although
is
a
delicate
its
durable
read
Advertisement
Table of Contents
Related Manuals for Lutron Electronics PM-9100HA
Summary of Contents for Lutron Electronics PM-9100HA
- Page 1 2000 mbar, differential input MANOMETER Model : PM-9100HA Your purchase this MANOMETER marks a step forward for you into the f i e l d p r e c i s i o n measurement. Although this MANOMETER complex delicate...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. FEATURES............... 1 2. SPECIFICATIONS............. 1 2-1 General Specifications......... 1 2-2 Electrical Specifications........3 3. FRONT PANEL DESCRIPTION........4 3-1 Display............4 3-2 Power Off/On Button........4 3-3 Hold Button............. 4 3-4 Zero Button..........3-5 " MAX./MIN. " Button........4 3-6 Unit Button.... -
Page 3: Features
1. FEATURES * Dual & differential input, 2000 mbar max. range. * Application : Industrial, laboratory, heating, ventilation, medical hospital, used for air or not corrosive and not ionized gas & liquid. * Sensor is built inside the housing. * Single lugs for pipe connection. * 8 kind display units ( mbar, psi, Kg/cm 2 mm Hg, ... - Page 4 Display units mbar, psi, Kg/cm^2 mm Hg, inch Hg, meter H2O, inch H2O, Atmosphere. Function Dual & differential input, data hold, zero/relative, memory. Zero adjust Push button on the front panel. Sensor * Sensor is built inside the housing. * Piezoelectric sensor. * Used for air or not corrosive and not ionized gas &...
-
Page 5: Electrical Specifications
2-2 Electrical Specifications Unit Max. range Resolution mbar 2000 mbar mbar 0.01 Kg/cm 2 2.040 Kg/cm 2 0.001 Kg/cm 2 mm Hg 1500 mm Hg mm Hg inch Hg 59.06 inch Hg 0.02 inch Hg meter HF2 20.40 meter HF2 ... -
Page 6: Front Panel Description
3. FRONT PANEL DESCRIPTION Fig. 1 3-1 Display 3-7 P1 input socket 3-2 Power Off/On Button 3-8 P2 input socket 3-3 Hold Button 3-9 Battery Compartment 3-4 Zero Button /Cover 3-5 " MAX./MIN. " Button 3-10 PLug/ quick coupler 3-6 Unit Button... -
Page 7: Measuring Procedure
4. MEASURING PROCEDURE 1) Power on the meter by pressing the " Power Off/On Button " ( 3-2, Fig. 1 ). 2) Select the desired temperature units ( mbar, psi, Kg/cm 2 mm Hg, inch Hg, meter HF2 , inch HF2 , Atmosphere ) ... -
Page 8: Auto Power Off Disable
7) Data Record ( Maximum, Minimum reading ) * The DATA RECORD function displays the maximum and minimum readings. To start the DATA RECORD function, press the " MAX./MIN. Button " ( 3-5, Fig. 1 ) once. " REC " symbol will appear on the LCD display. * With the "... -
Page 9: Battery Replacement
Slide the Battery Cover ( 3-9, Fig. 1 ) away from the instrument and remove the battery. Install a 9 V battery (PP3 type) and replace the cover. 0111-PM-9100HA...
