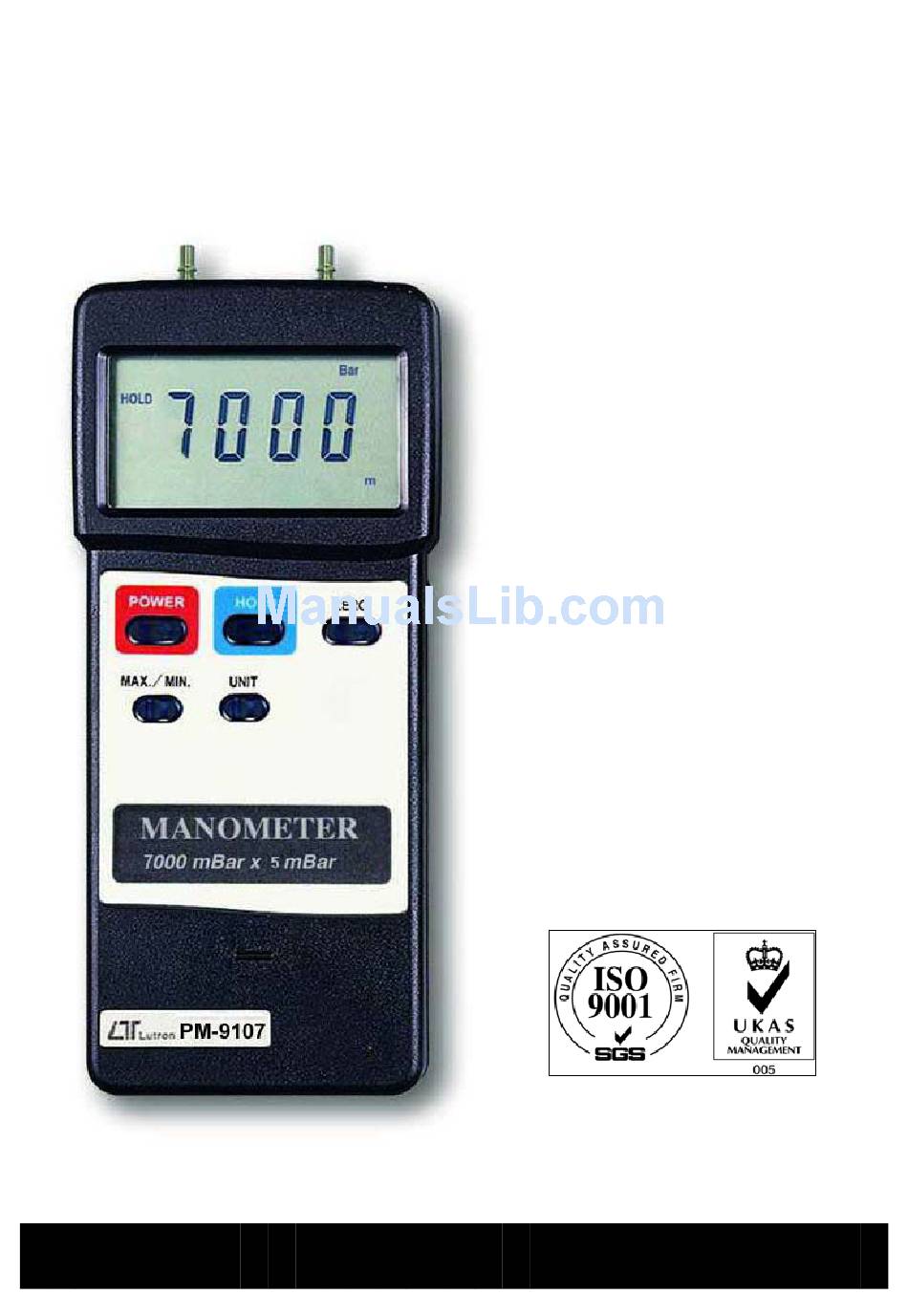

7000 mbar, differential input manometer

Advertisement

7000 mbar, differential input
MANOMETER
Model : PM-9107
OPERATION MANUAL
Your
purchase
MANOMETER marks a step
forward for you into the
f i e l d
o f
measurement.
this
MANOMETER
complex
and
instrument,
structure will allow many
years of use if proper
operating techniques are
developed.
Please
the following instructions
carefully and always keep
this manual within easy
reach.
of
this
p r e c i s i o n
Although
is
a
delicate
its
durable
read

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM-9107 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lutron Electronics PM-9107

  • Page 1 7000 mbar, differential input MANOMETER Model : PM-9107 Your purchase this MANOMETER marks a step forward for you into the f i e l d p r e c i s i o n measurement. Although this MANOMETER complex delicate...
  • Page 2 TABLE OF CONTENTS 1. FEATURES............... 1 2. SPECIFICATIONS............. 1 2-1 General Specifications......... 1 2-2 Electrical Specifications........3 3. FRONT PANEL DESCRIPTION........4 3-1 Display............4 3-2 Power Off/On Button........4 3-3 Hold Button............. 4 3-4 Zero Button..........3-5 " MAX./MIN. " Button........4 3-6 Unit Button....
  • Page 3: Features

    1. FEATURES * Dual & differential input, 7000 mbar ( 7 bar ) max. range. * Application : Industrial, laboratory, heating, ventilation, medical hospital, used for air or not corrosive and not ionized gas & liquid. * Sensor is built inside the housing. * Single lugs for pipe connection.
  • Page 4 Display units mbar, psi, Kg/cm 2 mm Hg, inch Hg,   meter HF2 , inch HF2 , Atmosphere.     Function Dual & differential input, data hold, zero/relative, memory. Zero adjust Push button on the front panel. Sensor * Sensor is built inside the housing. * Piezoelectric sensor.
  • Page 5: Electrical Specifications

    2-2 Electrical Specifications Unit Max. range Resolution mbar 7000 mbar mbar 101.5 0.05/0.1 Kg/cm 2 7.135 Kg/cm 2 0.005 Kg/cm 2       mm Hg 5250 mm Hg mm Hg inch Hg 206.7 inch Hg inch Hg meter HF2  71.35 meter HF2 ...
  • Page 6: Front Panel Description

    3. FRONT PANEL DESCRIPTION Fig. 1 3-1 Display 3-7 P1 input socket 3-2 Power Off/On Button 3-8 P2 input socket 3-3 Hold Button 3-9 RS-232 Output 3-4 Zero Button Terminal 3-5 " MAX./MIN. " Button 3-10 Battery Compartment 3-6 Unit Button /Cover 3-11 PLug/ quick coupler...
  • Page 7: Measuring Procedure

    4. MEASURING PROCEDURE 1) Power on the meter by pressing the " Power Off/On Button " ( 3-2, Fig. 1 ). 2) Select the desired temperature units ( mbar, psi, Kg/cm 2   mm Hg, inch Hg, meter HF2 , inch HF2 , Atmosphere )  ...
  • Page 8 7) Data Record ( Maximum, Minimum reading ) * The DATA RECORD function displays the maximum and minimum readings. To start the DATA RECORD function, press the " MAX./MIN. Button " ( 3-5, Fig. 1 ) once. " REC " symbol will appear on the LCD display. * With the "...
  • Page 9: Auto Power Off Disable

    5. AUTO POWER OFF DISABLE The instrument has built-in " Auto Power Shut-off " in order to prolong battery life. The meter will switch off automatically if none of the buttons are pressed within 10 min. To de-activate this feature, Select the memory record function during measurement, by pressing the "...
  • Page 10: Battery Replacement

    2) Slide the Battery Cover ( 3-10, Fig. 1) away from the instrument and remove the battery. 3) Install a 9 V battery (PP3 type) and replace the cover. 0101-PM-9107...
