ASSEMBLY

Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the weight bench can be assembled suc-
cessfully by anyone. Most people find that by
setting aside plenty of time, assembly will go
smoothly.
Before beginning assembly, carefully read the
following information and instructions:
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.

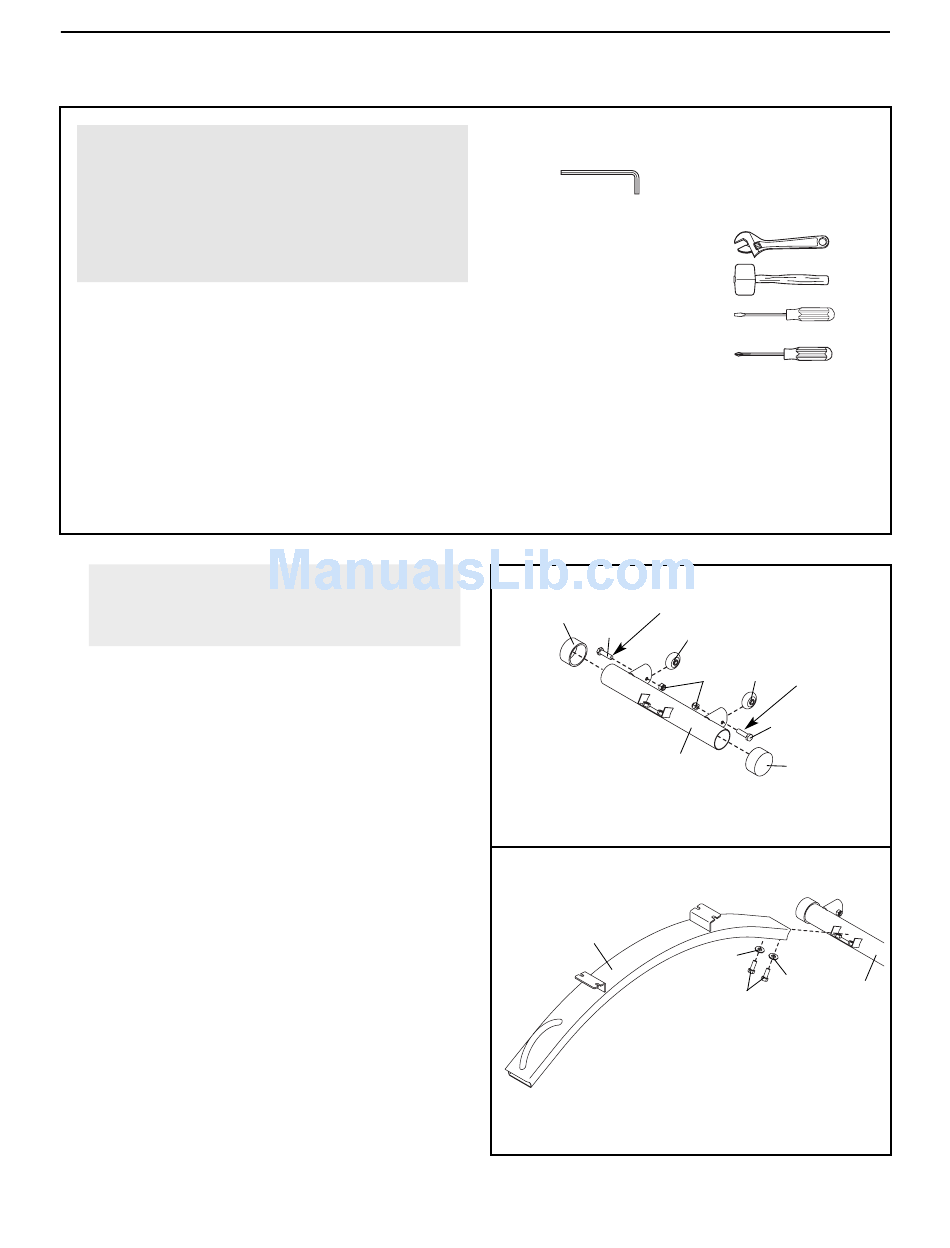

1.
Before beginning assembly, make sure that
you understand the information in the box
above.
Press two 64mm Round Outer Caps (8) onto the
Right Stabilizer (3).
Lubricate an M10 x 45mm Bolt (17) with grease.
Attach a Wheel (9) to the Right Stabilizer (3) with
the Bolt and an M10 Nylon Locknut (18). Do not
overtighten the Locknut; the Wheel must be
able to roll freely. Attach the other Wheel to
the Stabilizer in the same manner.
2. Attach the Right Stabilizer (3) to the Bench Frame
(1) with two M10 x 15mm Button Bolts (14) and
two M10 Washers (20).
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
The Allen wrench and the following tools (not
included) are required for assembly:
• Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
1
Lubricate
8
17
2
1
5
9
9
18
Lubricate
17
3
8
20
20
14
3
