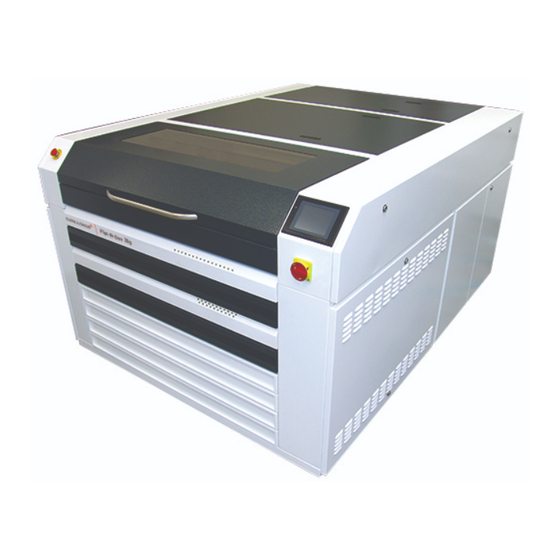

All-in-one unit for flexographic plate production

Advertisement

Pre-installation Manual
CONCEPT 205 C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Concept 205 C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Glunz & Jensen Concept 205 C

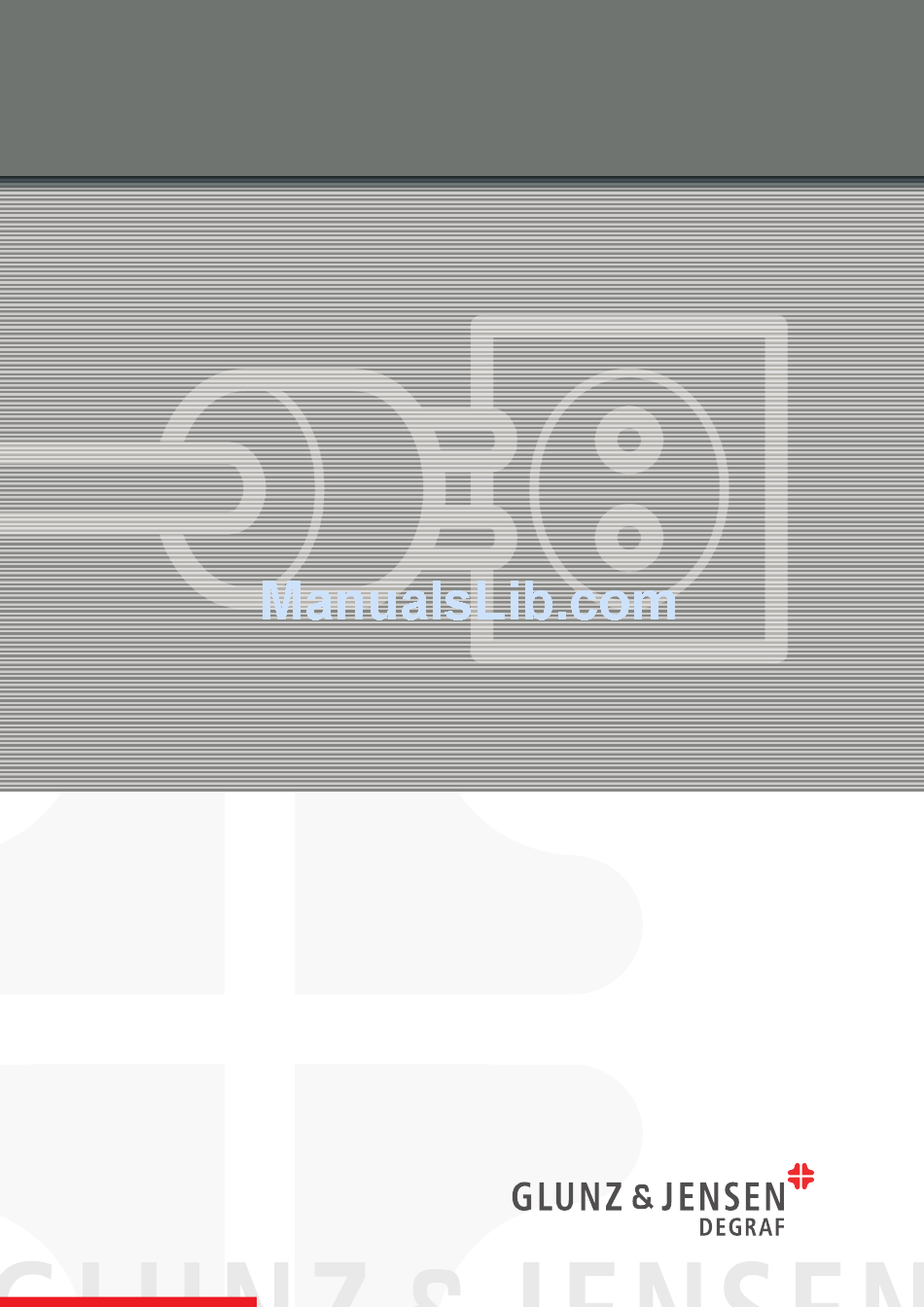

  • Page 1 Pre-installation Manual CONCEPT 205 C...
  • Page 3 Pre-installation Manual CONCEPT 205 C T11376 Edition AC, June 2014 This book has part No 10073807...
  • Page 4 This manual is published by: Glunz & Jensen Degraf S.p.A. ’Il Girasole’ - Palazzo Donatello 8/03b 20084 Lacchiarella (MI) Italy Internet: www.degraf.glunz-jensen.com Copyright © 2014 by Glunz & Jensen Degraf S.p.A. Pre-installation Manual - CONCEPT 205 C 1425...
  • Page 5: Part 0: Introduction

    The operator must observe and/or act according to the information in order to avoid any mechanical or electrical Caution damage to the equipment. The operator must observe and/or act according to the information in order to avoid any personal injury. Warning 1407 Pre-installation Manual - CONCEPT 205 C...
  • Page 6 Power consumption ..........2-6 Part 3: Pre-installation checklist ......3-1 Pre-installation Manual - CONCEPT 205 C 1407...
  • Page 7: Part 1: Transportation

    Dimensions and weight T32977 Width (W) 1870 mm (73.6") Length (L) 2470 mm (97.2") Height (H) 1550 mm (61") Weight, crated (± 5%) approx. 1260 kg (2778 lb) Weight, unit approx. 1000 kg (2205 lb) 1407 Pre-installation Manual - CONCEPT 205 C...
  • Page 8: Checking The Crate For Damage

    Handle the crate with Never expose the crate to Do not stack the crates. Do not tilt the crate. indicated by the arrows care. water, or place it in a high- is always up humidity area. Pre-installation Manual - CONCEPT 205 C 1407...
  • Page 9: Transporting The Unit

    If width of the door is… Then… > 1920 mm No action is required as the crated unit can be transported immediately to the installation site. 1920 - 1720 mm The Service Technician has to unpack the unit. 1407 Pre-installation Manual - CONCEPT 205 C...
  • Page 10 Transportation Transporting the unit Pre-installation Manual - CONCEPT 205 C 1407...
  • Page 11: Part 2: Installation Requirements

    All hoses (for compressed air, exhausts and solvent) are delivered with the machine. Installation kit Installation kit is included with the unit. It comprise the parts necessary to make the in - stallation. See Service Manual for installation part list. 1407 Pre-installation Manual - CONCEPT 205 C...
  • Page 12: Space Requirements

    The recommended minimum free space around the unit is: 1200 mm (47.2") in front of the unit, • 800 mm (31.5") on the sides and at the back of the unit. • T11377 Pre-installation Manual - CONCEPT 205 C 1407...
  • Page 13: Unit Dimensions And Connection Locations

    Unit dimensions and connection locations . " . 6 " . " l i g f i n i s h a i r a i r l v e l v e 1137 1407 Pre-installation Manual - CONCEPT 205 C...
  • Page 14 Exposure exhaust can be loud and can introduce warm air into air conditioned room. Make sure that the airflow is correct and minimum exhaust capacity is according to the table below: Dryer, min. 100 m Light finisher, min. 400 m Processor, min. 400 m Pre-installation Manual - CONCEPT 205 C 1425...
  • Page 15: Electrical Requirements

    Provide for additional cable protection, e.g. cable covers, if cable is exposed to heavier transport such as fork-lift trucks etc. The unit is Class 1 equipment. Therefore, the unit must be connected to earth to avoid electrical shocks. 1407 Pre-installation Manual - CONCEPT 205 C...
  • Page 16: Electrical Specifications

    The fuses must have a breaking capacity of min. 100kA. If using automatic circuit breakers make sure that they are Type D. Power consumption Power consumption at … 230/400 VAC operation 10,000 W Pre-installation Manual - CONCEPT 205 C 1416...
  • Page 17: Part 3: Pre-Installation Checklist

    (cables, hoses, etc.) necessary to connect the unit to the mains? D. Is there a house electrician available? E. Are there any known problems in the building where the unit will be installed? If so, explain: ....................................................................................................................................................1407 Pre-installation Manual - CONCEPT 205 C...
  • Page 18 G. Is there a solvent installation available (ø20)? H. Availability of warm water for cleaning of unit? 4. Comments and questions .................................................................................................................................... 5. Disposition of the various supplies and equipment on the installation site Pre-installation Manual - CONCEPT 205 C 1407...
