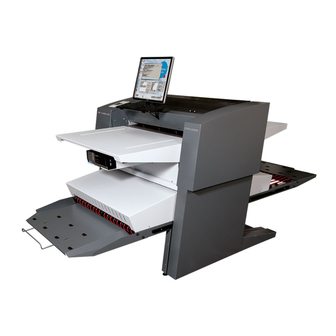

- Page 1 Pre-installation Manual PlateWriter™ 3600 Pro...
- Page 3 Pre-installation Manual PlateWriter™ 3600 Pro T11435 Edition AB, March 2016 This book has part No 10081552...
- Page 4 GLUNZ & JENSEN A/S This man ual is pub lished by: Selandia Park 1 DK-4100 Ringsted Den mark Phone:+45 57 68 81 81 E-mail: gjhq@glunz-jensen.com Internet: www.glunz-jensen.com © 2015 Glunz & Jensen A/S. All rights reserved. Pre-installation Manual - PlateWriter™ 3600 Pro 1538...
-
Page 5: Table Of Contents
Table of contents Table of contents Part 1: Introduction ..........1-1 About this manual . -
Page 6: Table Of Contents
Table of contents Pre-installation Manual - PlateWriter™ 3600 Pro 1538... -
Page 7: Part 1: Introduction
Intended use of this manual This manual describes how to prepare the installation site for the installation of the • PlateWriter 3600 Pro system. The procedures described in this manual require a reasonable level of technical skill and access to the proper tools. Reservations This manual was written and illustrated using the best possible information •... -
Page 8: Notes, Cautions, And Warnings
Introduction Important Notes, cautions, and warnings ! Through out the man ual notes, cau tions, and warn ings are writ ten in bold like the ex am ple be low: Al ways re place a fuse with one of the same size and rat ing as the old one. Symbol Meaning Explanation... -
Page 9: Part 2: When The Crates Arrive
When the crates arrive Storing the crates Part 2: When the crates arrive Storing the crates The crates containing the PlateWriter system will usually arrive some time before the arrival of the Service Technician. In such a case you should prepare an appropriate place indoors to store the crates. -
Page 10: Transporting The Crates
When the crates arrive Transporting the crates Transporting the crates Handling the crates The icons on the crates in di cate how to han dle them dur ing trans port and stor age: Ensure that the side Handle the Never expose the crate to indicated by the crate with care. -
Page 11: Part 3: Site Requirements
Site requirements General requirements Part 3: Site requirements General requirements Environmental requirements Provide a heating and ventilating system capable of maintaining room temperature between 20 and 24°C (68 and 75°F) and relative humidity between 40 and 80%. For heat emis sion see “Power con sump tion” on the page 3-6. Cleaning facilities We recommend that you have easy access to a sink and a water tap with hot water for cleaning purposes. -
Page 12: Space Requirements
Site requirements Space requirements Space requirements PlateWriter dimensions PlateWriter 3600 Pro Side view 3131 mm 2767 mm 2479 mm 1631 mm Top view T11436 Pre-installation Manual - PlateWriter™ 3600 Pro 1538... -
Page 13: Free Space Around The Platewriter
Site requirements Space requirements Free space around the PlateWriter Decide where the unit shall be placed and make sure that the free space around it makes operation and servicing possible. Be aware of the following: Liquid Dot cartridges need to be replaced on left side of the unit. •... -
Page 14: Rip Workstation
Site requirements RIP workstation RIP workstation Location The RIP workstation is placed in the bracket under the input table from the imaging unit and need to be connected using the enclosed USB-cable. Network connection If the RIP workstation is going to be connected to a local network (LAN) make sure to provide a network connection nearby. -
Page 15: Power Supply
Site requirements Power supply Power supply Electrical installation must conform to local rules and regulations. Main power connection The PlateWriter system requires three main power connections, one for the PlateWriter itself, one for the finishing unit, and one for the RIP workstation. The PlateWriter main power inlet is located at the right side of the equipment and finishing unit main power inlet is located at the left side under the equipment (see illustration below). -
Page 16: Power Outlet Requirements
Site requirements Power supply Power outlet requirements If not al ready pres ent, main power out lets should be in stalled in the room where the unit will be sit u ated. Max. dis tance to the ma chine 2 m (6 ft.). The units are Class 1 ap pli ances and must be con nected to earthed mains socket out lets. -
Page 17: Power Cables
Site requirements Power supply Power cables The equipment is delivered with the power cables required for the installation (USA only, outside USA these must be ordered separately). If, for some reason, you decide to use cables others than the supplied, make sure that they conform to the directions given below. - Page 18 Site requirements Power supply Finishing unit (USA) Equipment Power Outlet T11136 1. Ap pli ance cou pler 16A (IEC 60320) 2. Plug type NEMA L6-15P, 230V AC, 15A 3. Ca ble min. 3 x 18 AWG, type SJT or harder ser vice Finishing unit (rest of world) Equipment Power Outlet...
-
Page 19: Part 4: Pre-Installation Checklist
Pre-installation checklist Part 4: Pre-installation checklist Please ask the customer to answer the following questions in order to ensure a trouble-free installation of the processor: 1. Delivery of the crate and transport to the installation site A. Is there a place indoors where the crates box can be stored temporarily? B. - Page 20 Pre-installation checklist 3. Ventilation and ink storage A. Is air condition/ventilation system capable of maintaining room temperature between 20 and 24°C (68 and 75°F) and relative humidity between 40 and 80%? B. Is capacity of air condition/ventilation adequate with regard to BTU as specified on page 3-6? C.
