Summary of Contents for Glunz & Jensen Flex-In-One 260

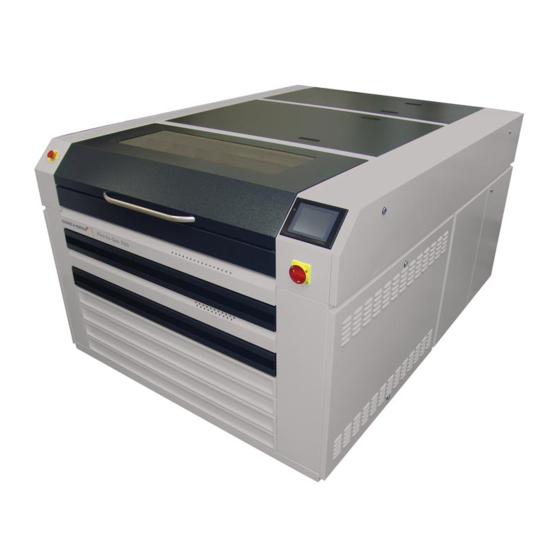

- Page 1 Pre-installation Manual Flex-In-One 260...
- Page 3 Pre-installation Manual Flex-In-One 260 T11376 Edition AA, December 2015 This book has part No 10082662...
- Page 4 Glunz & Jensen S.p.A. Via Alessandro Volta 28 20088 – Rosate (MI) – ITALY Tel.: +39 02 900 90 180 – Fax: +39 02 900 90 149 Internet: www.degraf.glunz-jensen.com Copyright © 2015 by Glunz & Jensen S.p.A. Pre-installation Manual - Flex-In-One 260 1549...
-
Page 5: Part 0: Introduction
The operator must observe and/or act according to the information in order to avoid any mechanical or electrical Caution damage to the equipment. The operator must observe and/or act according to the information in order to avoid any personal injury. Warning 1549 Pre-installation Manual - Flex-In-One 260... -
Page 6: Table Of Contents
Power consumption ..........2-6 Part 3: Pre-installation checklist ......3-1 Pre-installation Manual - Flex-In-One 260 1549... -
Page 7: Part 1: Transportation
Dimensions and weight T32977 Width (W) 1870 mm (73.6") Length (L) 2470 mm (97.2") Height (H) 1550 mm (61") Weight, crated (± 5%) approx. 1260 kg (2778 lb) Weight, equipment approx. 1000 kg (2205 lb) 1549 Pre-installation Manual - Flex-In-One 260... -
Page 8: Checking The Crate For Damage
Handle the crate with Never expose the crate to Do not stack the crates. Do not tilt the crate. indicated by the arrows care. water, or place it in a high- is always up humidity area. Pre-installation Manual - Flex-In-One 260 1549... -
Page 9: Transporting The Equipment
If width of the door is… Then… > 1920 mm No action is required as the crated equipment can be transported immediately to the installation site. 1920 - 1720 mm The Service Technician has to unpack the equipment. 1549 Pre-installation Manual - Flex-In-One 260... - Page 10 Transportation Transporting the equipment Pre-installation Manual - Flex-In-One 260 1549...
-
Page 11: Part 2: Installation Requirements
For heat emission see "Power consumption" on the page 2-5. Installation kit The installation kit is included with the equipment. It comprise all parts necessary to make the installation. See the Service Manual for installation part list. 1549 Pre-installation Manual - Flex-In-One 260... -
Page 12: Space Requirements
The recommended minimum free space around the equipment is: 1200 mm (47.2") in front of the equipment, • 800 mm (31.5") on the sides and at the back of the equipment. • T11377 Pre-installation Manual - Flex-In-One 260 1549... -
Page 13: Equipment Dimensions And Connection Locations
1137 1549 Pre-installation Manual - Flex-In-One 260... - Page 14 Exposure exhaust can be loud and can introduce warm air into air conditioned room. Make sure that the airflow is correct and minimum exhaust capacity is according to the table below: Dryer, min. 100 m 400 m Light finisher, min. Processor, min. 400 m Pre-installation Manual - Flex-In-One 260 1549...
-
Page 15: Electrical Requirements
Fuses The fuses must have a breaking capacity of min. 100kA. If using automatic circuit breakers make sure that they are Type D. Power consumption Power consumption at … 230/400 VAC operation 10,000 W 1549 Pre-installation Manual - Flex-In-One 260... - Page 16 Installation requirements Electrical requirements Pre-installation Manual - Flex-In-One 260 1549...
-
Page 17: Part 3: Pre-Installation Checklist
(cables, hoses, etc.) necessary to connect the equipment to the mains? D. Is there a house electrician available? E. Are there any known problems in the building where the equipment will be installed? If so, explain: ....................................................................................................................................................1549 Pre-installation Manual - Flex-In-One 260... - Page 18 G. Is there a solvent installation available (ø20)? H. Availability of warm water for cleaning purposes? 4. Comments and questions .................................................................................................................................... 5. Disposition of the various supplies and equipment on the installation site Pre-installation Manual - Flex-In-One 260 1549...
