QUICK START GUIDE FOR DEMONSTRATION CIRCUIT 768
15A POLYPHASE MONOLITHIC SYNCHRONOUS BUCK REGULATOR

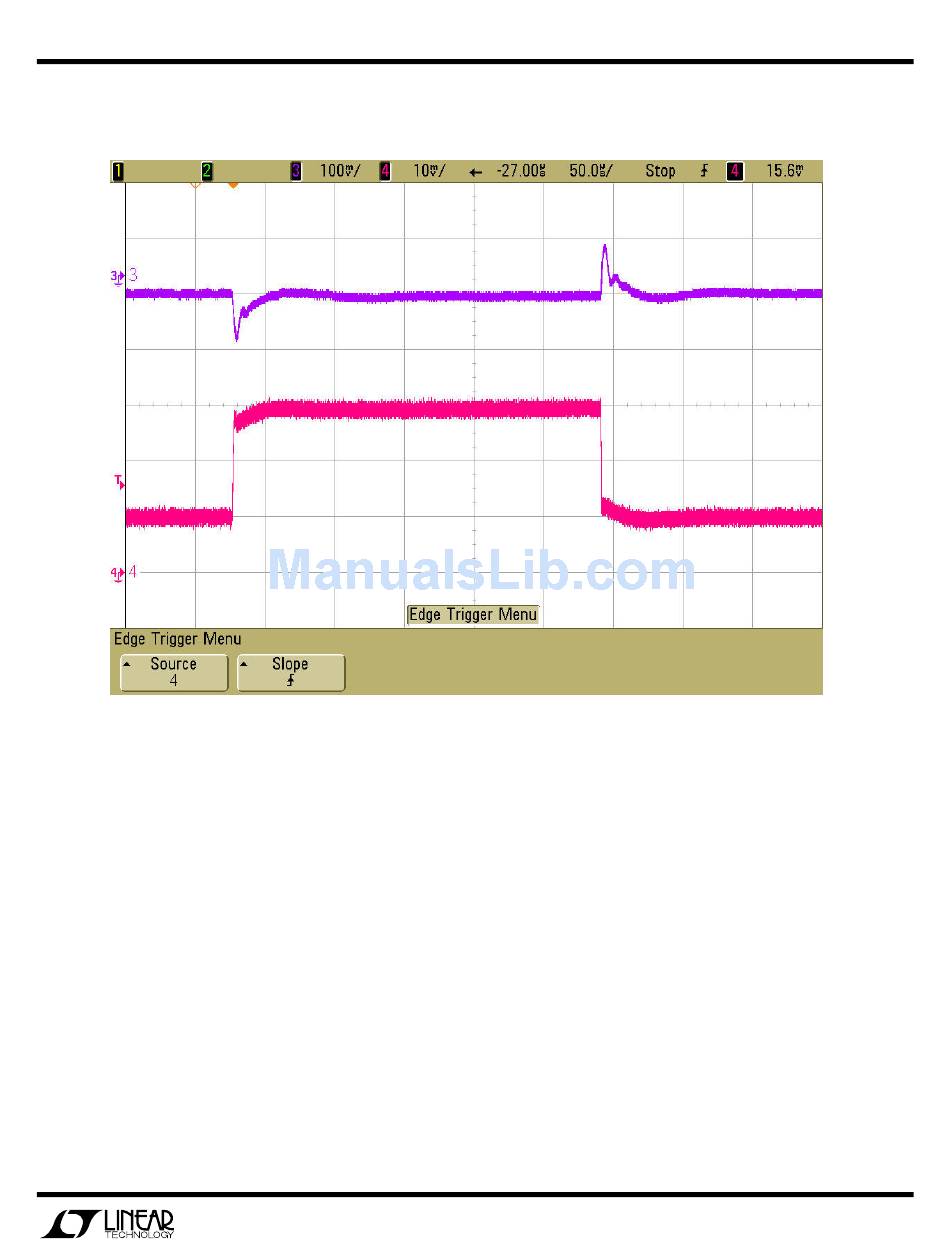

Load Step Response
Figure 3.
V
= 3.3V, V
= 1.8V & 10A Load Step
IN
OUT
Trace 1: Output Voltage (100mV/div AC)
Trace 2: Output Current (5A/div)
