Attaching Mounting Bracket To
Wall
Note: Wall anchors, mounting
screws, and spacers are in
hardware package. The hardware
package is provided with heater.
Attaching to Wall Stud Method
For attaching mounting bracket to
wall studs
1. Drill holes at marked locations
"
using 9/64 drill bit.
2. Place mounting bracket onto
wall. Line up last hole on each
end of bracket with holes drilled
in wall.
3. Insert mounting screws through
bracket and into wall studs.
4. Tighten screws until mounting
bracket is firmly fastened to
wall studs.
Attaching to Wall Anchor Method
For attaching mounting bracket to
hollow walls (wall areas between
studs) or solid walls (concrete or
masonry)
1. Drill holes at marked locations
"
using 5/16 drill bit. For solid
walls (concrete or masonry),
"
drill at least 1 deep.
2. Fold wall anchor as shown in
Figure 8 below.
Figure 8 - Folding Anchor
3. Insert wall anchor (wings
first) into hole. Tap anchor
flush to wall.
"
4. For thin walls (1/2
insert red key into wall
anchor. Push red key to
" "
pop open anchor wings
(see Figure 9).
INSTALLATION
Figure 9 - Popping Open Anchor
Wing For Thin Walls
5. Place mounting bracket onto
wall. Line up last hole on
each end of bracket with wall
anchors.
6. Insert mounting screws through
bracket and into wall anchors.
7. Tighten screws until mounting
bracket is firmly fastened to
wall.
hammer
(over 1/2
do not pop open wings.

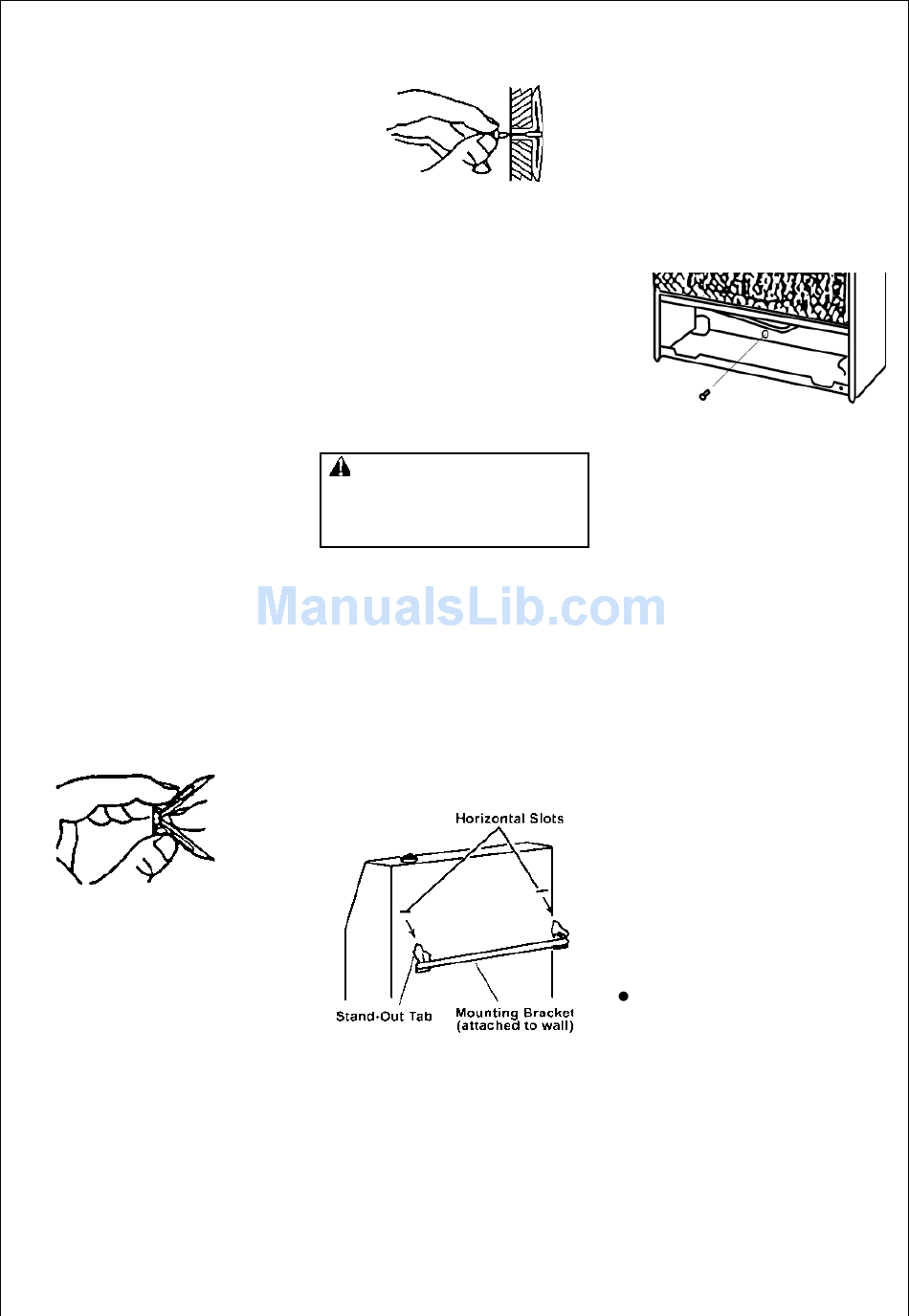

Placing Heater On Mounting
Bracket
1. Locate two horizontal slots on
back panel of heater (see
Figure 10).
2. Place heater onto mounting
bracket. Slide horizontal slots
onto
mounting bracket.
or less),
Figure 10 - Mounting Heater Onto
Mounting Bracket
IMPORTANT: Do not
key! For thick walls
"
thick) or solid walls,
stand-out tabs
8
Installing Bottom
Screw
1. Locate bottom mounting hole. This
hole is near bottom
panel of healer (see Figure 11).
2. Mark screw location on wall.
3. Remove heater from mounting
bracket.
Figure 11 - Installing Bottom
Mouting Screw
4. If installing bottom mounting
screw into hollow or solid wall,
install wall anchors. Follow steps
1 through 4
To Wall Anchor
installing bottom
screw into
holes at marked
"
using 9/64 drill bit.
5. Replace heater onto mounting
bracket.
6. Place spacers
bottom mounting
on
wall anchor or drilled holes.
7. Hold spacer in place with one
hand. With other hand, insert
mounting
bottom mounting hole and
spacer. Place tip of screw in
opening of
or drilled holes .
8. Tighten both screw until heater
i s f i r m l y s e c u r e d
wall. Do not over tighten.
Note: Do not replace lower front
panel at this time. Replace lower
front panel after making
connections and checking for
leaks(see page 9) .
