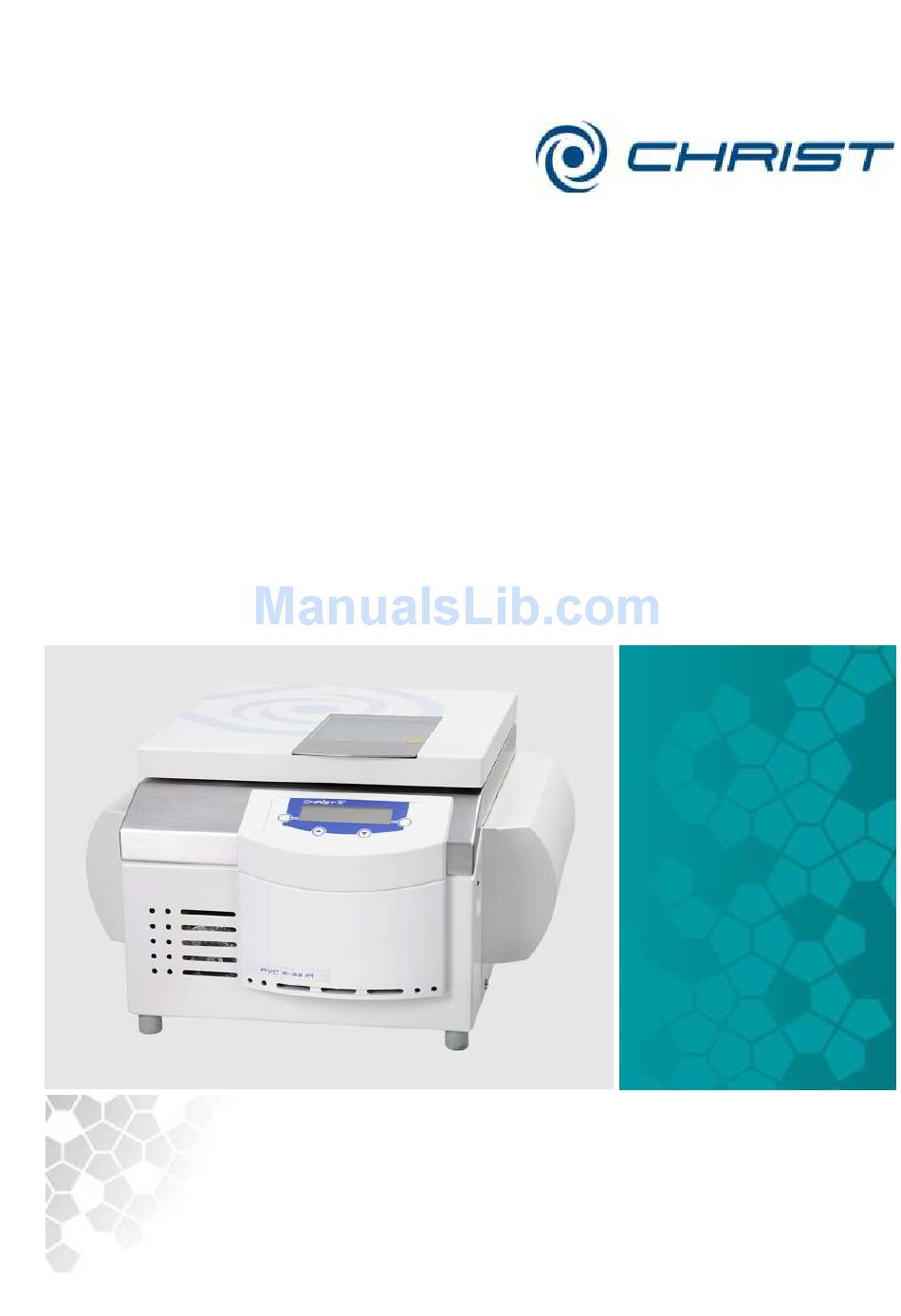

Christ RVC 2-33 CDplus Operating Manual

Rotational vacuum concentrator with infrared heating
Hide thumbs Also See for RVC 2-33 CDplus:
Table of Contents

Advertisement

Quick Links

Download this manual
Translation of the original operating manual
sb
Rev. 3.3 of 03/07/2016
RVC 2-33 CDplus; ;with infrared heating
Version 08/2009
RVC 2-33 CDplus
with infrared heating
Operating Manual
part no. 100244
Rotational Vacuum
Concentrator
Please retain for later use!
